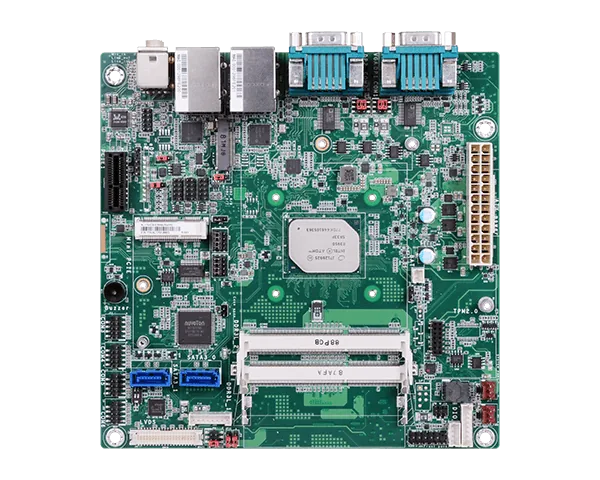

Mini-ITX, Intel Atom® E3900, 2 DDR3L, 1 M.2 M Key, 1 PCIe x1, 1 Mini PCIe, 1 VGA/DP++, 1 DP++, 1 LVDS/eDP
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| AL170-CT-E3950 | 770-AL1703-000G | Fanless, Intel Atom® E3950, 2 DDR3L SODIMM, 1 VGA, 1 LVDS, 1 DP++, 6 COM, 10 USB, ATX, -40 to 85°C |
| AL170-CT-E3940 | 770-AL1703-100G | Fanless, Intel Atom® E3940, 2 DDR3L SODIMM, 1 VGA, 1 LVDS, 1 DP++, 6 COM, 10 USB, ATX, -40 to 85°C |
| AL170-CT-E3930 | 770-AL1703-200G | Fanless, Intel Atom® E3930, 2 DDR3L SODIMM, 1 VGA, 1 LVDS, 1 DP++, 6 COM, 10 USB, ATX, -40 to 85°C |
| AL170-CB-N4200 | 770-AL1703-300G | Fanless, Intel® Pentium® N4200, 2 DDR3L SODIMM, 1 eDP, 2 DP++, 6 COM, 10 USB, ATX, 0 to 60°C |
| AL170-CB-N3350 | 770-AL1703-400G | Fanless, Intel® Celeron® N3350, 2 DDR3L SODIMM, 1 eDP, 2 DP++, 6 COM, 10 USB, ATX, 0 to 60°C |
| AL170-CB-E3940 | 770-AL1703-500G | Fanless, Intel Atom® E3940, 2 DDR3L SODIMM, 1 LVDS, 2 DP++, 6 COM, 10 USB, ATX, 0 to 60°C |
| AL170-CB-E3950 | 770-AL1703-600G | Fanless, Intel Atom® E3950, 2 DDR3L SODIMM, 1 LVDS, 2 DP++, 6 COM, 10 USB, ATX, 0 to 60°C |
| Item Name | Part Number | Description |
|---|---|---|
| USB 2.0 port cable | A81-001032-016G | Length: 200mm |
| LPC EXT-RS232 module | 770-EXTRS1-000G | 4 x RS232 ports |
| LPC EXT-RS485 module | 770-EXTRS1-100G | 4 x RS485 ports |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
