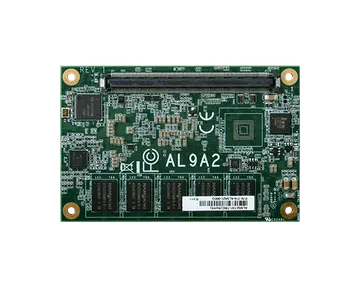

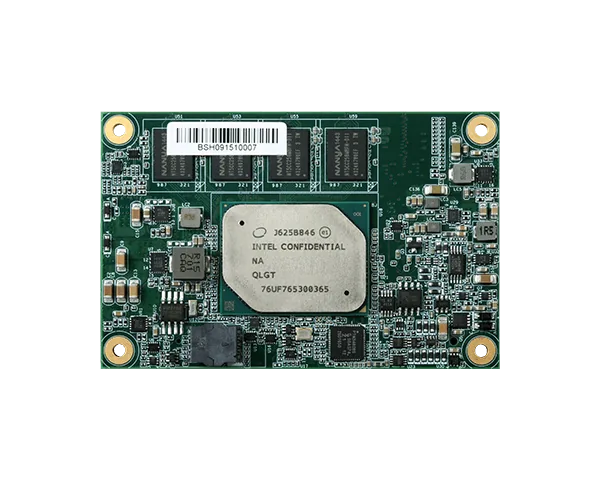

AL9A2
AL9A2, COM Express Mini with Intel Atom®/Pentium®/Celeron®, designed with Ruggedize, wide temperature, power-saving which is ideal for IoT/automation/transportation/medical applications
- Intel Atom® E3900 Processor Series
- Rich I/O: 1 Intel GbE, 2 USB 3.0, 8 USB 2.0
- Multiple expansions: 4 PCIe x1
- 1 LVDS/eDP, 1 DDI (HDMI/DVI/DP) Supports dual displays: DDI + LVDS/eDP
- Dual Channel DDR3L 1600MHz Memory Down up to 8GB
- 15-Year CPU Life Cycle Support Until Q4' 32 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#IoT
#Intel
#Fanless Design
#Compact Size
#4K2K Display
#Windows
#Linux
#HDMI
#DP
#Multiple Expansion
#DDR3L
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- Intel Atom® E3900 Processor Series
- Rich I/O: 1 Intel GbE, 2 USB 3.0, 8 USB 2.0
- Multiple expansions: 4 PCIe x1
- 1 LVDS/eDP, 1 DDI (HDMI/DVI/DP) Supports dual displays: DDI + LVDS/eDP
- Dual Channel DDR3L 1600MHz Memory Down up to 8GB
- 15-Year CPU Life Cycle Support Until Q4' 32 (Based on Intel IOTG Roadmap)
System
- Processor
- Intel Atom® Processor E3900 Series, BGA 1296 Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W
- Memory
- 4GB/8GB DDR3L Memory Down (ECC support only for 8GB) Single Channel DDR3L 1600MHz
- BIOS
- AMI SPI 128Mbit (supports UEFI boot only)
Graphics
- Controller
- Intel® HD Graphics
- Feature
- OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
- Display
- 1 x DDI (HDMI/DVI/DP) 1 x LVDS/eDP LVDS: single channel 24-bit, resolution up to 1366x768 @ 60Hz HDMI: resolution up to 3840 x 2160 @ 30Hz DP++: resolution up to 4096x2160 @ 60Hz eDP: resolution up to 3840x2160 @ 60Hz
- Dual Displays
- DDI + LVDS DDI + eDP
Expansion
- Interface
- 4 x PCIe x1 (Gen 2) 1 x SDIO (available upon request) 1 x LPC 2 x I2C 1 x SMBus 1 x SPI 2 x UART (TX/RX)
Audio
- Interface
- HD Audio
Ethernet
- Controller
- 1 x Intel® I210AT (10/100/1000Mbps) (0°C to 60°C) 1 x Intel® I210IT (10/100/1000Mbps) (-40°C to 85°C)
I/O
- USB
- 2 x USB 3.0 8 x USB 2.0
- SATA
- 2 x SATA 3.0 (up to 6Gb/s)
- eMMC
- 1 x 8GB/16GB/32GB/64GB eMMC (available upon request)
- GPIO
- 1 x 8-bit GPIO
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- 4.75V~20V, 5VSB, VCC_RTC (ATX mode) 4.75V~20V, VCC_RTC (AT mode)
- Consumption
- Typical: E3950: 12V @ 0.44A (5.28W) Max.: E3950:12V @ 1.89A (22.68W)
OS Support
- OS Support (UEFI Only)
- Windows: Windows 10 IoT Enterprise 64-bit Linux
Environment
- Temperature
- Operating: 0 to 60°C, -40 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 2,230,979 hrs @ 25°C; 1,334,511 hrs @ 45°C; 862,577 hrs @ 60°C Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- COM Express® Mini 84mm (3.30") x 55mm (2.16")
- Compliance
- PICMG COM Express® R2.1, Type 10
Standards and Certifications
- Certifications
- CE, FCC Class B, RoHS
Packing List
- Packing List
- 1 AL9A2 board 1 Heat sink: A71-008114-000G (E Series); A71-008114-010G (N Series)
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| AL9A2-T80-E3940 | 770-AL9A21-000G | Fanless, Intel Atom E3940, 1 LVDS, 1 DIO, 1 LAN, 2 USB 3.0, 8 USB 2.0, 8GB DDR3L Memory Down, -40 to 85°C |
| AL9A2-B80-E3950 | 770-AL9A21-100G | Fanless, Intel Atom E3950, 1 LVDS, 1 DIO, 1 LAN, 2 USB 3.0, 8 USB 2.0, 8GB DDR3L Memory Down, 0 to 60°C |
| AL9A2-T40-E3930 | 770-AL9A21-200G | Fanless, Intel Atom E3930, 1 LVDS, 1 DIO, 1 LAN, 2 USB 3.0, 8 USB 2.0, 4GB DDR3L Memory Down, -40 to 85°C |
| AL9A2-B40-N4200 | 770-AL9A21-300G | Fanless, Intel Pentium N4200, 1 LVDS, 1 DIO, 1 LAN, 2 USB 3.0, 8 USB 2.0, 4GB DDR3L Memory Down, 0 to 60°C |
| Item Name | Part Number | Description |
|---|---|---|
| Heat spreader | A71-808304-000G (E Series) A71-808305-000G (N Series) | |
| COM100-B carrier board kit | 770-COM104-000G |
