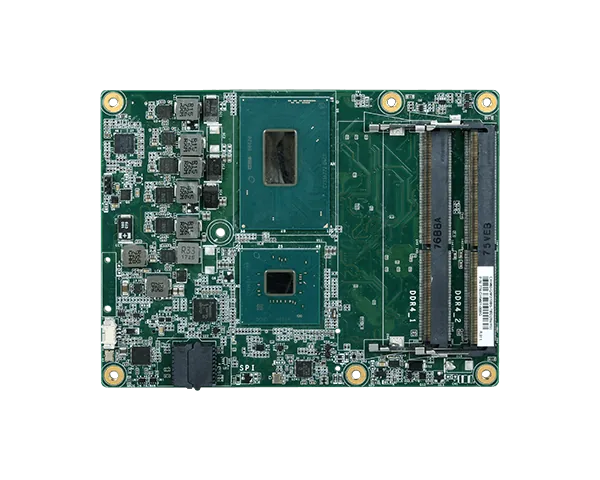

CH960-HM370
COM Express Type 6, 8th/9th Gen Intel® Core™, Intel® HM370, DDR4, 1 PCIe x16, 8 PCIe x1,12 USB, 4 SATA 3.0, 1 VGA, 1 LVDS, 2 DDI
- Dual channel DDR4 2666MHz SODIMM up to 64GB
- Four display ports: VGA*/DDI + LVDS*/eDP + 2 DDI; Supports three independent displays
- eDP resolution supports up to 4096x2304 @ 60Hz
- Multiple expansion: 1 PCIe x16, 8 PCIe x1
- Rich I/O: 1 Intel GbE, 4 USB 3.1, 8 USB 2.0
- 15-Year CPU Life Cycle Support Until Q2' 33 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#IoT
#Intel
#PCIe x16
#Windows
#Linux
#HDMI
#VGA
#DP
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- Dual channel DDR4 2666MHz SODIMM up to 64GB
- Four display ports: VGA*/DDI + LVDS*/eDP + 2 DDI; Supports three independent displays
- eDP resolution supports up to 4096x2304 @ 60Hz
- Multiple expansion: 1 PCIe x16, 8 PCIe x1
- Rich I/O: 1 Intel GbE, 4 USB 3.1, 8 USB 2.0
- 15-Year CPU Life Cycle Support Until Q2' 33 (Based on Intel IOTG Roadmap)
System
- Processor
- 8th/9th Generation Intel® CoreTM Processors, BGA 1440 Intel® Core™ i5-8400H, 4 Cores, 8M Cache, 2.5GHz (4.2GHz), 45W (HM370) Intel® Core™ i3-8100H, 4 Cores, 6M Cache, 3.0GHz, 45W (HM370) Intel® Core™ i3-9100HL, 4 Cores, 6M Cache, 1.6GHz (2.9GHz), 25W (HM370) Intel® Celeron® G5600E, 2 Cores, 4M Cache, 3.9GHz, 35W (HM370) Intel® Celeron® G4932E, 2 Cores, 2M Cache, 1.9GHz (1.9GHz), 25W (HM370)
- Chipset
- Intel® HM370 Chipset
- Memory
- Two 260-pin SODIMM up to 64GB Dual Channel DDR4 2666MHz
- BIOS
- AMI SPI 128Mbit
Graphics
- Controller
- Intel® HD Graphics
- Feature
- OpenGL up to 4.5, DirectX 11, OpenCL 2.1 HW Decode: HEVC/H.265, H.264, M/JPEG, MPEG2, VC1/WMV9, VP8 (8-bit), VP9 (10-bit) HW Encode: HEVC/H.265, M/JPEG, MPEG2, VP8
- Display
- 1 x VGA/DDI (DDI available upon request) 1 x LVDS/eDP (eDP available upon request) 2 x DDI (HDMI/DVI/DP++) VGA: resolution up to 1920x1200 @ 60Hz LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz HDMI: resolution up to 4096x2160 @ 30 24bpp DVI: resolution up to 1920x1200 @ 60Hz DP++/eDP: resolution up to 4096x2304 @ 60Hz
- Triple Displays
- VGA + LVDS + DDI or VGA + DDI 1 + DDI 2 eDP + 2 DDI (available upon request)
Expansion
- Interface
- 1 x PCIe x16 8 x PCIe x1 1 x LPC 1 x I2C 1 x SMBus 2 x UART (TX/RX)
Audio
- Interface
- HD Audio
Ethernet
- Controller
- 1 x Intel® I219LM PCIe (10/100/1000Mbps)
I/O
- USB
- 4 x USB 3.1 8 x USB 2.0
- SATA
- 4 x SATA 3.0 (up to 6Gb/s)
- DIO
- 1 x 8-bit DIO (Default 4 inputs and 4 outputs)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode)
- Consumption
- Typical: 12V @ 0.85A (13.07Watt) Max.: 12V @ 5.75A (74.084Watt)
OS Support
- OS Support
- Windows: Windows 10 IoT Enterprise 64-bit Linux
Environment
- Temperature
- Operating: 0 to 60°C, -40 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 1,360,171 hrs @ 25°C; 892,642 hrs @ 45°C; 624,277 hrs @ 60°C excluding accessories Calculation Model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Compliance
- PICMG COM Express® R2.1, Type 6
- Dimensions (W x H x D)
- COM Express® Basic 95mm (3.74") x 125mm (4.9")
Standards and Certifications
- Certifications
- CE, FCC, RoHS
Packing List
- Packing List
- 1 CH960-HM370 board 1 Cooler (Height: 36.58mm): Wide Temp: A71-111100-010G, Standard: A71-111100-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| CH960-HM370BS-8400H | 770-CH9601-400G | Cooler, Intel Core i5-8400H, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C |
| CH960-HM370BS-8100H | 770-CH9601-600G | Cooler, Intel Core i3-8100H, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C |
| CH960-HM370BS-9100HL | 770-CH9601-E00G | Cooler, Intel Core i3-9100HL, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C |
| CH960-HM370BS-G5600E | 770-CH9601-F00G | Cooler, Intel Core G5600E, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C |
| CH960-HM370BS-G4932E | 770-CH9601-H00G | Cooler, Intel Core G4932E, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C |
| Item Name | Part Number | Description |
|---|---|---|
| COM332-B carrier board kit | 770-CM3321-000G | |
| Heat spreader | A71-808316-000G | Height: 11mm |
