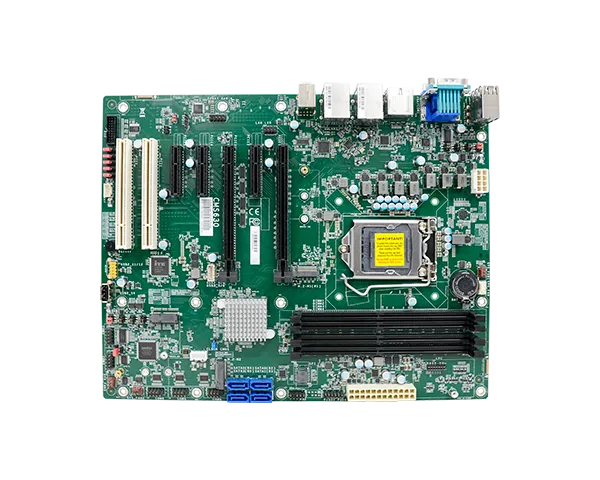

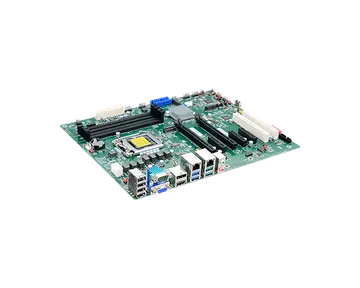

CMS630-W480E/Q470E
ATX, 10th Gen Intel® Core™, 4 DDR4 UDIMM, 1 PCIe x16, 2 PCIe x4, 1 PCIe x1, 2 PCI, 2 M.2 M key, 1 VGA, 1 HDMI, 1 DP++
- 10th Gen Intel® Core Processors
- 4 DDR4 UDIMM up to 128GB
- Triple Displays: VGA + DP++ + HDMI
- Supports 4K/ 2K resolution
- Multiple Expansion: 1 PCIe x16, 2 PCIe x4, 1 PCIe x1, 2 PCI, 2 M.2 M key
- Rich I/O: 2 Intel GbE, 4 USB 3.2 Gen2, 2 USB 3.2 Gen1, 6 USB 2.0
- 10-Year CPU Life Cycle Support Until Q2' 30 (Based on Intel IOTG Roadmap)
- Support EXT-OOB (Lite)
Főbb jellemzők
Tanúsítványok
#EXT-OOB (Lite)
#IoT
#Intel
#PCIe x16
#Windows
#Linux
#HDMI
#VGA
#DP
#DDR4
#RoHS Certification
#UL Certification
#CE Certification
#FCC Certification
#KC Certification
#10th Gen Intel® Comet Lake Processor
#Legacy ISA/PCI Expansion Port
#UKCA Certification
Főbb jellemzőkKey features
- 10th Gen Intel® Core Processors
- 4 DDR4 UDIMM up to 128GB
- Triple Displays: VGA + DP++ + HDMI
- Supports 4K/ 2K resolution
- Multiple Expansion: 1 PCIe x16, 2 PCIe x4, 1 PCIe x1, 2 PCI, 2 M.2 M key
- Rich I/O: 2 Intel GbE, 4 USB 3.2 Gen2, 2 USB 3.2 Gen1, 6 USB 2.0
- 10-Year CPU Life Cycle Support Until Q2' 30 (Based on Intel IOTG Roadmap)
- Support EXT-OOB (Lite)
System
- Processor
- [CMS630-W480E] 10th Gen Intel® LGA 1200 Socket Processors, TDP support up to 125W [CMS630-W480E] Intel® Xeon® W-1290E (10 Cores, 20M Cache, up to 4.8 GHz); 95W (ECC support on W480E SKU only) [CMS630-W480E] Intel® Xeon® W-1290TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W (ECC support on W480E SKU only) [CMS630-W480E] Intel® Xeon® W-1270E (8 Cores, 16M Cache, up to 4.8 GHz); 80W (ECC support on W480E SKU only) [CMS630-W480E] Intel® Xeon® W-1270TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W (ECC support on W480E SKU only) [CMS630-W480E] Intel® Xeon® W-1250E (6 Cores, 12M Cache, up to 4.7 GHz); 80W (ECC support on W480E SKU only) [CMS630-W480E] Intel® Xeon® W-1250TE (6 Cores, 12M Cache, up to 3.8 GHz); 35W (ECC support on W480E SKU only) [CMS630-W480E] Intel® Core™ i9-10900E (10 Cores, 20M Cache, up to 4.7 GHz); 65W [CMS630-W480E] Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W [CMS630-W480E] Intel® Core™ i7-10700E (8 Cores, 16M Cache, up to 4.5 GHz); 65W [CMS630-W480E] Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W [CMS630-W480E] Intel® Core™ i5-10500E (6 Cores, 12M Cache, up to 4.2 GHz); 65W [CMS630-W480E] Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 3.7 GHz); 35W [CMS630-W480E] Intel® Core™ i3-10100E (4 Cores, 6M Cache, 3.8 GHz); 65W (ECC support on W480E SKU only) [CMS630-W480E] Intel® Core™ i3-10100TE (4 Cores, 6M Cache, to 3.6 GHz); 35W (ECC support on W480E SKU only) [CMS630-Q470E] 10th Gen Intel® LGA 1200 Socket Processors, TDP support up to 125W [CMS630-Q470E] Intel® Core™ i9-10900E (10 Cores, 20M Cache, up to 4.7 GHz); 65W [CMS630-Q470E] Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W [CMS630-Q470E] Intel® Core™ i7-10700E (8 Cores, 16M Cache, up to 4.5 GHz); 65W [CMS630-Q470E] Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W [CMS630-Q470E] Intel® Core™ i5-10500E (6 Cores, 12M Cache, up to 4.2 GHz); 65W [CMS630-Q470E] Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 3.7 GHz); 35W [CMS630-Q470E] Intel® Pentium® G6400E (2 Cores, 4M Cache, 3.8 GHz); 58W (Q470E SKU only) [CMS630-Q470E] Intel® Celeron® G5900E (2 Cores, 2M Cache, 3.2 GHz); 58W (Q470E SKU only) [CMS630-Q470E] Intel® Celeron® G5900TE (2 Cores, 2M Cache, 3.0 GHz); 35W (Q470E SKU only)
- Chipset
- [CMS630-W480E] Intel® W480E Chipset [CMS630-Q470E] Intel® Q470E Chipset
- Memory
- [CMS630-W480E] Four 288-pin Non-ECC UDIMM up to 128GB (Core™ i5/i7 only support non-ECC) [CMS630-W480E] Dual Channel DDR4 2400/2666/2933MHz [CMS630-W480E] (ECC/Non-ECC) [CMS630-Q470E] Four 288-pin Non-ECC UDIMM up to 128GB (Core™ i5/i7 only support non-ECC) [CMS630-Q470E] Dual Channel DDR4 2400/2666/2933MHz [CMS630-Q470E] (Non-ECC)
- BIOS
- Insyde SPI 128Mbit
Graphics
- Controller
- Intel® HD Gen 9 Graphics
- Feature
- OpenGL 4.5, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
- Display
- 1 x VGA, resolution up to 1920x1200 @ 60Hz 1 x DP++, resolution up to 4096x2160 @ 60Hz 1 x HDMI 1.4b, resolution up to 4096x2160 @ 24Hz
- Triple Displays
- VGA + DP++ + HDMI
Expansion
- Interface
- 2 x PCIe x16 (Gen 3) (1 x16 signal or 2 x8 signal) 3 x PCIe x4 (Gen 3) (2 x4 signal and 1 x1 signal) 2 x PCI 1 x M.2 2242/2260/2280 M key (PCIe Gen3 x4 NVMe/SATA/Intel® Optane Memory and intel RST support) 1 x M.2 2242/2260/2280 M key (PCIe Gen3 x4 NVMe/Intel® Optane Memory and intel RST support) 1 x M.2 2230 E key (USB 2.0/PCIe x1 shared with PCIe x1 slot, opt., MOQ required)
Audio
- Audio Codec
- Realtek ALC888
Ethernet
- Controller
- 1 x Intel® I210AT PCIe (10/100/1000Mbps) 1 x Intel® I219LM PHY with iAMT12.0 (10/100/1000Mbps) (only Xeon, Core i9/ i7/i5 supports iAMT)

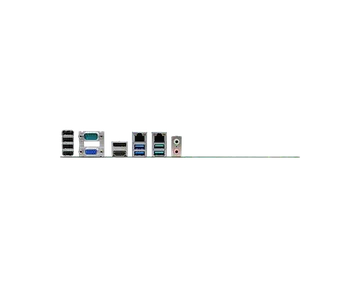

Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- Serial
- 1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
- USB
- 2 x USB 3.2 Gen2 2 x USB 3.2 Gen1 4 x USB 2.0
- Display
- 1 x VGA 1 x DP++ 1 x HDMI
- Audio
- 1 x Line-out, 1 x Mic-in, 1 x Line-in (opt., MOQ required)
Internal I/O
- Serial
- 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch) 4 x RS-232 (2.54mm pitch)
- USB
- 2 x USB 3.2 Gen 2 (Key B 20-pin) 2 x USB 2.0 (2.54mm pitch, Colay vertical Type A, opt.: MOQ required) 1 x USB 2.0 Vertical Type A
- Audio
- 1 x Front Audio Header 1 x S/PDIF
- SATA
- 4 x SATA 3.0 (up to 6Gb/s, SATA 3) RAID 0/1/5/10
- DIO
- 1 x 16-bit DIO
- LPC
- 1 x LPC (supports LPC EXT-RS232/RS485 module)
- SMBus
- 1 x SMBus
- PS/2
- 1 x PS/2 (mini-DIN-6)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Infineon TPM2.0 (opt., MOQ required)
Power
- Type
- ATX
- Connector
- 8-pin ATX 12V power 24-pin ATX power
- Consumption
- Typical: i9-10900K: 3.3V @ 0.17A (0.56W); 5V @ 0.74A (3.7W); 12V @ 0.41A (4.92W) Max.: i9-10900K:3.3V @ 0.21A (0.69W); 5V @ 1.73A (8.65W); 12V @ 12.48A (149.76W)
- RTC Battery
- CR2032 Coin Cell
OS Support
- Microsoft
- Windows 10 IoT Enterprise 64-bit Windows Server 2019 (opt. only support Intel® i210)
- Linux
- Linux
Environment
- Temperature
- Operating: -5 to 65°C Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
- Humidity
- Operating: 5 to 95% RH Storage: 5 to 95% RH
- MTBF
- 492,929 hrs @ 25°C ; 274,924 hrs @ 45°C ; 171,243 hrs @ 60°C Calculation Model: Telcordia Issue 4 Environment: GB, GC - Ground Benign, Controlled
Mechanism
- Dimensions
- ATX Form Factor 305mm (12") x 244mm (9.6")
- Height
- PCB: 1.6mm Top Side: 33.3mm, Bottom Side: 4mm
Standards and Certifications
- Certifications
- CE, FCC Class B, RoHS, UKCA, KC, UL
Packing List
- Packing List
- 1 CMS630 motherboard 1 COM port cables (Length: 300mm, 2 x COM ports) A81-015026-023G 1 Serial ATA data cable (Length: 500mm) 332-553001-005G 1 I/O shield A49-CMS630-000G 1 M.2 screw/standoff A32-112016-041G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| CMS630-W480ECRM | 770-CMS6303-000G | 4 DDR4 UDIMM, 2 GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 2 USB 3.2 Gen1, 7 USB 2.0, Power 24-pin ATX/8-pin ATX 12V, -5 to 65°C |
| CMS630-Q470ECRM | 770-CMS6303-100G | 4 DDR4 UDIMM, 2 GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 2 USB 3.2 Gen1, 7 USB 2.0, Power 24-pin ATX/8-pin ATX 12V, -5 to 65°C |
| CMS630-W480ECRM | 770-CMS6303-200G | 4 DDR4 UDIMM, 2 GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 2 USB 3.2 Gen1, 7 USB 2.0, 1 TPM 2.0, Power 24-pin ATX/8-pin ATX 12V, -5 to 65°C |
| CMS630-Q470ECRM | 770-CMS6303-300G | 4 DDR4 UDIMM, 2 GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 2 USB 3.2 Gen1, 7 USB 2.0, 1 TPM 2.0, Power 24-pin ATX/8-pin ATX 12V, -5 to 65°C |
| Item Name | Part Number | Description |
|---|---|---|
| USB 2.0 port cable | A81-001066-016G | Length: 350/398mm |
| USB3.2 Gen2 port cable | A81-001075-017G | Length: 300mm |
| COM port cable | A81-015026-023G | Length: 300mm, 2 x COM ports |
| Serial ATA data cable | 332-553001-005G | Length: 500mm, W/LOCK |
| Thermal solution | A71-101107-000G A71-101158-000G A71-101143-000G | For 35W, Height: 37.3mm For 65W, Height: 74.47mm For 95W, Height: 76.6mm |
| DP to HDMI Dongle | 612-D2H13M-000G | |
| PS2 KB/MS Cable | 332-353016-009G | Length: 400mm |
| EXT-RS232 | 770-EXTRS1-000G | 4 ports RS-232 LPC module |
| EXT-RS485 | 770-EXTRS1-100G | 4 ports RS-485 LPC module |
| M.2-COM4 | 770-M2COM1-000G | M.2 serial port module |
| M.2-2LAN | 770-M22LN2-000G | M.2 LAN port module |
| M.2-2PSE | 770-M22PS1-000G | M.2 PSE module |
