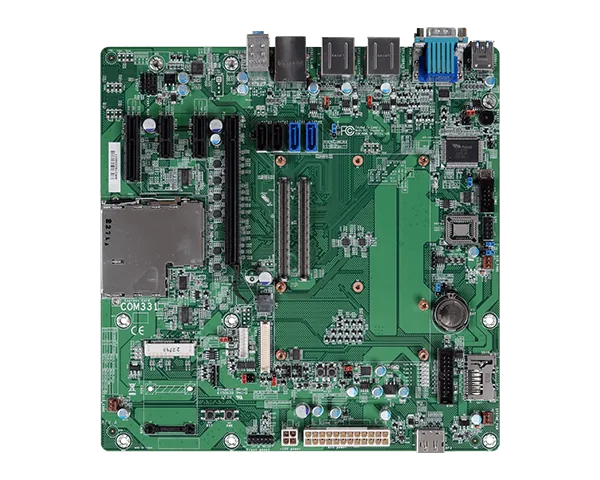

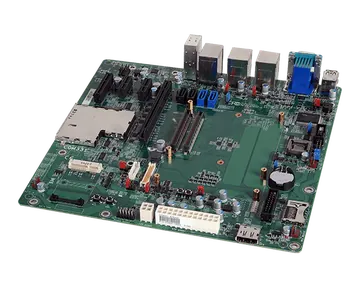

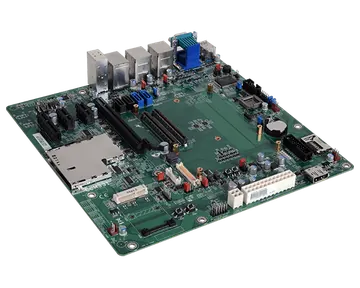

COM331-B
microATX, COMe Basic/Compact Modules, 1 PCIe x16, 1 Lan, 4 USB 3.0, 4 USB 2.0, 4 SATA, 1 LVDS, 1 VGA
- COM Express® R2.0, Pin-out Type 6
- Supports Compact/Basic modules
- Multiple displays: 1 LVDS, 1 VGA, 2 DP
- Rich I/O: 1 GbE, 4 USB 3.0, 4 USB 2.0, 4 COM
- microATX form factor
Főbb jellemzők
Tanúsítványok
#Mini PCIe
#1G Ethernet
#PCIe x16
#VGA
#DP
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- COM Express® R2.0, Pin-out Type 6
- Supports Compact/Basic modules
- Multiple displays: 1 LVDS, 1 VGA, 2 DP
- Rich I/O: 1 GbE, 4 USB 3.0, 4 USB 2.0, 4 COM
- microATX form factor
Graphics
- Display
- 1 x VGA 1 x LVDS 3 x DP
Expansion
- Interface
- 1 x PCIe x16 (Gen 3) 1 x PCIe x4 (Gen 2) 2 PCIe x 1 1 x Full-size Mini PCIe
Audio
- Audio Codec
- Realtek ALC886

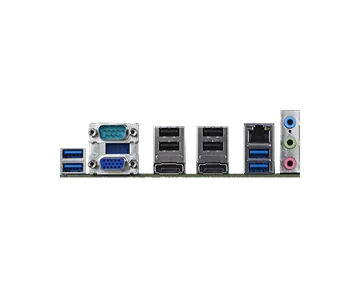

Rear I/O
- Ethernet
- 1 x GbE (RJ-45)
- Serial
- 1 x RS232 serial ports 1 x RS232 Serial Interface Connector 2 x Serial Interface Connector (TX/RX)
- USB
- 4 x USB 3.0 4 x USB 2.0
- Display
- 1 x VGA 2 x DP
- Audio
- 1 x Line-in 1 x Line-out 1 x Mic-in
Internal I/O
- Serial
- 1 x RS232 Serial Interface Connector 2 x Serial Interface Connector (TX/RX)
- Display
- 1 x VGA (2.54mm) 1 x LVDS LCD Panel Connector 1 x DP
- Audio
- 1 x Audio (Line-out/Mic-in) 1 x S/PDIF
- SATA
- 2 x SATA 3.0 (up to 6Gb/s) 2 x SATA 2.0 (up to 3Gb/s)
- DIO
- 1 x 8-bit DIO 1 x SDIO slot
- LPC
- 1 x LPC
- SMBus
- 1 x SMBus
- I2C
- 1 x I2C
Power
- Type
- 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode)
- Connector
- 4-pin ATX 12V power 24-pin ATX power
Environment
- Temperature
- Operating: 0 to 60°C Storage: -20 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 605684 hrs @ 25°C; 352242 hrs @ 45°C; 222850 hrs @ 60°C Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- microATX Form Factor 244mm (9.6") x 244mm (9.6")
- Compliance
- PICMG COM Express® R2.0, Type 6 Basic, Compact Modules
Standards and Certifications
- Certifications
- CE, FCC Class B, RoHS
Packing List
- Packing List
- 1 COM331-B board 2 Serial ATA data cables 1 COM port cable (with bracket)
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Item Name | Part Number | Description |
|---|---|---|
| Serial ATA data cable | 332-553001-005G | |
| COM port cable | 332-700730-404G | |
| I/O shield | A49-COM331-010G |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
