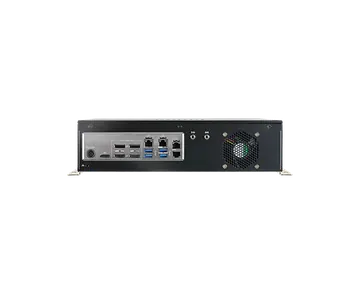

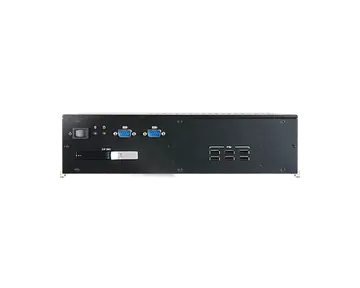

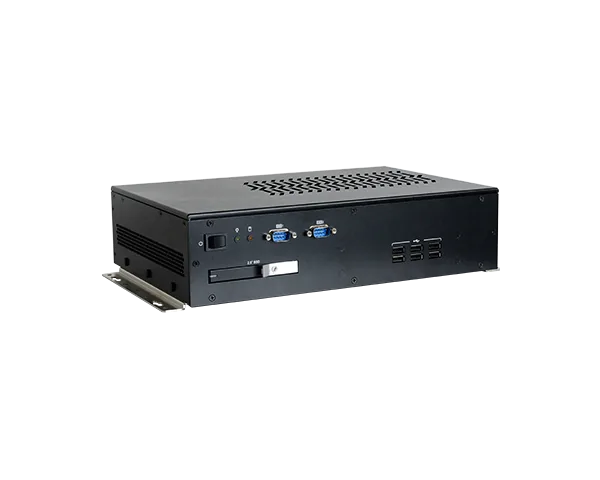

DT200-CS is the 5G and MXM-module support industrial pc powered by 8th/9th Intel® Processors. It is designed for AI Vision applications such as automated optical inspection (AOI) and vision-guided robotics in factory, high-res diagnostic imaging in medical, traffic flow analysis in transportation, and more. DT200-CS support 8th/9th Gen Intel® Core, DDR4, 3 M.2, 1 DP++, 4 DP.
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| DT200-CSH310 | 750-DT2000-000G | MB CS181-H310 with 4 DP, 1 DP++, 10 USB, 4 LAN, 2 COM, 6 SMA, 1 Line-out, 1 Mic-in, and MXM slot DC-in 19V |
| DT200-CSQ370 | 750-DT2000-100G | MB CS181-Q370 with 4 DP, 1 DP++, 10 USB, 4 LAN, 2 COM, 6 SMA, 1 Line-out, 1 Mic-in, and MXM slot DC-in 19V |
| Item Name | Part Number | Description |
|---|---|---|
| CPU cooler | A71-103004-000G A71-103005-000G | For 35W CPU at height: 37.3mm For 65W CPU at height: 45.3mm |
| MXM Quadro T1000 | 612-M3T100-100G | 50W, 896 CUDA Cores, 2.6 TFLOPS, 0~55°C |
| MXM Quadro RTX3000 | 612-M3T300-000G | 80W, 1290 CUDA Cores, 5.4 TFLOPS, 0~55°C |
| Fan Power Y-cable for MXM RTX3000 | A81-009614-016G | 1*3P/2.5mm to 1*3P/2.54mm to 1*4P/1.25mm, L=50mm |
| MXM Cooler | A71-110100-000G TBD | MXM cooler for RTX3000 87x106.35x34mm MXM cooler for T1000 73x60x32.1mm |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
