DFI Networker Kft.

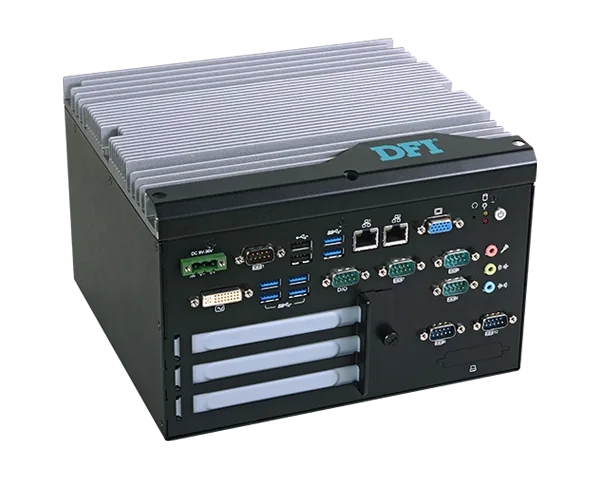

EC532-DL

The EC532-DL, equipped with 3 expansion slots, is a standard model of DFI's modular-designed embedded systems - EC500 Series. The EC500 Series, a complete product line of unparalleled compact-sized embedded systems, is based on the 4th Generation Intel® Core™ and server-grade Intel® Xeon® processors. These systems support 9~36V wide voltage and offer superior innovative modular-concept design and the configurations are unlimited due to low-cost OEM I/O modules. Thanks to the superior performance, compact size, and excellent designs, EC500 Series are the right solutions for all kinds of industrial applications in the embedded markets.

  • Intel® Xeon® Modular-Designed System
  • Supports DDR3 SODIMM up to 16GB
  • 2x 2.5" SATA drive bays
  • 3 expansion slots: 2 PCIe x16 + 1 PCI
  • 1 Vertical USB for securing data from unauthorized access
  • 7-Year CPU Life Cycle Support Until Q2' 19 (Based on Intel IOTG Roadmap)
KifutóEnd of life EC532-DL Embedded Solution Powered by: DFI Proprietary Motherboard
Wide Voltage: 9~36V DC-in
Fanless Design
VGA
Multiple Expansion
DDR3
RoHS Certification
CE Certification
FCC Certification
#Intel #Mini PCIe #Fanless Design #PCIe x16 #Windows #Linux #DVI-I #VGA #Multiple Expansion #DDR3 #RoHS Certification #CE Certification #FCC Certification

Főbb jellemzőkKey features

  • Intel® Xeon® Modular-Designed System
  • Supports DDR3 SODIMM up to 16GB
  • 2x 2.5" SATA drive bays
  • 3 expansion slots: 2 PCIe x16 + 1 PCI
  • 1 Vertical USB for securing data from unauthorized access
  • 7-Year CPU Life Cycle Support Until Q2' 19 (Based on Intel IOTG Roadmap)

Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
