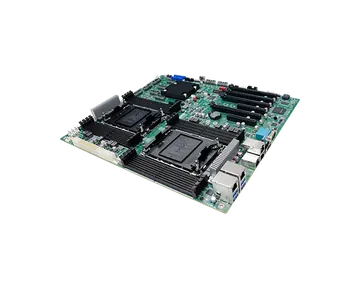

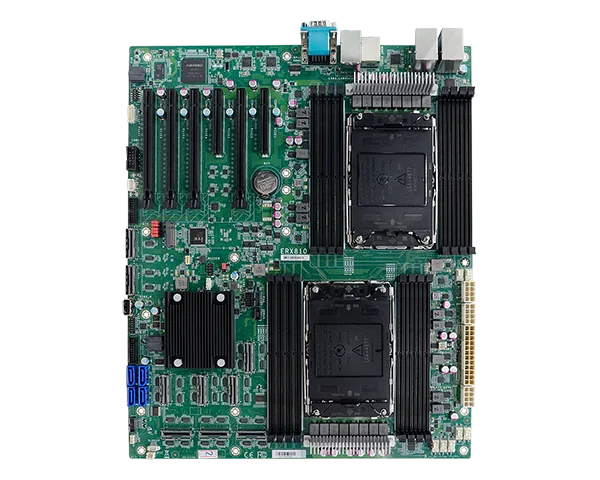

ERX810-C741
5th/4th Gen Intel® Xeon® Scalable Family, 16 DDR5, 4 PCIe x16, 2 PCIe x8, 1 M.2 M Key, 4 Intel® GbE, 2 COM, 4 SATA 3.0, 6 USB 3.2 Gen1, 2 USB 2.0, 1 Vertical USB 2.0, 1 DP, Intel® C741 Chipset
- 5th/4th Gen Intel® Xeon® Scalable Family
- 16 DDR5 ECC-RDIMM up to 2048GB
- IPMI/Redfish OOB Remote Management
- Single Display: DP
- Multiple Expansion: 4 PCIe x16 (Gen 5), 2 PCIe x8 (Gen5), 1 M.2 M key 2280
- Rich I/O: 4 Intel® GbE, 1 Dedicated IPMI, 2 COM, 4 SATA 3.0, 6 USB 3.2 Gen1, 2 USB 2.0, 1 Vertical USB 2.0
Tanúsítványok
#DDR5
#M.2
#4th Gen Intel Xeon Scalable Family
#5th Gen Intel Xeon Scalable Family
#PMBUS
#Out-Of-Band (OOB)
#Server Boards
#Intel
#1G Ethernet
#PCIe x16
#DP
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
#UKCA Certification
Főbb jellemzőkKey features
- 5th/4th Gen Intel® Xeon® Scalable Family
- 16 DDR5 ECC-RDIMM up to 2048GB
- IPMI/Redfish OOB Remote Management
- Single Display: DP
- Multiple Expansion: 4 PCIe x16 (Gen 5), 2 PCIe x8 (Gen5), 1 M.2 M key 2280
- Rich I/O: 4 Intel® GbE, 1 Dedicated IPMI, 2 COM, 4 SATA 3.0, 6 USB 3.2 Gen1, 2 USB 2.0, 1 Vertical USB 2.0
System
- Processor
- 5th Generation Intel® Xeon® Scalable Processor Family, LGA 4677 Socket, TDP upto 270W: Intel® Xeon® Gold 6548Y+ Processor (32 Cores, 60 MB Cache, up to 4.1 GHz); 250W Intel® Xeon® Gold 6548N Processor (32 Cores, 60 MB Cache, up to 4.1 GHz); 250W Intel® Xeon® Gold 6538N Processor (32 Cores, 60 MB Cache, up to 4.1 GHz); 205W Intel® Xeon® Gold 6530 Processor (32 Cores, 160 MB Cache, up to 4 GHz); 270W Intel® Xeon® Gold 6526Y Processor (16 Cores, 37.5 MB Cache, up to 3.9 GHz); 195W Intel® Xeon® Gold 5520+ Processor (28 Cores, 52.5 MB Cache, up to 4 GHz); 205W Intel® Xeon® Gold 5515+ Processor (8 Cores, 22.5 MB Cache, up to 4.1 GHz); 165W Intel® Xeon® Silver 4516Y+ Processor (24 Cores, 45 MB Cache, up to 3.7 GHz); 185W Intel® Xeon® Silver 4514Y Processor (16 Cores, 30 MB Cache, up to 3.4 GHz); 150W Intel® Xeon® Silver 4510 Processor (12 Cores, 30 MB Cache, up to 4.1 GHz); 150W Intel® Xeon® Silver 4510T Processor (12 Cores, 30 MB Cache, up to 3.7 GHz); 115W Intel® Xeon® Silver 4509Y Processor (8 Cores, 22.5 MB Cache, up to 4.1 GHz); 125W 4th Generation Intel® Xeon® Scalable Processor Family, LGA 4677 Socket, TDP upto 270W: Intel® Xeon® Gold 6448Y Processor (32 Cores, 60 MB Cache, up to 4.10 GHz); 225W Intel® Xeon® Gold 6438N Processor (32 Cores, 60 MB Cache, up to 3.60 GHz); 205W Intel® Xeon® Gold 6430 Processor (32 Cores, 60 MB Cache, up to 3.40 GHz); 270W Intel® Xeon® Gold 6428N Processor (32 Cores, 60 MB Cache, up to 3.80 GHz); 185W Intel® Xeon® Gold 6426Y Processor (16 Cores, 37.5 MB Cache, up to 4.10 GHz); 185W Intel® Xeon® Gold 6418H Processor (24 Cores, 60 MB Cache, up to 4.00 GHz); 185W Intel® Xeon® Gold 5420+ Processor (28 Cores, 52.5 MB Cache, up to 4.10 GHz); 205W Intel® Xeon® Gold 5418N Processor (24 Cores, 45 MB Cache, up to 3.80 GHz); 165W Intel® Xeon® Gold 5418Y Processor (24 Cores, 45 MB Cache, up to 3.80 GHz); 185W Intel® Xeon® Gold 5415+ Processor (8 Cores, 22.5 MB Cache, up to 4.10 GHz); 150W Intel® Xeon® Silver 4416+ Processor (20 Cores, 37.5 MB Cache, up to 3.90 GHz); 165W Intel® Xeon® Silver 4410T Processor (10 Cores, 26.25 MB Cache, up to 4.00 GHz); 150W Intel® Xeon® Silver 4410Y Processor (12 Cores, 30 MB Cache, up to 3.90 GHz); 150W
- Chipset
- Intel® C741 Chipset
- Memory
- 16 x ECC-RDIMM up to 2048GB DDR5 Max. 5600MHz
- BIOS
- Insyde
Graphics
- Controller
- BMC AST2600
- Display
- 1 x DP
- Single Display
- DP
Expansion
- Interface
- 4 x PCIe x16 (Gen 5) 2 x PCIe x8 (Gen5) 1 x M.2 M key 2280
Audio
- Audio Codec
- ALC888S
Ethernet
- Controller
- 4 x Intel® I210 IPMI: RTL8211F

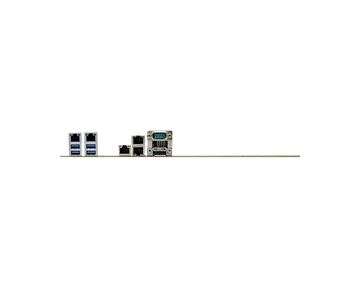

Rear I/O
- Ethernet
- 4 x GbE 1 x Dedicated IPMI LAN
- Serial
- 1 x RS-232/422/485 (DB-9)
- USB
- 4 x USB 3.2 Gen1
- PS/2
- 1 x PS/2
- Display
- 1 x DP
Internal I/O
- Serial
- 1 x RS-232/422/485
- USB
- 2 x USB 3.2 Gen1 2 x USB 2.0 1 x Vertical USB 2.0
- Audio
- 1 x Front Audio
- SATA
- 4 x SATA 3.0 RAID 0/1/5/10
- DIO
- 16-bit DIO
- LPC
- 1 x LPC
- MCIO
- 2 x MCIO
- PMBUS
- 1 x PMBUS
Security
- TPM
- TPM 2.0
Power
- Type
- ATX
Environment
- Temperature
- Operating: 0 to 45°C
Mechanism
- Dimensions
- 305 x 365 mm
- Height
- PCB: TBD Top Side: TBD Bottom Side: TBD
Standards and Certifications
- Certifications
- CE, FCC, RoHS, UKCA
Packing List
- Packing List
- • ERX810-C741 Motherboard, 770-ERX8101-000G • 1 M.2 screw, A32-112016-041G • 1 M.2 standoff, A33-725019-090G • 1 IO Shield, A49-ERX810-000G • 1 Serial ATA data cable (Length: 500mm), 332-553001-005G • 2 COOLER CARRIER, A51-099027-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Item Name | Part Number | Description |
|---|---|---|
| CPU COOLER | A71-101164-000G | LGA 4677 118*82*106mm |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
