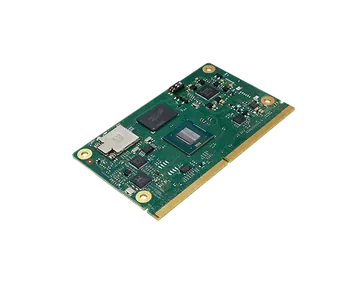

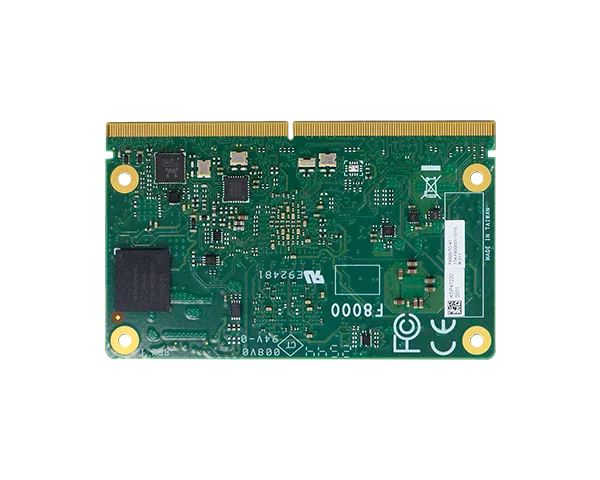

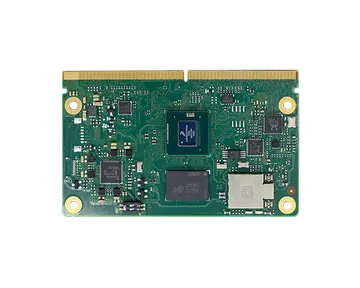

F8000
SMARC, NXP i.MX8M Plus Processor, LPDDR4 Memory Down, 1 LVDS, 1 HDMI, 1 PCIe 3.0 x1, SPI, I2C, CAN, 2 GbE LAN, 1 USB OTG, 2 USB 3.0, 4 USB 2.0, -40 to 85°C, 16GB eMMC
- NXP i.MX8M Plus Processor up to 4 Arm Cortex A53 cores
- LPDDR4 Memory Down Up to 8GB
- Display Options: 1 LVDS, 1 HDMI
- Multiple Expansion: 1 PCIe 3.0 x1, SPI, I2C, CAN
- Rich I/O: 2 GbE LAN, 1 USB OTG, 2 USB 3.0, 4 USB 2.0
Főbb jellemzők
Tanúsítványok
#LVDS
#LPDDR4
#NXP
#eMMC
#NXP i.MX8M Plus
#1G Ethernet
#Linux
#HDMI
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- NXP i.MX8M Plus Processor up to 4 Arm Cortex A53 cores
- LPDDR4 Memory Down Up to 8GB
- Display Options: 1 LVDS, 1 HDMI
- Multiple Expansion: 1 PCIe 3.0 x1, SPI, I2C, CAN
- Rich I/O: 2 GbE LAN, 1 USB OTG, 2 USB 3.0, 4 USB 2.0
System
- Processor
- NXP i.MX 8M plus Cortex-A53 processors MIMX8ML6CVNKZAB (Industrial), Quad 1.6GHz MIMX8ML8CVNKZAB (Industrial), Quad 1.6GHz
- Memory
- On-board 2/4/8GB LPDDR4
NPU
- NPU
- 2.3 TOPS
Graphics
- Controller
- GC7000UL
- Feature
- HW Decode: 1080p60 H.265, H.264, VP9, VP8 HW Endcode: 1080p60 H.265, H.264
- Display
- 1 x Dual-channel LVDS 1 x HDMI
Expansion
- Interface
- 1 x PCIe x1 (Gen 3) 1 x SDIO 3.0 1 x I2C 2 x SPI 2 x 4-wire UART and 2 x 2-wire UART 2 x CAN bus 1 x 4-lanes MIPI-CSI, 1 x 2-lanes MIPI-CSI
Audio
- Interface
- 1 x I2S
Ethernet
- Controller
- 2 x 10/100/1000Mbps GbE
I/O
- USB
- 1 x USB OTG 2 x USB 3.0 1 x USB 2.0 or 4 x USB2.0 thru USB HUB (available upon request)
- eMMC
- Supports eMMC 5.1 up to 128GB
- GPIO
- 1 x 14-bit GPIO
Wireless
- Wireless
- IEEE 802.11 ac/a/b/g/n wireless LAN + Bluetooth 5.0 (available upon request)
Security
- TPM
- TPM 2.0 (available upon request)
Power
- Type
- 5V DC-In
- Consumption
- TBD
OS Support
- Linux
- Linux Yocto
Environment
- Temperature
- Operating: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- TBD
Mechanism
- Dimensions
- SMARC form factor 82 mm (3.23") x 50 mm (1.97")
- Compliance
- SMARC specification revision 2.2 compliance
Standards and Certifications
- Certifications
- CE, FCC, RoHS
Packing List
- Packing List
- • 1 F8000 board • Heat spreader
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| F8000-TC83 | 770-F800001-000G | 4 CPU Cores, NPU, 8GB LPDDR4 memory, LVDS+HDMI, 1 USB 2.0, 32GB eMMC, Operating Temp.: -40 to 85°C |
| F8000-TC41 | 770-F800001-100G | 4 CPU Cores, NPU, 4GB LPDDR4 memory, LVDS+HDMI, 1 USB 2.0, 16GB eMMC, Operating Temp.: -40 to 85°C |
| F8000-TC28 | 770-F800001-200G | 2 CPU Cores, NPU, 2GB LPDDR4 memory, LVDS+HDMI, 1 USB 2.0, 8GB eMMC, Operating Temp.: -40 to 85°C |
| Item Name | Part Number | Description |
|---|---|---|
| SMARC Carrier Board SMX331 | ||
| Heat sink |
