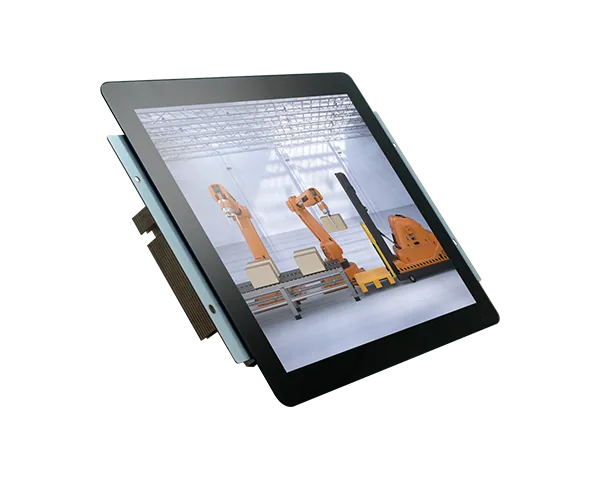

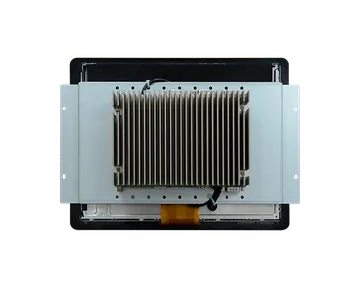

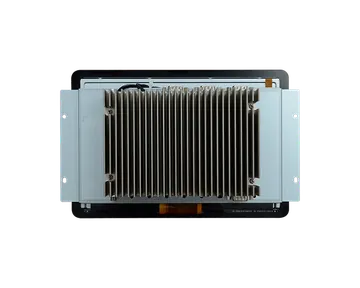

KIT-ADN Series
Industrial Open Frame Panel PC, 10.1/12.1", LPDDR5, 1 eDP/LVDS, 1 HDMI, 1 USB-C Alt. Mode, 3 M.2, 2 2.5GbE, 1 1GbE, 3 USB 3.2, 1 USB-C, 5 COM, 1 COM/DIO, 1 SATA 3.0, P-Capacitive Touch Screen, OOB, 0~50°C
- Industrial Open Frame Panel PC
- Touch Screen: P-Capacitive Touch supports 10 points
- LPDDR5 4800 MHz memory down
- Up to Quad Display Support via HDMI/USB-C/LVDS
- Easy Integration: Easy installation and maintenance
- Support OOB
Főbb jellemzők
Tanúsítványok
#9~36V DC-in
#LVDS
#Intel® Atom® Alder Lake-N Processors
#eDP
#LPDDR5
#M.2
#eMMC
#OOB
#Out-Of-Band (OOB)
#IoT
#Windows 11
#Intel
#Fanless Design
#1G Ethernet
#Windows
#Linux
#HDMI
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
#TSN
Főbb jellemzőkKey features
- Industrial Open Frame Panel PC
- Touch Screen: P-Capacitive Touch supports 10 points
- LPDDR5 4800 MHz memory down
- Up to Quad Display Support via HDMI/USB-C/LVDS
- Easy Integration: Easy installation and maintenance
- Support OOB
System
- Processor
- Intel Alder Lake-N Series Intel PC Client Series Intel® Processor N50 2 Cores, 1.0GHz to 3.4 GHz Intel® Processor N97 4 Cores, 2.0GHz to 2.9 GHz Intel® Processor N200 4 Cores, 1.0GHz to 3.2 GHz Intel® Core™ i3-N305 8 Cores, 1.0GHz to 3.0 GHz Intel® Embedded Series Intel® Atom® X7211E 2 Cores, 1.0GHz to 2.9 GHz Intel® Atom® X7213E 2 Cores, 1.7GHz to 2.9 GHz Intel® Atom® X7425E 4 Cores, 1.5GHz to 2.7 GHz
- Memory
- 8GB/16GB LPDDR5 4800 Memory down
- BIOS
- AMI SPI 256Mbit (supports UEFI boot only)
Display and Touch Screen
- Brightness
- 500 cd/m²
- Backlight Lifetime
- [KIT101P-ADN] 50,000 hours [KIT121P-ADN] 30,000 hours
- Max. Resolution
- [KIT101P-ADN] 1280 x 800 [KIT121P-ADN] 1024 x 768
- Touch Type
- Projected Capacitive
- Size/Type
- [KIT101P-ADN] 10.1" TFT LCD [KIT121P-ADN] 12.1" TFT LCD
- Aspect Ratio
- [KIT101P-ADN] 16:10 [KIT121P-ADN] 4:3
Graphics
- Controller
- Intel® UHD Graphics
- Feature
- Execution Units: Up to 32 EUs 3D API: Open GL 4.6, DirectX12, Vulkan 1.2 (Windows) Mesa 3D, OpenGL 4.6, Vulkan 1.2 (Linux) Precision: FP32, FP16, INT8 Compute: OpenCL 3.0
- Display
- 1 x eDP/LVDS(Default) 1 x HDMI 1.4 1 x USB-C Alt. Mode, one more USB-C(opt.)
Storage
- Internal
- 1 x M.2 2242/2280 M key (SATA/PCIe) 1 x SATA III
- eMMC
- eMMC 32GB/64GB (Opt.)
Expansion
- Interface
- 1 x M.2 2242/2280 M key: PCIex1/SATA 1 x M.2 2230 E Key: USB2.0/PCIe 1 x M.2 3042/3052 B key: USB3.0/USB2.0/PCIe
Audio
- Audio Codec
- ALC888S
Ethernet
- Controller
- 2 x Intel Ethernet controller i226 2.5GbE (support TSN) 1 x Intel Ethernet controller i210 GbE

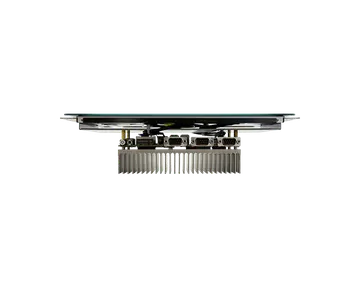

Front I/O
- Serial
- 3 x RS232/422/485 DB9 connector

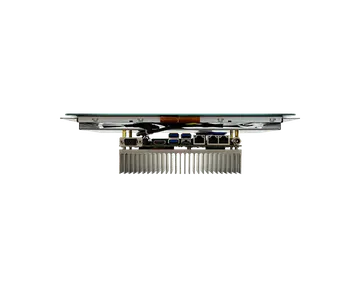

Rear I/O
- Ethernet
- 2 x 2.5GbE RJ45 1 x GbE RJ45
- Serial
- 1 x COM/DIO port
- USB
- 3 x USB 3.2 type A 1 x USB-C 3.2
- Display
- 1 x HDMI
- Audio
- 1 x 3.5mm Line out/Mic In
- Storage
- 1 x MicroSD
Internal I/O
- Serial
- 2 x RS232
- Display
- 1 x 40 pin LVDS/eDP (Default LVDS)
- SATA
- 1 x SATA 3.0 1 x 5V SATA Power (support SATA HDD LED via front panel)
- SMBus
- 1 x SMBus
- Front Panel
- 1 x front panel
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- TPM 2.0 (Available Upon Request)
Power
- Type
- Wide Range 9~36VDC
- Connector
- DC Jack (or vertical type 4pin connector)
- RTC Battery
- CR2032 Coin Cell
OS Support
- Microsoft
- Windows 11 IoT Enterprise
- Linux
- Ubuntu 22.04
Environment
- Operating Temperature
- 0~50°C with 0.6m/s air flow
- Storage Temperature
- -30~80°C
- Relative Humidity
- 5 to 90% RH (non-condensing)
Mechanism
- Dimensions (W x H x D)
- [KIT101P-ADN] 279.1 x 172.95 x 76.4 [KIT121P-ADN] 312.9 x 226.25 x 78
- Weight
- [KIT101P-ADN] 2.6 kg [KIT121P-ADN] 3.5 kg
Standards and Certifications
- Certifications
- CE / FCC Class A / RoHS
Packing List
- Packing List
- • 1 x Open Frame Panel PC • 1 x 2-pin Terminal Block Connector • 2 x M2 Screw • 1 x Terminal block for RS485
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| KIT101P-ADN | 750-KIT1011-000G | KIT101P-ADN: KIT101P-ADN-97, 10.1“ TFT WXGA Open frame with Projected Capacitive Touch, Intel® Processor N97, 8GB Memory, DC Input 9-36V DC jack |
| KIT121P-ADN | 750-KIT1211-000G | KIT121P-ADN: KIT121P-ADN-97, 12.1“ TFT XGA Open frame with Projected Capacitive Touch, Intel® Processor N97, 8GB Memory, DC Input 9-36V DC jack |
