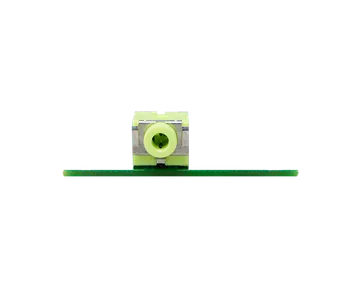

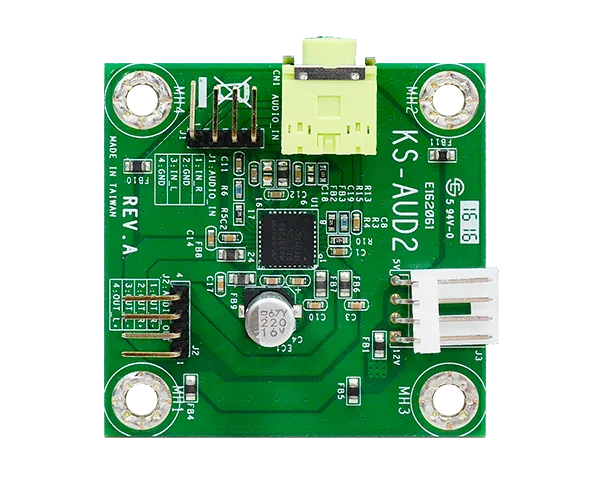

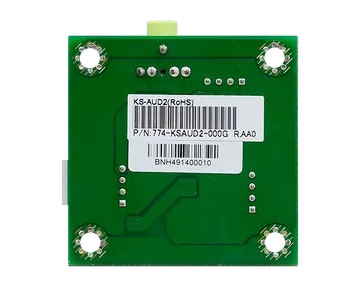

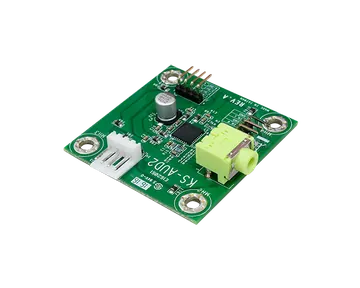

KS-AUD2
Module Boards, MAX9736
- Module Boards
- CHIP: MAX9736B
- PORT: 2 x 6W into 8Ω Loads
- Dimensions: 51mm x 51mm
#Compact Size
Főbb jellemzőkKey features
- Module Boards
- CHIP: MAX9736B
- PORT: 2 x 6W into 8Ω Loads
- Dimensions: 51mm x 51mm
Specifications
- Features
- · Audio Amplifiers Mono/Stereo High-Power Class D Amplifier · CHIP: MAX9736B · PORT －1 x audio in heaer －1 x audio in jack －1 x audio out header · Dimensio: 51mm x 51mm · Power Input: 12V · TEMPERATURE: -40°C to +85°C
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| KS-AUD2 | 770-KSAUD2-000G | 2x6W 8 ohm load audio amplifiers module board |
| Item Name | Part Number | Description |
|---|---|---|
| KS-AUD2 speaker EXT cable | A81-009617-016G A81-009851-016G | SPEAKER EXT ABLE, DP 1*4P/2.54mm to WL6008 1*2P/2.0mm, L=130mm WIRE CABLE, SPEAKER EXT, A2545H 4P/2.54mm to A1002H 2P/2mm x2, L=500&100mm |
| KS-AUD2 5W Speaker cable | 293-050001-100G | SPEAKER 5W,8Ω |
| KS-AUD2 Amp Input cable (M/B front audio header: PLUG 2*5P-1(K8)/2mm) | A81-009608-016G | WIRE AMP Input CABLE, HSG 1*4P/2.54mm to HSG 2*5P/2.0mm, L=300mm |
| KS-AUD2 Amp Input cable (Audio Jack) | A81-022042-016G | WIRE AMP Input AUDIO CABLE, AUDIO JACK 3-POLE M 180D to AUDIO JACK 3-POLE M 180D, L=400mm |
| KS-AUD2 Power cable | A81-004058-016G A81-009850-016G | POWER CABLE,A2540H-4P TO A2501H-4P, 20AWG,L=400mm WIRE CABLE, 4P/2.5mm to USB2.0(TYPE A) & DC JACK 5.6*2.5 4P/2.54mm, L=300&300&100mm |
