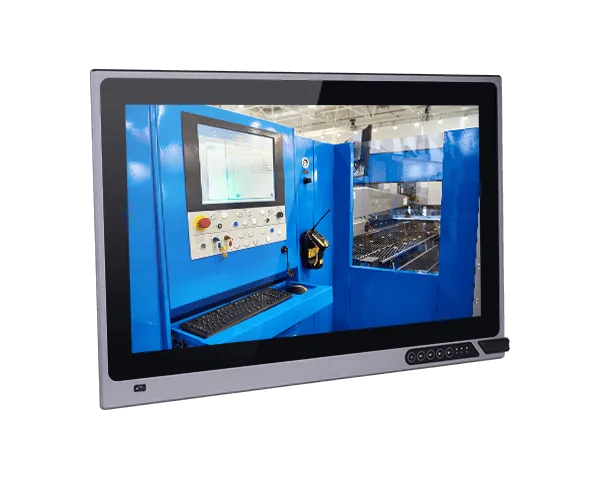

KSM-KH Series
KSM-KH, Fanless Touch Panel PC with 7th Gen Intel® i3/i5/i7 or Xeon®, designed with modular design which is ideal for automation/transportation/HMI applications
- Support Adaptive Display Platform
- Supports 9~36V Power Input
- Intel® Core™ Processor with Fanless Design
- Multiple Panel Sizes with Resistive/P-Capacitive Touch Screen
- IP65 Front Panel Protection
- 15-Year CPU Life Cycle Support Until Q1' 32 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Plug & Play
#IoT
#Intel
#HMI
#Mini PCIe
#IP65 Front Panel Protection
#Windows
#Linux
#HDMI
#DVI-D
#VGA
#DP
#Multiple Expansion
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- Support Adaptive Display Platform
- Supports 9~36V Power Input
- Intel® Core™ Processor with Fanless Design
- Multiple Panel Sizes with Resistive/P-Capacitive Touch Screen
- IP65 Front Panel Protection
- 15-Year CPU Life Cycle Support Until Q1' 32 (Based on Intel IOTG Roadmap)
System
- Processor
- 7th Generation Intel® Core™ Processors, BGA 1440 Intel® Xeon® Processor E3-1535M v6, Quad Core, 8M Cache, 3.1GHz (4.2GHz), 45W Intel® Core™ i7-7820EQ Processor, Quad Core, 8M Cache, 3.0GHz (3.7GHz), 45W Intel® Core™ i5-7440EQ Processor, Quad Core, 6M Cache, 2.9GHz (3.6GHz), 45W Intel® Core™ i5-7442EQ Processor, Quad Core, 6M Cache, 2.1GHz (2.9GHz), 25W Intel® Core™ i3-7100E Processor, Dual Core, 3M Cache, 2.9GHz, 35W Intel® Core™ i3-7102E Processor, Dual Core, 3M Cache, 2.1GHz, 25W
- Chipset
- Intel® CM238 Chipset Intel® QM175 Chipset
- Memory
- Two 260-pin SODIMM up to 32GB (CM238 supports ECC) Dual Channel DDR4 2400MHz
- BIOS
- Insyde SPI 128Mbit
Display and Touch Screen

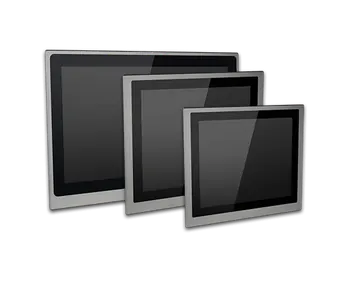

- Display
- [KSM150-KH]15" TFT LCD Panel [KSM156-KH]15.6" TFT LCD Panel [KSM170-KH]17" TFT LCD Pane [KSM185-KH]18.5" TFT LCD Pane [KSM190-KH]19" TFT LCD Panel [KSM215-KH]21.5" TFT LCD Panel
- Brightness
- [KSM150-KH]300 (cd/m²) [KSM156-KH]400 (cd/m²) [KSM170-KH]350 (cd/m²) [KSM185-KH]450 (cd/m²) [KSM190-KH]350 (cd/m²) [KSM215-KH]300 (cd/m²)
- Backlight Lifetime
- [KSM150-KH]70,000 hours [KSM156-KH]50,000 hours [KSM170-KH]30,000 hours [KSM185-KH]50,000 hours [KSM190-KH]70,000 hours [KSM215-KH]50,000 hours
- Max. Resolution
- [KSM150-KH]1024 x 768 [KSM156-KH]1366 x 768 [KSM170-KH]1280 x 1024 [KSM185-KH]1366 x 768 [KSM190-KH]1280 x 1024 [KSM215-KH]1920 x 1080
Graphics
- Controller
- Intel® HD Graphics
- Feature
- OpenGL up to 5.0, DirectX 11, OpenCL 2.1 HW Decode: HEVC/H.265, H.264, M/JPEG, MPEG2, VC1/WMV9, VP8 (8-bit), VP9 (10-bit) HW Encode: HEVC/H.265, M/JPEG, MPEG2, VP8
- Display
- 1 x VGA 1 x HDMI/DVI (DVI-D signal) (DVI available upon request) 1 x HDMI/DP++ (DP++ available upon request) VGA: resolution up to 1920x1200 @ 60Hz DVI: resolution up to 2560x1600 @ 60Hz HDMI: resolution up to 4096x2160 @ 24Hz DP++: resolution up to 4096x2304 @ 60Hz
- Triple Displays
- VGA + HDMI/DVI (DVI-D signal) + HDMI/DP++
Storage
- External/Internal
- 1 x 2.5" SATA 3.0 Drive Bay (RAID)
Expansion
- Interface
- 1 x Full-size Mini PCIe with micro SIM socket (PCIe/USB) 1 x Full-size Mini PCIe with micro SIM socket (USB) 1 x M.2 M Key 2280 (PCIe x4)
Ethernet
- Controller
- 1 x Intel® I211AT PCIe (10/100/1000Mbps) 1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
LED
- Indicators
- 1 x Power LED 1 x Status LED 1 x HDD LED

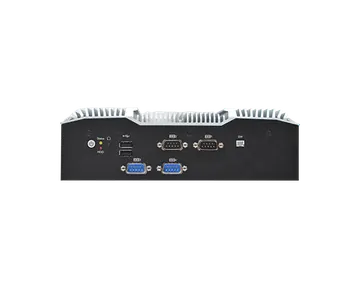

Front I/O
- Serial
- 2 x RS-232/422/485 (DB-9) (RS-232 with power) 2 x RS-232/422/485 (DB-9)
- USB
- 2 x USB 2.0 (type A)
- Buttons
- 1 x Power Button 1 x Reset Button
- Wi-Fi Antenna
- 2 x Wi-Fi Module Antenna Hole

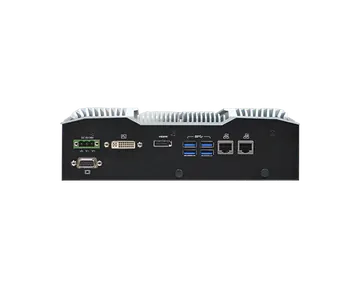

Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- USB
- 4 x USB 3.0 (type A)
- Display
- 1 x VGA 1 x HDMI/DVI (DVI-D signal) (DVI available upon request) 1 x HDMI/DP++ (DP++ available upon request)
- Audio
- 1 x Line-out 1 x Mic-in (available upon request)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 SecondsSystem Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- TPM 2.0
Power
- Type
- Wide Range 9~36V
- Connector
- 3-pole Terminal Block
OS Support
- OS Support
- Windows 10 IoT Enterprise LTSB 64 Bit Linux (available upon request)
Environment
- Operating Temperature
- -20 to 50°C (SSD or mSATA-mini or CFast card, with 0.7m/s air flow)
- Storage Temperature
- -30 to 70°C
- Relative Humidity
- 5 to 95% RH (non-condensing)
Mechanism
- Dimensions
- [KSM150-KH]387 x 320 x 118 mm [KSM156-KH]407.3 x 277.3 x 97.92 mm [KSM170-KH]404 x 363.8 x 102.8 mm [KSM185-KH]472.06 x 314.15 x 102.8 mm [KSM190-KH]467 x 400 x 118 mm [KSM215-KH]544.2 x 360.6 x 118 mm
- Construction
- Metal + Aluminum
- Mounting
- Panel/VESA Mount 100 x 100 mm
- Weight
- [KSM150-KH]7.7 kg [KSM156-KH]8 kg [KSM170-KH]7.8 kg [KSM185-KH]8.1 kg [KSM190-KH]10 kg [KSM215-KH]9.4 kg
Standards and Certifications
- Shock
- Half sine wave 3G, 11ms, 3 shock per axis
- Vibration
- IEC68-2-64
- Certifications
- CE, FCC, RoHS
Packing List
- Packing List
- 1 Single Box 1 3 pin Terminal Block Connector 2 Mini PCIe Screw 1 SATA Screw
Patent
- Patent No. (Taiwan)
- I711917
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
- KS150P-KH CE Certification (PDF)
- KS150P-KH FCC Certification (PDF)
- KS150P-KH RoHS Certification (PDF)
- KS190P-KH CE Certification (PDF)
- KS190P-KH FCC Certification (PDF)
- KSM-KH Series CE Certification (PDF)
- KSM-KH Series FCC Certification (PDF)
- KSM-KH Series UKCA Certification (PDF)
- KSM RoHS Certification (PDF)
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| KSM150P-KHW36 | 750-K15003-100G | 15" TFT XGA Fanless Panel PC with Projected Capacitive Touch, Intel® 7th Core Processor i5-7440EQ, DC Input 9~36V Terminal, F/G SYSTEM RoHS |
| KSM150R-KHW36 | 750-K15003-200G | 15" TFT XGA Fanless Panel PC with Resistive Touch, Intel® 7th Core Processor i5-7440EQ, DC Input 9~36V Terminal, F/G SYSTEM RoHS |
| KSM150P-KHW36-I5-KLU | 750-K15003-300G | 15" TFT XGA Fanless Panel PC with Projected Capacitive Touch, OSD, Light Sensor, USB, Intel® 7th Core Processor i5-7440EQ, DC Input 9~36V Terminal, F/G SYSTEM RoHS |
| KSM190P-KHW36-i5 | 750-K19002-100G | 19" TFT XGA Fanless Panel PC with Projected Capacitive Touch, Intel® 7th Core Processor i5-7440EQ, DC Input 9~36V Terminal, F/G SYSTEM RoHS |
| KSM190R-KHW36-i5 | 750-K19002-200G | 19" TFT XGA Fanless Panel PC with Resistive Touch, Intel® 7th Core Processor i5-7440EQ, DC Input 9~36V Terminal, F/G SYSTEM RoHS |
| KSM190P-KHW36-i5-KLU | 750-K19002-300G | 19" TFT XGA Fanless Panel PC with Projected Capacitive Touch, OSD, Light Sensor, USB, Intel® 7th Core Processor i5-7440EQ, DC Input 9~36V Terminal, F/G SYSTEM RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| Memory | 138-540002-100G 138-580002-100G 138-5G0161-100G | 4GB DDR4 SODIMM RAM 8GB DDR4 SODIMM RAM 16GB DDR4 SODIMM RAM |
| HDD/SSD | 635-550092-050G 635-500100-200G 635-610002-110G 635-605122-110G 635-602562-120G 635-601282-190G 635-600642-150G | 2.5” SATA HDD, 500GB, RoHS 2.5” SATA HDD, 1TB, RoHS 2.5" SATA SSD, 1TB MLC, RoHS 2.5" SATA SSD, 512GB MLC, RoHS 2.5" SATA SSD, 256GB MLC, RoHS 2.5" SATA SSD, 128GB MLC, RoHS 2.5" SATA SSD, 064GB MLC, RoHS |
| Wi-Fi | 761-110091-000G 612-110050-300G | Wi-Fi Kit, SparKLAN, WPEA-121N, w/IPX cable & antenna Wi-Fi module, SparKLAN, WPEA-252NI |
| Power Cord | 785-PWRD | Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS |
| Power Adapter | 671-106013-000G 671-112005-100G | 60W: 12VDC/5A, DC Cord 5.5*2.5mm, Pitch 5mm, LV6, RoHS 120W: 24VDC/5A, DC Cord 5.5*2.5mm, Pitch 5mm, LV6, RoHS |
| Panel Mount Kits | 761-P15002-000G 761-P19003-000G 761-P15002-000G 761-P19003-000G 761-KS1851-000G 761-KS2150-000G | Panel Mount Kit for PMKS150 RoHS Panel Mount Kit for PMKS190 RoHS KSM150 Panel Mount Kit RoHS KSM170-AL / KSM190-AL Panel Mount Kit RoHS KSM185 Panel Mount Kit RoHS KSM215-AL Panel Mount Kit RoHS |
