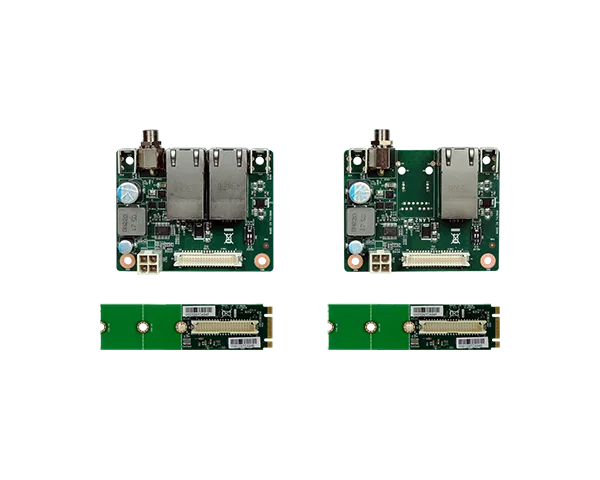

M.2-1PSE/2PSE
M.2 PSE Port Module
- Port: 1 RJ45/2 RJ45
- Interface: PCIe x1
- Form Factor: M.2 B-M key 22mm x 80mm
Tanúsítványok
#M.2
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- Port: 1 RJ45/2 RJ45
- Interface: PCIe x1
- Form Factor: M.2 B-M key 22mm x 80mm
Packing List
- Packing List
- • 1 M.2-PSE module • 1 M.2-LAN module • 1 cable (Length: 250mm): A81-009348-016G
Specifications
- Features
- ◆ I/O CONNECTORS • M.2-1PSE: 1 connector for 1 external LAN port • M.2-2PSE: 2 connectors for 2 external LAN ports ◆ POWER INPUT • 9V-36V: 4-pin header (default), DC jack (opt.) ◆ POWER OUTPUT • Compliant IEEE 802.3af, up to 15.4W at 48V per PoE port ◆ MOUNTING • Terminal (Default) • Bracket (Optional) ◆ APPLIED MODELS: All DFI systems and boards with M.2 interface. ◆ TEMPERATURE • Operating: 0°C to 70°C • Storage: -40°C to 85°C ◆ HUMIDITY: 5% to 90% ◆ DIMENSIONS: M.2 B-M key 22mm x 80mm
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|

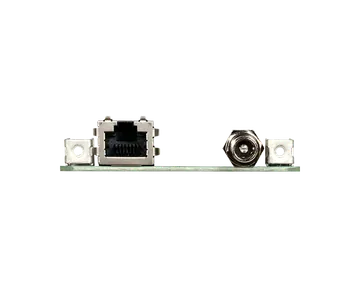

| M.2-1PSE | 770-M21PS2-000G | 1 RJ45 |

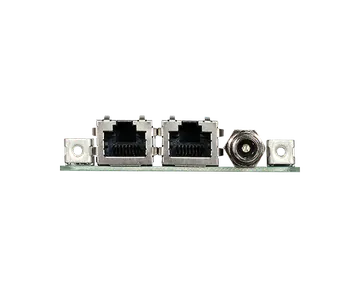

| M.2-2PSE | 770-M22PS2-000G | 2 RJ45 |
