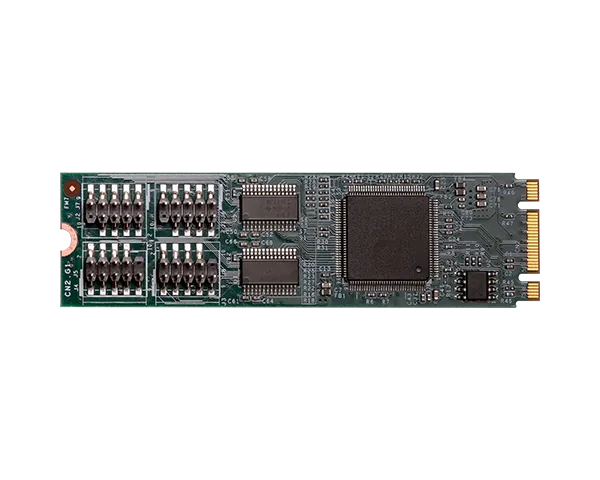

M.2-COM4
M.2-COM4 | Expansion Module | Peripherals | DFI
- Port: RS232/RS422/RS485
- Mode: RS232/422/485 Selected by SW
- Interface: PCIe x1
- Form Factor: M.2 B-M key
Tanúsítványok
#RoHS Certification
Főbb jellemzőkKey features
- Port: RS232/RS422/RS485
- Mode: RS232/422/485 Selected by SW
- Interface: PCIe x1
- Form Factor: M.2 B-M key
Packing List
- Packing List
- • 1 M.2 serial port module • 4 COM port cable (Length: 250mm): A81-015011-001G
Specifications
- Features
- ◆ I/O CONNECTORS: RS232/RS422/RS485 functions with DB9 connector. ◆ POWER INPUT: 3.3V via M.2 connector ◆ APPLIED MODELS: All DFI systems and boards with M.2 interface ◆ TEMPERATURE: • Operating: -40°C to 85°C • Storage: -40°C to 85°C ◆ HUMIDITY: 5% to 90% ◆ FORM FACTOR • M.2 B-M Key 22mm x 80mm (4 ports) ◆REGULATION: CE/FCC class B/RoHS
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| M.2-COM4 | 770-M2COM1-000G | M.2 B-M key, 22mm x 80mm, 4 ports |

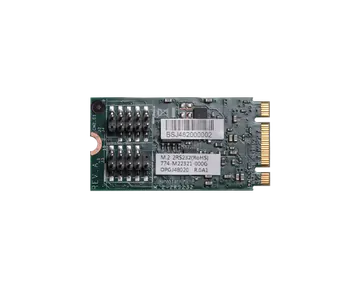

| M.2-2RS232 | 770-M22321-000G | M.2 B-M key, 22mm x 42mm, 2 ports |

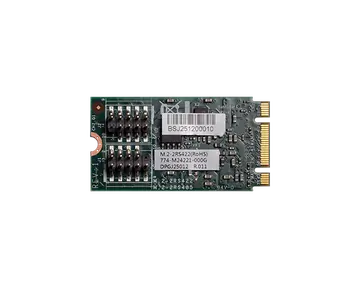

| M.2-2RS422 | 770-M24221-000G | M.2 B-M key, 22mm x 42mm, 2 ports |

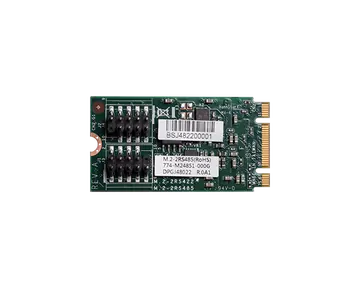

| M.2-2RS485 | 770-M24851-000G | M.2 B-M key, 22mm x 42mm, 2 ports |
