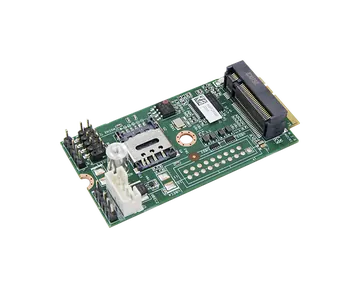

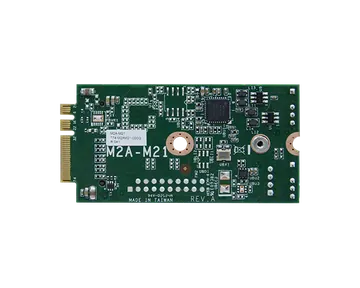

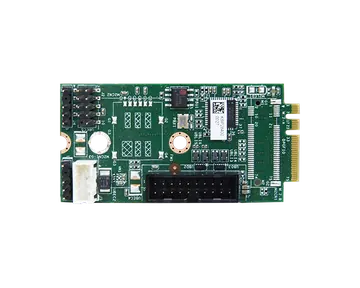

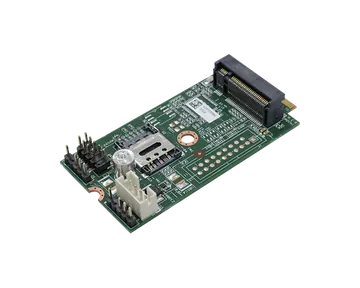

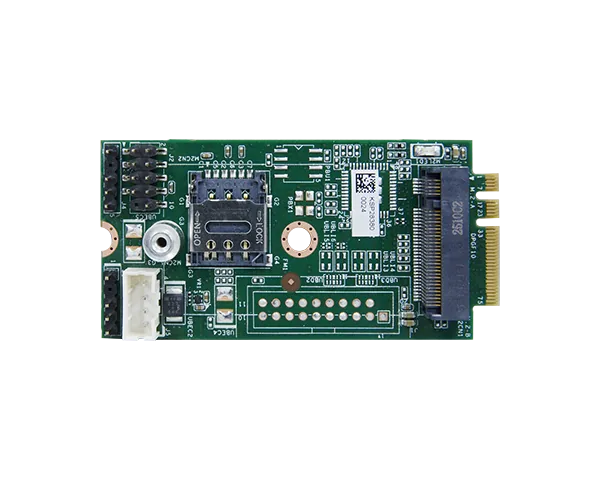

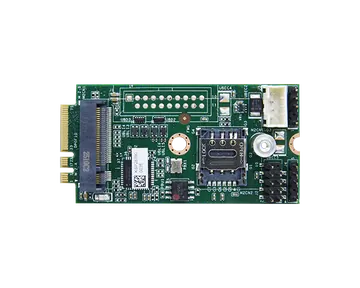

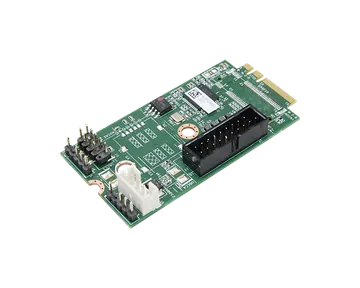

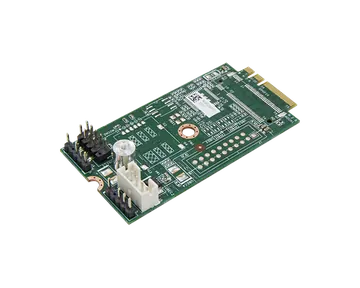

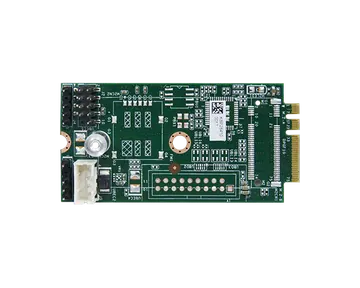

M2A-M21
Module Boards
- CHIP: USB3.0 HOST CONTROLLER, UPD720202K8
- PORT: M.2 A/E Key
- Support up to 1 M.2 B Key(PCIE/USB3/USB2) (2242) with SIM slot for 4G/5G LTE module, and WIFI module
- Support up to 2 USB 3 Gen1 / 4 USB2.0 headers
- DIMENSIONS: 30 x 60 mm (Stand off at 30 x 30 mm)
- Module Boards
- ONLY FOR DFI MiniITX
#M.2
#SIM Slot
Főbb jellemzőkKey features
- CHIP: USB3.0 HOST CONTROLLER, UPD720202K8
- PORT: M.2 A/E Key
- Support up to 1 M.2 B Key(PCIE/USB3/USB2) (2242) with SIM slot for 4G/5G LTE module, and WIFI module
- Support up to 2 USB 3 Gen1 / 4 USB2.0 headers
- DIMENSIONS: 30 x 60 mm (Stand off at 30 x 30 mm)
- Module Boards
- ONLY FOR DFI MiniITX
Specifications
- Features
- • CHIP: USB3.0 HOST CONTROLLER, UPD720202K8 • FEATURES: - Support up to 1 M.2 B Key(PCIE/USB3/USB2) (2242) with SIM slot for 4G/5G LTE module, and WIFI module - Support up to 2 USB 3 Gen1 / 4 USB2.0 headers • TEMPERATURE: - Operating: -40°C to 85°C - Storage: -40°C to 85°C • HUMIDITY: 5% to 90% • DIMENSIONS: 30 x 60 mm (Stand off at 30 x 30 mm) NOTE: The function depends on the source signal from the motherboard.
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| M2A-M21 | 770-M2AM21-000G | M.2 A/E key-to-M.2 M/B key(PCIE) (3060,Stdoff-3030) adapter wi SIM slot, 4 USB2.0 |
| M2A-M21 | 770-M2AM21-100G | M.2 A/E key-to-M.2 M/B key(USB3/2) (3060 Stdoff-3030) adapter wi SIM slot, 4 USB2.0 |
| M2A-M21 | 770-M2AM21-200G | M.2 A/E key to USB module (3060,Stdoff-3030) with 2 USB3.2 Gen1, 4 USB2.0 |
| M2A-M21 | 770-M2AM21-300G | M.2 A/E key-to-USB adapter 3060,Stdoff-3030 with 4 USB2.0 |
