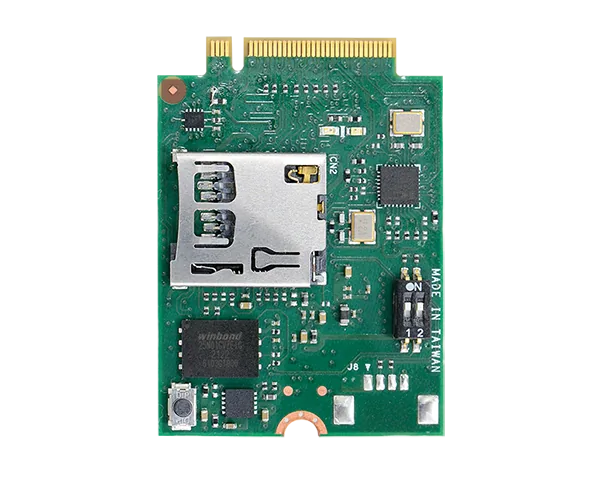

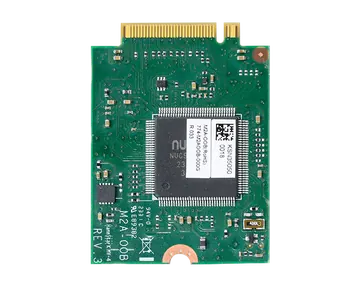

M2A-OOB
A hardware module that provides secure Out-Of-Band device monitoring and management functions over the connected edge system.
- ARM926EJ-S microprocessor embedded
- Low power consumption of less than 0.5 W
- Built-in Out-Of-Band (OOB) remote management including remote power on/off, remote hardware monitor, remote BIOS setup
Főbb jellemzők
Tanúsítványok
#Nuvoton
#M.2
#Out-Of-Band (OOB)
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- ARM926EJ-S microprocessor embedded
- Low power consumption of less than 0.5 W
- Built-in Out-Of-Band (OOB) remote management including remote power on/off, remote hardware monitor, remote BIOS setup
Specifications
- Features
- ◆ Out-Of-Band Monitoring and Management Functions • Processor: Nuvoton NUC980DK71YC (LQFP-128, 128MB DDR2) • Power Cycling: - Enforcement Shutdown - Power Switch On / Off - Reset ◆ Signal Interface • Connector: Proprietary M.2 Pin Definition by DFI • Factory Reset: Factory Reset Button (5 Seconds Pressed) • Configuration Lock: 2 DP switch (default: both disabled) • Storage: 128MB SPI NAND Flash Micro SD Slot (Co-layout with optional eMMC) • LED Indicator Lights: MCU Activated ◆ Network Interface • Ethernet: 1-port 10/100 Mbps RJ45 Ports via M.2 A key (via NC-SI) ◆ Power Requirement • Connector: Proprietary M.2 Pin Definition by DFI ◆ Hardware • Dimensions: M.2 3042, 30mm x 42mm ◆ Environment • Operating Temperature: -5 to 65ºC (On Industrial Motherboard) • Operation Humidity: 5 to 90% (Non-condensing) • Storage Temperature: -40 to 85°C • Certification: CE / FCC / RoHS & REACH Compliant
Basic Function
- Basic Function
- Open SSH Login Remote power on/off & reset control Remote hardware monitor log Recovery (Factory Mode) Remote BIOS setup & UEFI shell (serial over lan) Remote BIOS update SPI-NAND* Remote BIOS update SOL & DFI USB-Storage Change OOB IP address Remote Recovery OS Image (UEFI text mode)** *Remote BIOS Update (SPI) is not supported on the AMD platform. **Remote Recovery OS Image only supports windows.
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| M2A-OOB | 770-M2AOOB-000G | M2A-OOB M.2 A Key Management Module |
| M2A-OOB | 770-M2AOOB-002G | M2A-OOB M.2 A Key Management Module (only for COM650) |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
