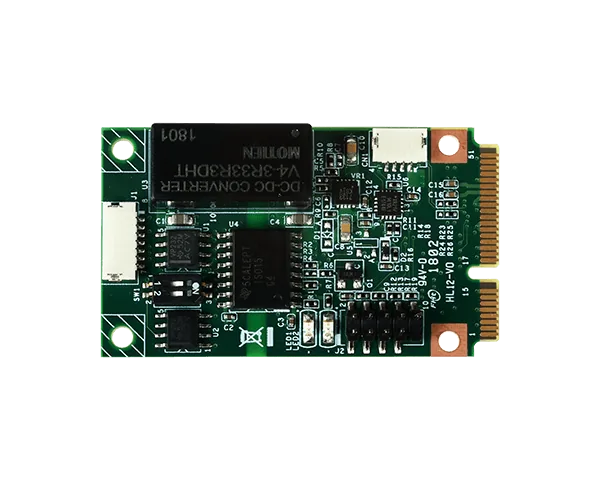

MPE-CAN2
MPE-CAN2 | CAN Bus Modules | Peripherals | DFI
- Supports CANBus 2.0A and 2.0B Specifications with 11-bits and 29bits Data Frames
- 40°C to 85°C Operation Temperature
- Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 2.5kV HiPOT protection
- Complies with EN61000-4-5 2.5kV Surge protection
- Up to 1M bits Baud Rate
Főbb jellemzők
#CAN-Bus
Főbb jellemzőkKey features
- Supports CANBus 2.0A and 2.0B Specifications with 11-bits and 29bits Data Frames
- 40°C to 85°C Operation Temperature
- Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 2.5kV HiPOT protection
- Complies with EN61000-4-5 2.5kV Surge protection
- Up to 1M bits Baud Rate
Expansion
- Interface
- Mini-PCIe or USB
Internal I/O
- Other I/O
- One DB9 connector includes Dual CAN Bus and One J1708 ports
Environment
- Temperature
- Operating: -40°C to 85°C Storage: -40°C to 85°C
- Humidity
- Operating: 10% to 85% Storage: 10% to 90%
Mechanism
- Dimensions
- 50.59mm x 30mm (1.99" x 1.18")
Packing List
- Packing List
- MPE-CAN2-MR: • 1*7P/1mm to DB-9 Wire cable, L=210mm MPE-CAN2-UF: • 1*7P/1mm to DB-9 Wire cable, L=210mm • 1*4P/1mm to 1*4P/2mm housing wire cable, L=210mm • 1*4P/1mm to 1*4P/2.54mm housing wire cable, L=210mm
Specifications
- Features
- Supports CANBus 2.0A and 2.0B Specifications with 11-bits and 29bits Data Frames Up to 1M bits Baud Rate Support high layer protocol as SAE J1939 / OBDII / J1708 / TTCAN ( Full CAN ) Complies with EN61000-4-5 2.5kV Surge protection Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 2.5kV HiPOT protection Option to be installed by USB interface when the mini PCIe slot is not present
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| MPE-CAN2-MR | 770-MPEC21-100G | MPE-CAN2 Full CAN module kit by mini PCIe interface |
| MPE-CAN2-UF | 770-MPEC21-300G | MPE-CAN2 Full CAN module kit by USB interface |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
