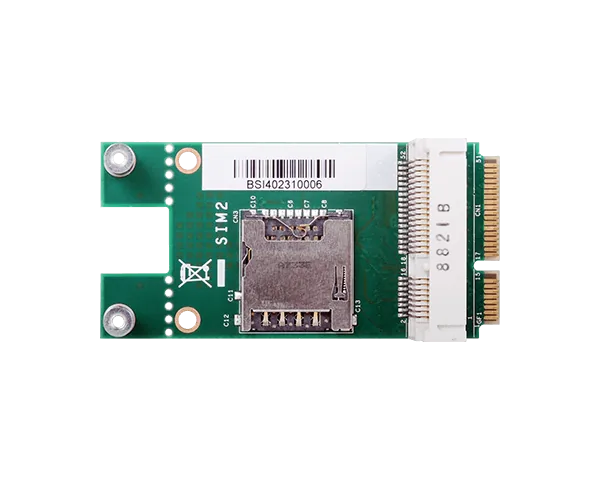

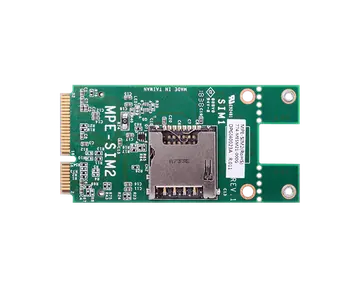

MPE-SIM2
MPE-SIM2 | SIM Card Module | Peripherals | DFI
- An extended 2x SIM card solution for SBC mother board compatible with DFI 1.8’’/3.5” mother board
- Support USB 3.1 Gen1 high speed Mini PCIe device
- Design for 4G LTE card. (Reference model: Sierra MC7455)
- Flexible mounting holes
Főbb jellemzők
#Mini PCIe
Főbb jellemzőkKey features
- An extended 2x SIM card solution for SBC mother board compatible with DFI 1.8’’/3.5” mother board
- Support USB 3.1 Gen1 high speed Mini PCIe device
- Design for 4G LTE card. (Reference model: Sierra MC7455)
- Flexible mounting holes
Expansion
- Interface
- Mini-PCIe
Internal I/O
- Other I/O
- Mini PCIe connector: signal support PCIe x1 and USB2 or USB 3.1 Gen1 and USB2 2 SIM slots
Environment
- Temperature
- Operating: -40°C to 85°C Storage: -40°C to 85°C
- Humidity
- Operating: 10% to 85% Storage: 10% to 90%
Mechanism
- Dimensions
- 61.45mm x 30mm
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| MPE-SIM2U | 770-MESM21-000G | USB3/USB2 interface w/ 2 Micro SIM card slot Module |
| MPE-SIM2P | 770-MESM21-100G | PCIe/USB2 interface w/ 2 Micro SIM card slot Module |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
