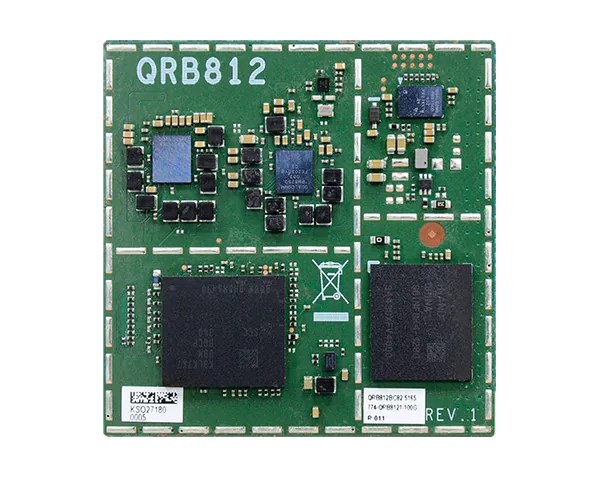

QRB812
OSM 1.1, Qualcomm QRB5165, LPDDR5, 1 4-lane MIPI-DSI, 1 USB-C DP, 2 PCIe x1 (Gen3), 1 PCIe x2 (Gne3), 2 USB 3.1 Gen2, 6 MIPI-CSI, AMR, Robotic, Drone, -5°C~65°C
- Qualcomm QRB5165 Processor, 8x Kryo 585 2.84Ghz
- 8GB LPDDR5 memory down
- Dual Displays: 1 4-lane MIPI-DSI, 1 USB-C DP
- Multiple Expansion: 2 PCIe x2 (Gen3), 1 PCIe x1 (Gen3), 2 USB 3.1 Gen2, 6 MIPI-CSI
- Application: For Automation AMR, Robotic or Drone
Főbb jellemzők
Tanúsítványok
#Qualcomm® QRB5165
#USB Type-C DP
#LPDDR5
#UART
#Robot
#Drone
#MIPI-DSI
#Qualcomm®
#Linux
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
#AMR
Főbb jellemzőkKey features
- Qualcomm QRB5165 Processor, 8x Kryo 585 2.84Ghz
- 8GB LPDDR5 memory down
- Dual Displays: 1 4-lane MIPI-DSI, 1 USB-C DP
- Multiple Expansion: 2 PCIe x2 (Gen3), 1 PCIe x1 (Gen3), 2 USB 3.1 Gen2, 6 MIPI-CSI
- Application: For Automation AMR, Robotic or Drone
System
- Processor
- QRB5165, Kryo 585 2.84Ghz - Quad high-performance Kryo Gold cores • Three Kryo Gold cores with a 256 KB L2 cache per core, Fmax at 2.419 GHz • One Kryo Gold prime core with a 512 KB L2 cache, Fmax at 2.842 GHz - Quad low-power Kryo Silver cores with a 128 KB L2 cache per core, Fmax at 1.805 GHz
- Memory
- PoP LPDDR5, 8GB memory down
Graphics
- Controller
- Adreno 650 GPU
- Feature
- Open GL ES 3.2, Vulkan 1.1, DX12 FL 12_1, OpenCL 2.0
- Display
- 1 x 4-lane MIPI-DSI (to HDMI on carrier board) 1 x DP 1.4 (thru USB Type-C on carrier board)
Storage
- UFS
- 128GB UFS 3.1
I/O
- Interface
- 2 x PCIe x2 (Gen3) 1 x PCIe x1 (Gen3) 2 x I2C 2 x SPI 4 x PWM 2 x UART(TX/RX/RTS/CTS) 2 x UART(TX/RX) 1 x UART(console) 1 x 4-bit SDIO 6 x 4-lane MIPI-CSI 2 x USB 3.1 Gen 2 (USB0 for Download or USB Type-C) 16 x GPIO
Security
- TEE
- Qualcomm® Trusted Execution Environment v5
Power
- Type
- 5VDC
- Consumption
- TBD
OS Support
- Linux
- Ubuntu
Environment
- Temperature
- Operating: -5°C~65°C Storage: -40°C~85°C
- Humidity
- Operating: 10%~90% RH Storage: 10%~90% RH
- MTBF
- TBD
Mechanism
- Dimensions
- 45 mm (1.77") x 45 mm (1.77")
- Compliance
- OSM 1.1 (*Please be advised that certain pins do not adhere OSM standards. For further details, kindly refer to the user manual.)
Standards and Certifications
- Certifications
- CE, FCC, RoHS
Packing List
- Packing List
- 1 QRB812 module
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| QRB812BC82-5165 | TBD | Qualcomm QRB5165, 8GB memory down, 128GB UFS 3.1, MIPI- DSI + USB-C DP, 5VDC, -5°C~65°C |
