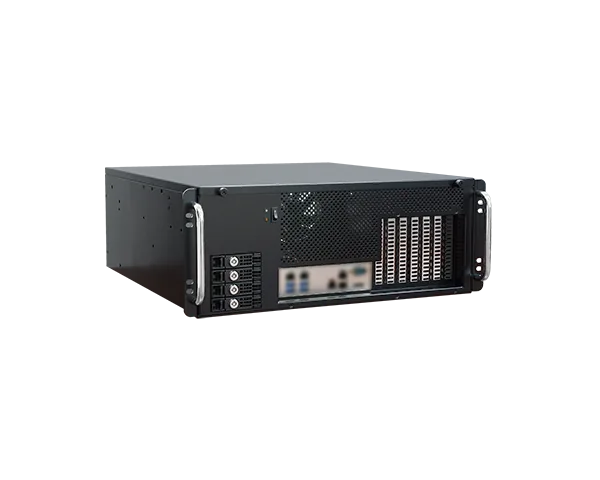

RM645-ERX610
Rackmount Edge-Server System, 5th/4th Gen Intel® Xeon® Scalable Family, ECC-RDIMM, DP, 3 PCIe x16, 3 PCIe x8, 2 M.2 M key, 2 GbE, 2 10GbE, 1 dedicated IPMI LAN, 4 USB 3.2, 1 COM, 4 SATA 3.0, 0°C~40°C, IPMI, OOB
- Powerful 4U Edge AI Server: High-Performance Computing at the Edge
- Single 4th/5th Gen Intel® Xeon® Scalable processors for great AI computing
- Supports 3 PCIe x16 and 3 PCIe x8 Gen.5 slots for full-height, 10.5” length expansion cards
- Accommodates up to 4 hot-swappable 2.5” drive bays for high availability storage
- Versatile I/O: 2 GbE & 2 10GbE, 1 IPMI LAN, 4 USB 3.2, 1 DP, 2 M.2 2280 M-Key
- IPMI-based out-of-band management for remote system monitoring and control
Főbb jellemzők
#DDR5
#Edge AI Computing
#M.2
#4th Gen Intel Xeon Scalable Family
#5th Gen Intel Xeon Scalable Family
#OOB
#Out-Of-Band (OOB)
#AI
#Intel
#1G Ethernet
#PCIe x16
#Windows
#DP
#Multiple Expansion
#10G Ethernet
Főbb jellemzőkKey features
- Powerful 4U Edge AI Server: High-Performance Computing at the Edge
- Single 4th/5th Gen Intel® Xeon® Scalable processors for great AI computing
- Supports 3 PCIe x16 and 3 PCIe x8 Gen.5 slots for full-height, 10.5” length expansion cards
- Accommodates up to 4 hot-swappable 2.5” drive bays for high availability storage
- Versatile I/O: 2 GbE & 2 10GbE, 1 IPMI LAN, 4 USB 3.2, 1 DP, 2 M.2 2280 M-Key
- IPMI-based out-of-band management for remote system monitoring and control
System
- Processor
- 5th Generation Intel® Xeon® Scalable Processor Family, LGA 4677 Socket, TDP upto 270W: Intel® Xeon® Gold 6548Y+ Processor (32 Cores, 60 MB Cache, up to 4.1 GHz); 250W Intel® Xeon® Gold 6548N Processor (32 Cores, 60 MB Cache, up to 4.1 GHz); 250W IIntel® Xeon® Gold 6538N Processor (32 Cores, 60 MB Cache, up to 4.1 GHz); 205W Intel® Xeon® Gold 6530 Processor (32 Cores, 160 MB Cache, up to 4 GHz); 270W Intel® Xeon® Gold 6526Y Processor (16 Cores, 37.5 MB Cache, up to 3.9 GHz); 195W Intel® Xeon® Gold 5520+ Processor (28 Cores, 52.5 MB Cache, up to 4 GHz); 205W Intel® Xeon® Gold 5515+ Processor (8 Cores, 22.5 MB Cache, up to 4.1 GHz); 165W Intel® Xeon® Silver 4516Y+ Processor (24 Cores, 45 MB Cache, up to 3.7 GHz); 185W Intel® Xeon® Silver 4514Y Processor (16 Cores, 30 MB Cache, up to 3.4 GHz); 150W Intel® Xeon® Silver 4510 Processor (12 Cores, 30 MB Cache, up to 4.1 GHz); 150W Intel® Xeon® Silver 4510T Processor (12 Cores, 30 MB Cache, up to 3.7 GHz); 115W Intel® Xeon® Silver 4509Y Processor (8 Cores, 22.5 MB Cache, up to 4.1 GHz); 125W 4th Generation Intel® Xeon® Scalable Processor Family, LGA 4677 Socket, TDP upto 270W: Intel® Xeon® Gold 6448Y Processor (32 Cores, 60 MB Cache, up to 4.10 GHz); 225W Intel® Xeon® Gold 6438N Processor (32 Cores, 60 MB Cache, up to 3.60 GHz); 205W Intel® Xeon® Gold 6430 Processor (32 Cores, 60 MB Cache, up to 3.40 GHz); 270W Intel® Xeon® Gold 6428N Processor (32 Cores, 60 MB Cache, up to 3.80 GHz); 185W Intel® Xeon® Gold 6426Y Processor (16 Cores, 37.5 MB Cache, up to 4.10 GHz); 185W Intel® Xeon® Gold 6418H Processor (24 Cores, 60 MB Cache, up to 4.00 GHz); 185W Intel® Xeon® Gold 5420+ Processor (28 Cores, 52.5 MB Cache, up to 4.10 GHz); 205W Intel® Xeon® Gold 5418N Processor (24 Cores, 45 MB Cache, up to 3.80 GHz); 165W Intel® Xeon® Gold 5418Y Processor (24 Cores, 45 MB Cache, up to 3.80 GHz); 185W Intel® Xeon® Gold 5415+ Processor (8 Cores, 22.5 MB Cache, up to 4.10 GHz); 150W Intel® Xeon® Silver 4416+ Processor (20 Cores, 37.5 MB Cache, up to 3.90 GHz); 165W Intel® Xeon® Silver 4410T Processor (10 Cores, 26.25 MB Cache, up to 4.00 GHz); 150W Intel® Xeon® Silver 4410Y Processor (12 Cores, 30 MB Cache, up to 3.90 GHz); 150W
- Chipset
- Intel® C741 Chipset
- Memory
- 8 x ECC-RDIMM up to 1024GB DDR5 Max. 5600MHz
- BIOS
- Insyde
Graphics
- Display
- 1 x DP
Storage
- External
- 4 x 2.5" hotswap bay
- Internal
- 2 x M.2 2280 M key
Expansion
- Interface
- 3 x PCIe x16 (Gen5) 3 x PCIe x8 (Gen5) 2 x M.2 M key 2280
Audio
- Audio Codec
- ALC888S
Ethernet
- Controller
- 2 x Intel® I210AT 2 x Intel® E610-XAT2 IPMI: RTL8211F
Front I/O
- Ethernet
- 2 x GbE 2 x 10GbE 1 x Dedicated IPMI LAN
- Serial
- 1 x RS-232/422/485 (DB-9)
- USB
- 4 x USB 3.2 Gen1
- Display
- 1 x DP
- Audio
- Internal: Front Audio
- Buttons
- 1 x Power Button
- LED Indicators
- 1 x Power LED 1 x HDD LED
Cooling
- Fan
- 2x 12CM system Fan
Power
- Type
- ATX PS2/ Redundant (Opt.)
- Consumption
- TBD
OS Support
- OS Support
- Windows 11 LTSC Widows server 2022 LTSC
Environment
- Operating Temperature
- 0°C~40°C
Mechanism
- Construction
- Heavy Industrial Steel
- Mounting
- Rack mount kit
- Dimensions (W x H x D)
- 481.6 x 175.6 x 470.8mm
- Weight
- TBD
- Color
- Black
Standards and Certifications
- Certifications
- TBD
Country of Origin
- Country of Origin
- Taiwan
