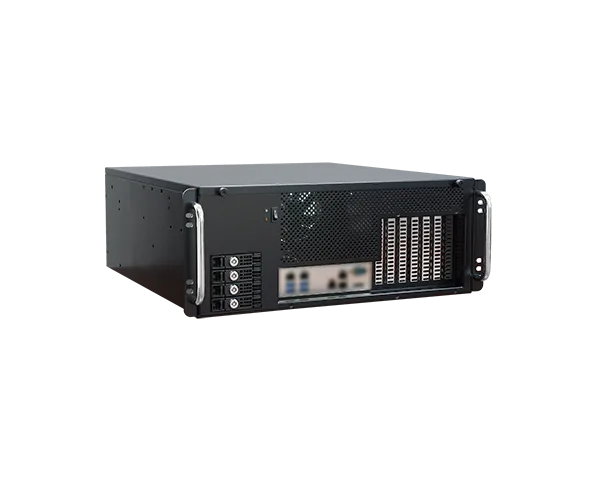

RM645-RPS630
Rackmount Edge-Server System, BTL-S/14th/13th/12th Gen Intel® Core™ Processors, ECC/Non-ECC UDIMM, VGA, DP++, HDMI, 2 PCIe x16, 4 PCIe x4, 1 PCI, 1 M.2 E key, 1 M.2 A key for M2-OOB, 1 M.2 M key, 4 Intel 2.5GbE, 4 USB 3.2 Gen2, 4 USB 3.2 Gen1, 6 COM, 2 USB 2.0
- Powerful 4U Edge AI Server: Rackmount system with BTL-S/14th/13th/12th Gen Intel® Core Processors
- Multiple PCIe card expansion available: 2 PCIe x16, 4 PCIe x4, 1 PCI, 2 M.2 M key, 1 M.2 E Key, 1 M.2 A Key
- High-Availability Storage: Accommodating 4x 2.5-inch hot-swap drive bays and more 4 x bays by project support.
- Versatile I/O: Rich 4 Intel 2.5GbE, 4 USB 3.2 Gen2, 4 USB 3.2 Gen1 and 6 COM, 2 USB 2.0 support by project
- Quad Displays: VGA, 2 DP++, HDMI
Főbb jellemzők
#12th Gen Intel® Core™ Processor
#13th Gen Intel® Core™ Processor
#Windows 10
#Edge AI Computing
#M.2
#Intel® Bartlett Lake-S Processors
#14th Gen Intel® Core™ Processor
#IoT
#AI
#Windows 11
#Intel
#PCIe x16
#Windows
#HDMI
#VGA
#DP
#Multiple Expansion
#2.5G Ethernet
Főbb jellemzőkKey features
- Powerful 4U Edge AI Server: Rackmount system with BTL-S/14th/13th/12th Gen Intel® Core Processors
- Multiple PCIe card expansion available: 2 PCIe x16, 4 PCIe x4, 1 PCI, 2 M.2 M key, 1 M.2 E Key, 1 M.2 A Key
- High-Availability Storage: Accommodating 4x 2.5-inch hot-swap drive bays and more 4 x bays by project support.
- Versatile I/O: Rich 4 Intel 2.5GbE, 4 USB 3.2 Gen2, 4 USB 3.2 Gen1 and 6 COM, 2 USB 2.0 support by project
- Quad Displays: VGA, 2 DP++, HDMI
System
- Processor
- Intel® Bartlett Lake-S Hybrid LGA 1700 Socket Processors Intel® Core™ 7 251E (24 Cores, 36M Cache, up to 5.6 GHz); 65W Intel® Core™ 7 251TE (24 Cores, 36M Cache, up to 5.4 GHz); 45W Intel® Core™ 5 221E (14 Cores, 24M Cache, up to 5.2 GHz); 65W Intel® Core™ 5 221TE (14 Cores, 24M Cache, up to 5.0 GHz); 45W Intel® Core™ 5 211E (10 Cores, 20M Cache, up to 4.9 GHz); 65W Intel® Core™ 5 211TE (10 Cores, 20M Cache, up to 4.8 GHz); 45W Intel® Core™ 3 201E (4 Cores, 12M Cache, up to 4.8 GHz); 60W Intel® Core™ 3 201TE (4 Cores, 12M Cache, up to 4.6 GHz); 45W Intel® 300 (2 Cores, 6M Cache, up to 3.9 GHz); 45W Intel® 300T (2 Cores, 6M Cache, up to 3.4 GHz); 35W 14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W Intel® Core™ I9-14901E (8 Cores, 36M Cache, up to 5.6 GHz); 65W Intel® Core™ I5-14401E (6 Cores, 24M Cache, up to 4.7 GHz); 65W Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5 GHz); 65W Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 4.7 GHz); 65W Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W Intel® 300 (2 Cores, 6M Cache, up to 3.9 GHz); 46W Intel® 300T (2 Cores, 6M Cache, up to 3.4 GHz); 35W 13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 65W Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W 12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W
- Chipset
- [RM645-RPS630 (R680E)] Intel® R680E Chipset [RM645-RPS630 (Q670E)] Intel® Q670E Chipset
- Memory
- [RM645-RPS630 (R680E)] Four 288-pin UDIMM up to 192GB (ECC/Non-ECC) [RM645-RPS630 (R680E)] Dual Channel DDR5 up to 4400 MHz [RM645-RPS630 (Q670E)] Four 288-pin UDIMM up to 192GB (Non-ECC) [RM645-RPS630 (Q670E)] Dual Channel DDR5 up to 4400 MHz
Graphics
- Controller
- Intel® UHD Graphics 700 series
- Feature
- OpenGL 4.5, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
- Display
- 1 x VGA 2 x DP++ 1 x HDMI 2.0a VGA: resolution up to 1920x1200 @ 60Hz DP++: resolution up to 4096x2304 @ 60Hz HDMI: resolution up to 4096x2160 @ 24Hz
- Quad Displays
- VGA + 2 DP++ + HDMI
Storage
- External
- 4 x 2.5" hotswap bay
Expansion
- M.2
- [RM645-RPS630 (R680E)] 1 x M.2 2230 E key (PCIe/USB 2.0/Intel CNVi/Wifi 6E) [RM645-RPS630 (R680E)] 1 x M.2 A key for M2-OOB [RM645-RPS630 (R680E)] 1 x M.2 2242/2260/2280 M key (PCIe x4 Gen4 NVMe, SATA) [RM645-RPS630 (R680E)] 1 x M.2 2242/2260/2280 M key (default, PCIe x4 Gen3 NVMe share PCIe#6, function selected by BIOS) [RM645-RPS630 (Q670E)] 1 x M.2 2230 E key (PCIe/USB 2.0/Intel CNVi/Wifi 6E) [RM645-RPS630 (Q670E)] 1 x M.2 2242/2260/2280 M key (PCIe x4 Gen4 NVMe, SATA) [RM645-RPS630 (Q670E)] 1 x M.2 2242/2260/2280 M key (default, PCIe x4 Gen3 NVMe share PCIe#6, function selected by BIOS)
- PCIe
- 2 x PCIe x16 (Gen4, 16 or 8+8) - Support PCIE1/PCIE4: single at x16(PCIE1) - Support PCIE1/PCIE4: dual at x8(PCIE1)/x8(PCIE4) - Support PCIE1: Riser card x16 or x8/x8 selected by BOM change 3 x PCIe x4 (Gen 4, open edge) 1 x PCIe x4 (Gen 3, open edge, opt. share M.2-M2, function selected by BIOS.) 1 x PCI
Audio
- Audio Codec
- Realtek ALC888S
Ethernet
- Controller
- [RM645-RPS630 (R680E)] 1 x Intel® I226-LM (Core i9/i7/i5 support iAMT) [RM645-RPS630 (R680E)] 1 x Intel® I210-AT (co-lay I226-V) [RM645-RPS630 (R680E)] 2 x Intel® I226-V [RM645-RPS630 (Q670E)] 1 x Intel® I226-LM (Core i9/i7/i5 support iAMT) [RM645-RPS630 (Q670E)] 1 x Intel® I226-V
Front I/O
- Ethernet
- [RM645-RPS630 (R680E)] 3 x 2.5GbE (RJ-45) [RM645-RPS630 (R680E)] 1 x 1GbE (RJ-45, opt. 2.5GbE) [RM645-RPS630 (Q670E)] 2 x 2.5GbE (RJ-45)
- USB
- 4 x USB 3.2 Gen2 4 x USB 3.2 Gen1
- Display
- 1 x VGA 2 x DP++ 1 x HDMI
- Audio
- 1 x Line-out 1 x Mic-in 1 x Line-in (opt.)
Cooling
- Fan
- 2x 12CM system Fan
Power
- Consumption
- TBD
- Supply
- ATX PS2/ Redundant (Opt)
OS Support
- Microsoft
- Windows 10 IoT Enterprise 64-bit Windows 11 LTSC
Environment
- Operating Temperature
- 0°C~40°C
Mechanism
- Construction
- Heavy Industrial Steel
- Mounting
- Rack mount kit
- Dimensions (W x H x D)
- 481.6 x 175.6 x 470.8mm
- Weight
- TBD
- Color
- Black
Country of Origin
- Country of Origin
- Taiwan
