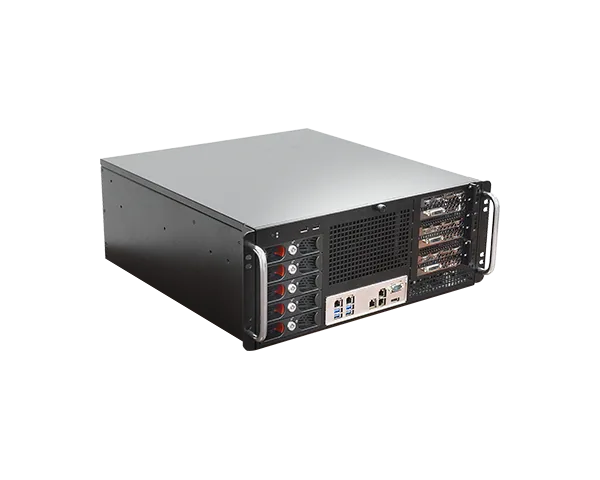

RM646-ERX810
Rackmount Edge-Server System for EATX, 5th/4th Gen Intel® Xeon® Scalable Family, ECC-RDIMM, DP, 3 PCIe x16, 1 M.2 M key, 4 GbE, 1 dedicated IPMI LAN, 4 USB 3.2, OOB remote management
- Powerful 4U Edge AI Server: High-Performance Computing at the Edge
- Dual 4th/5th Gen Intel® Xeon® Scalable processors for great AI computing
- Up to 3 dual-slot GPUs with PCIe Gen 5 support for accelerated AI computing
- 5 hot-swappable 3.5" drive bays for high-availability storage
- Versatile I/O: 4 GbE, 1 IPMI LAN, 4 USB 3.2, 1 DP, 1 M.2 2280 M-Key, 2 MCIO
- IPMI-based out-of-band management for remote system monitoring and control
Főbb jellemzők
Tanúsítványok
#DDR5
#Edge AI Computing
#M.2
#4th Gen Intel Xeon Scalable Family
#5th Gen Intel Xeon Scalable Family
#OOB
#Out-Of-Band (OOB)
#Intel
#1G Ethernet
#PCIe x16
#DP
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
#UKCA Certification
Főbb jellemzőkKey features
- Powerful 4U Edge AI Server: High-Performance Computing at the Edge
- Dual 4th/5th Gen Intel® Xeon® Scalable processors for great AI computing
- Up to 3 dual-slot GPUs with PCIe Gen 5 support for accelerated AI computing
- 5 hot-swappable 3.5" drive bays for high-availability storage
- Versatile I/O: 4 GbE, 1 IPMI LAN, 4 USB 3.2, 1 DP, 1 M.2 2280 M-Key, 2 MCIO
- IPMI-based out-of-band management for remote system monitoring and control
System
- Processor
- 5th Generation Intel® Xeon® Scalable Processor Family, LGA 4677 Socket: Intel® Xeon® Gold 6548Y+ Processor (32 Cores, 60 MB Cache, up to 4.1 GHz); 250W Intel® Xeon® Gold 6548N Processor (32 Cores, 60 MB Cache, up to 4.1 GHz); 250W Intel® Xeon® Gold 6538N Processor (32 Cores, 60 MB Cache, up to 4.1 GHz); 205W Intel® Xeon® Gold 6530 Processor (32 Cores, 160 MB Cache, up to 4 GHz); 270W Intel® Xeon® Gold 6526Y Processor (16 Cores, 37.5 MB Cache, up to 3.9 GHz); 195W Intel® Xeon® Gold 5520+ Processor (28 Cores, 52.5 MB Cache, up to 4 GHz); 205W Intel® Xeon® Gold 5515+ Processor (8 Cores, 22.5 MB Cache, up to 4.1 GHz); 165W Intel® Xeon® Silver 4516Y+ Processor (24 Cores, 45 MB Cache, up to 3.7 GHz); 185W Intel® Xeon® Silver 4514Y Processor (16 Cores, 30 MB Cache, up to 3.4 GHz); 150W Intel® Xeon® Silver 4510 Processor (12 Cores, 30 MB Cache, up to 4.1 GHz); 150W Intel® Xeon® Silver 4510T Processor (12 Cores, 30 MB Cache, up to 3.7 GHz); 115W Intel® Xeon® Silver 4509Y Processor (8 Cores, 22.5 MB Cache, up to 4.1 GHz); 125W 4th Generation Intel® Xeon® Scalable Processor Family, LGA 4677 Socket: Intel® Xeon® Gold 6448Y Processor (32 Cores, 60 MB Cache, up to 4.10 GHz); 225W Intel® Xeon® Gold 6438N Processor (32 Cores, 60 MB Cache, up to 3.60 GHz); 205W Intel® Xeon® Gold 6430 Processor (32 Cores, 60 MB Cache, up to 3.40 GHz); 270W Intel® Xeon® Gold 6428N Processor (32 Cores, 60 MB Cache, up to 3.80 GHz); 185W Intel® Xeon® Gold 6426Y Processor (16 Cores, 37.5 MB Cache, up to 4.10 GHz); 185W Intel® Xeon® Gold 6418H Processor (24 Cores, 60 MB Cache, up to 4.00 GHz); 185W Intel® Xeon® Gold 5420+ Processor (28 Cores, 52.5 MB Cache, up to 4.10 GHz); 205W Intel® Xeon® Gold 5418N Processor (24 Cores, 45 MB Cache, up to 3.80 GHz); 165W Intel® Xeon® Gold 5418Y Processor (24 Cores, 45 MB Cache, up to 3.80 GHz); 185W Intel® Xeon® Gold 5415+ Processor (8 Cores, 22.5 MB Cache, up to 4.10 GHz); 150W Intel® Xeon® Silver 4416+ Processor (20 Cores, 37.5 MB Cache, up to 3.90 GHz); 165W Intel® Xeon® Silver 4410T Processor (10 Cores, 26.25 MB Cache, up to 4.00 GHz); 150W Intel® Xeon® Silver 4410Y Processor (12 Cores, 30 MB Cache, up to 3.90 GHz); 150W
- Chipset
- Intel® C741 Chipset
- Memory
- 16 x ECC-RDIMM up to 1024GB DDR5 Max. 5600MHz
- BIOS
- Insyde
Graphics
- Controller
- BMC AST2600
- Display
- 1 x DP
Storage
- External
- 4 SATA 3.0 (RAID 0/1/5/10)
- Internal
- 1 M.2 2280 M key
Expansion
- Interface
- 3 x PCIe x16(Gen5)
Audio
- Audio Codec
- ALC888S
Ethernet
- Controller
- 4 x Intel® I210 IPMI: RTL8211F

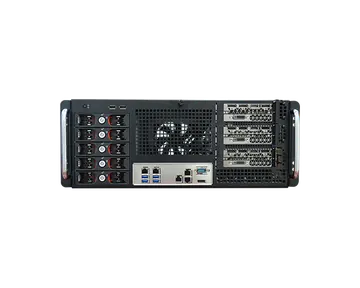

Front I/O
- Ethernet
- 4 x GbE 1 x Dedicated IPMI LAN
- Serial
- 1 x RS-232/422/485 (DB-9)
- USB
- 4 x USB 3.2 Gen1
- Display
- 1 x DP
- LED Indicators
- 1 x Power LED 1 x HDD LED
Button
- Buttons
- 1 x Power Button

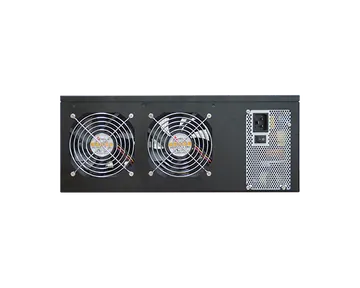

Cooling
- Fan
- 12 CM Fan x 2
Security
- TPM
- TPM 2.0
Power
- Supply
- ATX PS/2 or Mini Redundant PSU
Environment
- Operating Temperature
- 0~30°C support up to 250W 0~40°C support up to 205W
- Storage Temperature
- -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
- Relative Humidity
- 5 to 90% RH (non-condensing)
Mechanism
- Construction
- Heavy Industrial Steel
- Mounting
- Flexible hold down bar
- Dimensions (W x H x D)
- 431.8 x 175.6 x 449.8mm
- Weight
- TBD
- Color
- Black
Standards and Certifications
- Shock
- Operating: 3G Non-operating: 5G
- Vibration
- Operating: random 5~500Hz 1G Non-operating: sweep sine 10~500Hz 1.5G
- Package Drop
- ISTA Project 1A
- Certifications
- CE, FCC, RoHS, UKCA
Packing List
- Packing List
- • 1 RM646-ERX810 System Unit
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| RM646-ERX810 | TBD | TBD |
