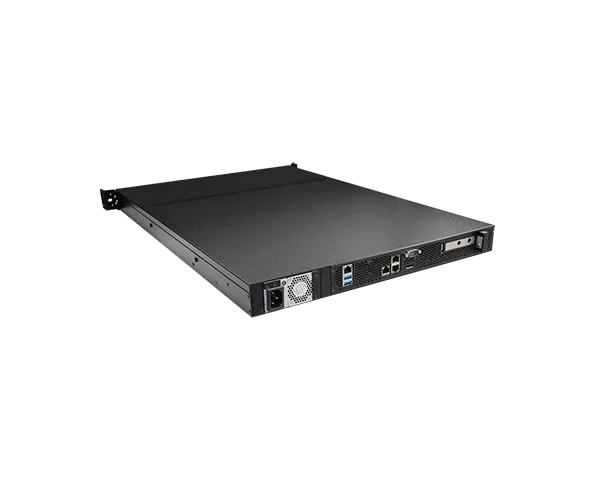

RM811-ERX610
Rackmount Edge-Server System, 5th/4th Gen Intel® Xeon® Scalable Family, ECC-RDIMM, DP, 1 PCIe x16, 2 M.2 M key, 1 GbE, 2 10GbE, 1 dedicated IPMI LAN, 2 USB 3.2, 1 COM, 0°C~40°C, IPMI, OOB
- Equipped with single 4th/5th Gen Intel® Xeon® Scalable processors for exceptional processing power.
- Supports single-slot GPU/IO card for enhanced graphics and I/O capabilities.

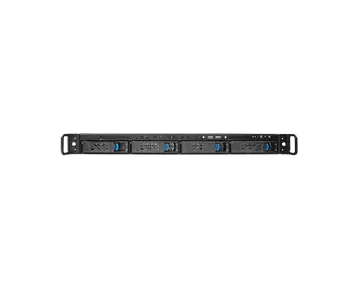

- Features four hot-swappable drive bays (3.5"/2.5”) for reliable, high-availability storage.
- Versatile I/O options: 1 GbE & 2 10GbE, 1 IPMI LAN, 2 USB 3.2, 1 DisplayPort, 2 M.2 2280 M-Key, and 1 COM.
- IPMI-based out-of-band management for seamless remote monitoring and control.
Főbb jellemzők
#DDR5
#M.2
#4th Gen Intel Xeon Scalable Family
#5th Gen Intel Xeon Scalable Family
#OOB
#Out-Of-Band (OOB)
#Windows 11
#Intel
#1G Ethernet
#PCIe x16
#Windows
#DP
#10G Ethernet
Főbb jellemzőkKey features
- Equipped with single 4th/5th Gen Intel® Xeon® Scalable processors for exceptional processing power.
- Supports single-slot GPU/IO card for enhanced graphics and I/O capabilities.
- Features four hot-swappable drive bays (3.5"/2.5”) for reliable, high-availability storage.
- Versatile I/O options: 1 GbE & 2 10GbE, 1 IPMI LAN, 2 USB 3.2, 1 DisplayPort, 2 M.2 2280 M-Key, and 1 COM.
- IPMI-based out-of-band management for seamless remote monitoring and control.
System
- Processor
- 5th Generation Intel® Xeon® Scalable Processor Family, LGA 4677 Socket, Intel® Xeon® Gold 5515+ Processor (8 Cores, 22.5 MB Cache, up to 4.1 GHz); 165W Intel® Xeon® Silver 4516Y+ Processor (24 Cores, 45 MB Cache, up to 3.7 GHz); 185W Intel® Xeon® Silver 4514Y Processor (16 Cores, 30 MB Cache, up to 3.4 GHz); 150W Intel® Xeon® Silver 4510 Processor (12 Cores, 30 MB Cache, up to 4.1 GHz); 150W Intel® Xeon® Silver 4510T Processor (12 Cores, 30 MB Cache, up to 3.7 GHz); 115W Intel® Xeon® Silver 4509Y Processor (8 Cores, 22.5 MB Cache, up to 4.1 GHz); 125W 4th Generation Intel® Xeon® Scalable Processor Family, LGA 4677 Socket, Intel® Xeon® Gold 5418N Processor (24 Cores, 45 MB Cache, up to 3.80 GHz); 165W Intel® Xeon® Gold 5415+ Processor (8 Cores, 22.5 MB Cache, up to 4.10 GHz); 150W Intel® Xeon® Silver 4416+ Processor (20 Cores, 37.5 MB Cache, up to 3.90 GHz); 165W Intel® Xeon® Silver 4410T Processor (10 Cores, 26.25 MB Cache, up to 4.00 GHz); 150W Intel® Xeon® Silver 4410Y Processor (12 Cores, 30 MB Cache, up to 3.90 GHz); 150W
- Chipset
- Intel® C741 Chipset
- Memory
- 8 x ECC-RDIMM up to 1024GB DDR5 Max. 5600MHz
- BIOS
- Insyde
Graphics
- Display
- 1 x DP
Storage
- External
- 4 x SATA 3.0 (RAID 0/1/5/10)
- Internal
- 2 x M.2 2280 M key
Expansion
- Interface
- 1 x PCIe x16 2 x M.2 2280 M key
Audio
- Audio Codec
- ALC888S
Ethernet
- Controller
- 1 x Intel® I210AT 2 x Intel® E610-XAT2 IPMI: RTL8211F
Front I/O
- Ethernet
- 1 x GbE 2 x 10GbE 1 x Dedicated IPMI LAN
- Serial
- 1 RS-232/422/485 (DB-9)
- USB
- 2 x USB 3.2 Gen1
- Display
- 1 x DP
- Audio
- Internal: Front Audio
- Buttons
- 1 x Power Button 1 x Reset Button
- LED Indicators
- 1 x Power LED 1 x HDD LED
Cooling
- Fan
- 5 x 4CM Fan
Power
- Type
- Slim Redundant
- Consumption
- TBD
OS Support
- OS Support
- Windows 11 LTSC Widows server 2022 LTSC
Environment
- Operating Temperature
- 0°C to 40°C: CPU up to TBD W 0°C to 35°C: CPU up to TBD W
Mechanism
- Construction
- Heavy Industrial Steel
- Mounting
- Rack mount kit
- Dimensions (W x H x D)
- 438 x 44 x 673.2mm
- Weight
- TBD
- Color
- Black
Standards and Certifications
- Certifications
- TBD
Country of Origin
- Country of Origin
- Taiwan
