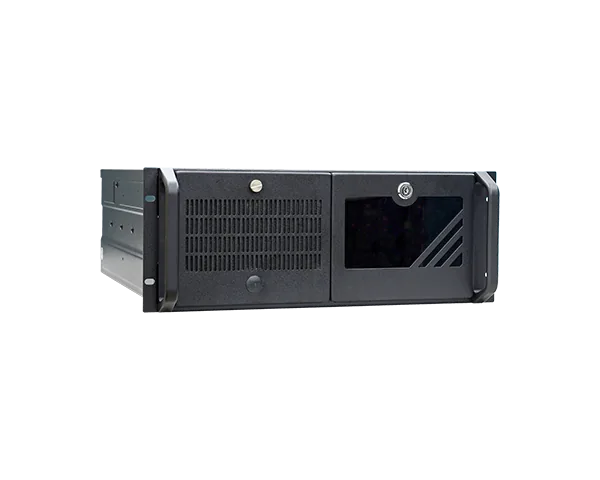

RM840-PR810
4U Rackmount Box IPC, 1st/2nd Gen Intel® Xeon®, 4 PCIe x16, 1 PCIe x8, 1 PCI, 1 M.2 M Key, 1 VGA
- Supports dual Intel® 1st/2nd Xeon® Scalable processors
- Equipped with 12 DDR4 RDIMM slots and up to 384GB
- Flexible expansion options: 4 PCIe x16, 1 PCIe x8, 1 PCI, and 1 M.2 M-Key slot
- Rich I/O : 2 Intel 10GbE, 2 Intel GbE, 2 COM, 8 SATA 3.0, 5 USB 2.0, 6 USB 3.1 Gen1
- Front-accessible storage bays and USB interfaces for easy maintenance and connectivity
- Long-term availability with 15-year CPU lifecycle support through Q3 2033 (per Intel IOTG roadmap)
Főbb jellemzők
Tanúsítványok
#Intel
#PCIe x16
#Windows
#Linux
#VGA
#Multiple Expansion
#10G Ethernet
#DDR4
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- Supports dual Intel® 1st/2nd Xeon® Scalable processors
- Equipped with 12 DDR4 RDIMM slots and up to 384GB
- Flexible expansion options: 4 PCIe x16, 1 PCIe x8, 1 PCI, and 1 M.2 M-Key slot
- Rich I/O : 2 Intel 10GbE, 2 Intel GbE, 2 COM, 8 SATA 3.0, 5 USB 2.0, 6 USB 3.1 Gen1
- Front-accessible storage bays and USB interfaces for easy maintenance and connectivity
- Long-term availability with 15-year CPU lifecycle support through Q3 2033 (per Intel IOTG roadmap)
System
- Processor
- 1st Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket: Intel® Xeon® Platinum 8160T (24 Cores, 27.5M Cache, up to 3.7 GHz); 150W Intel® Xeon® Gold 6138T (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6138 (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6130T (16 Cores, 22M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6130 (16 Cores, 22M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6126T (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6126 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 5120T (14 Cores, 19.25M Cache, up to 3.2 GHz); 105W Intel® Xeon® Gold 5119T (14 Cores, 19.25M Cache, up to 3.2 GHz); 85W Intel® Xeon® Gold 5118 (12 Cores, 16.5M Cache, up to 3.2 GHz); 105W Intel® Xeon® Silver 4116T (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W Intel® Xeon® Silver 4116 (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W Intel® Xeon® Silver 4114T (10 Cores, 13.75M Cache, up to 3.0 GHz); 85W Intel® Xeon® Silver 4110 (8 Cores, 11M Cache, up to 3.0 GHz); 85W Intel® Xeon® Silver 4109T (8 Cores, 11M Cache, up to 3.0 GHz); 70W Intel® Xeon® Bronze 3106 (8 Cores, 11M Cache, 1.7 GHz); 85W 2nd Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket: Intel® Xeon® Gold 6252N (24 Cores, 35.75M Cache, up to 3.6 GHz); 150W Intel® Xeon® Gold 6238T (22 Cores, 30.25M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6230T (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W Intel® Xeon® Gold 6230N (20 Cores, 27.5M Cache, up to 3.5 GHz); 125W Intel® Xeon® Gold 6230 (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W Intel® Xeon® Gold 6226 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 5220T (18 Cores, 24.75M Cache, up to 3.9 GHz); 105W Intel® Xeon® Gold 5218T (16 Cores, 22M Cache, up to 3.8 GHz); 105W Intel® Xeon® Gold 5218N (16 Cores, 22M Cache, up to 3.7 GHz); 110W Intel® Xeon® Gold 5215 (10 Cores, 13.75M Cache, up to 3.4 GHz); 85W Intel® Xeon® Silver 4216 (16 Cores, 22M Cache, up to 3.2 GHz); 100W Intel® Xeon® Silver 4215 (8 Cores, 11M Cache, up to 3.5 GHz); 85W Intel® Xeon® Silver 4214 (12 Cores, 16.5M Cache, up to 3.2 GHz); 85W Intel® Xeon® Silver 4210 (10 Cores, 13.75M Cache, up to 3.2 GHz); 85W Intel® Xeon® Silver 4209T (8 Cores, 11M Cache, up to 3.2 GHz); 70W
- Chipset
- Intel® C622 Chipset
- Memory
- 12 x 288-pin RDIMM up to 384GB Single Channel DDR4 up to 2133/2400/2666/2933 MHZ (Support Intel DC Persistent Memory)
- BIOS
- Insyde
Graphics
- Controller
- SEM2500
- Feature
- IPMI
- Display
- 1 x VGA (opt.)
Storage
- External
- External 2x 5.25” (option change 1x 2.5” by covert bracket) External 1x 3.5” (option change 1x 2.5” by covert bracket)
- Internal
- 1 M.2 M Key2280 (PCIe Gen3 x4 NVMe/SATA)
- Interface
- 4 x PCIe x16 (Gen 3) 1 x PCIe x8 (Gen 3) 1 x PCI 1 x BMC Module slot for SEM2500/2510 (IPMI) 1 x 100GbE slot (x4 + x8) for EXT-100GbE proprietary module
Audio
- Audio Codec
- ALC888
- Interface
- Onboard Front Audio Pin Header
Ethernet
- Controller
- 2 x Intel® I210AT (10/100/1000Mbps) 1 x Intel® x557-AT2 (10GbE)

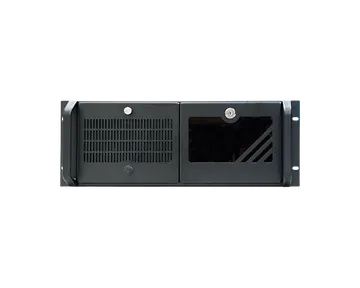

Front I/O
- Buttons
- 1 x Power Button 1 x Reset Button
- LED Indicators
- 1 x Power LED 1 x HDD LED

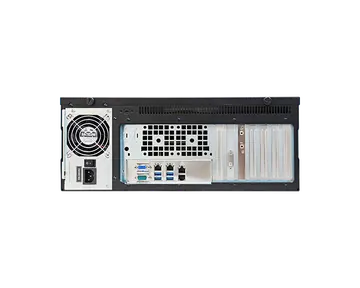

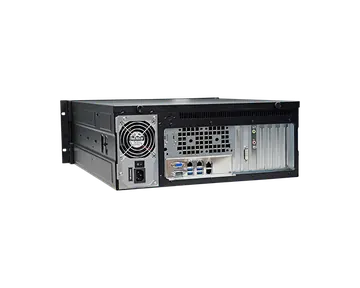

Rear I/O
- Ethernet
- 2 x GbE (RJ-45) 2 x 10 GbE x557-AT2 IPMI 2.0: 1 share w/ i210AT (opt.)
- Serial
- 1 x RS-232 (DB-9)
- USB
- 4 x USB 3.1 Gen1 2 x USB 2.0 stack (opt.w/ RJ45+USB2.0 stack)
- Display
- 1 x VGA (opt.)
- Audio
- Onboard Front Audio Pin Header
- Cutout
- DB-9 x 2
Button
- Buttons
- 1 x Power Button 1 x Reset Button
Cooling
- Fan
- 2 x (90mm = 51.0CFM) Fans
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Infineon TPM2.0 (opt.)
Power
- Supply
- ATX PS/2 Power Supply 650W
OS Support
- Microsoft
- Windows 10 IoT Enterprise LTSB RS5(64-bit) Windows Server 2019 Windows Server 2016
- Linux
- Linux
Environment
- Operating Temperature
- 0 to 40°C
- Storage Temperature
- -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
- Relative Humidity
- 5 to 90% RH (non-condensing)
Mechanism
- Dimensions
- 483 x 177 x 510 mm
- Construction
- Heavy Industrial Steel
- Mounting
- Flexible hold down bar
- Weight
- 17.9kg
- Color
- Black
Standards and Certifications
- Shock
- Operating: 3G Non-operating: 5G
- Vibration
- Operating: random 5~500Hz 1G Non-operating: sweep sine 10~500Hz 1.5G
- Package Drop
- ISTA Project 1A
- Certifications
- CE, FCC class A
Packing List
- Packing List
- · 1 RM840-PR810 System Unit · 2 CPU Cooler (LGA3657, 205W) · 2 SATA Cable (650mm, with Lock) · 2 System Fan (90mm, 51.0CFM ea)
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| RM840-PR810-C222IR | 750-RM8400-000G | RM840-PR810:4U Rackmount System PR810-C222IR, Dual CPU cooler, 650W, F/G RoHS |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
