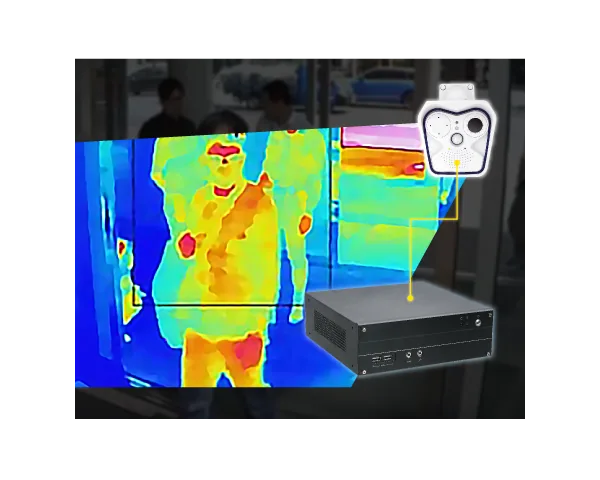

Thermography Solutions
DFI’s smart thermal control system provides non-contact thermal detection with advanced embedded system and IP cameras.
- Non-contact and multiple persons fever detection
- Real time warning by video, sound, flash, message for over temperature
- Temperature reading recorded and easy searching for abnormal events
- API ready for heterogeneous system integration
- Accurate temperature reading (±0.5℃)
#IoT
#Windows
#HDMI
#DDR4
Főbb jellemzőkKey features
- Non-contact and multiple persons fever detection
- Real time warning by video, sound, flash, message for over temperature
- Temperature reading recorded and easy searching for abnormal events
- API ready for heterogeneous system integration
- Accurate temperature reading (±0.5℃)
Intelligent NVR system
- Model Name
- ST102-CS Box PC
- CPU
- 8th Gen Intel® Core™ i3-8100T Processor
- Memory
- DDR4 SODIMM 4GB
- Storage
- 1x 2.5” SATA 3.0 Drive bay
- I/O
- 2 GbE, 6 USB, 2 x DP++, 1 x HDMI, 1 x optional slim ODD bay
- Power
- 12V DC
- Operating Temperature
- -5 to 55°C
- OS Support
- Windows 10 IoT Enterprise
- Warranty
- Long life-cycle support, 2 years warranty
iMage-EV
- Thermal Imaging Camera
- Single Person Fever Detection
- Image Streaming Format
- H.264/H.265/MJPEG
- Resolution
- RGB: 1600 x 1200 pixels IR: 160 x 120 pixels
- Image Mode
- Thermal / Visual
- NETD
- <40mK
- Accuracy
- Max. ±2%
- Temperature Range
- -20°C to 150°C
- Encapsulation
- IP67
- Temperature Measurement
- Set up Detection Zones / points (up to 10 zones / 10 points)
iMage-M
- Thermal Imaging Camera
- Multi-Person Fever Detection
- Imaging Elements
- RGB: 1/1.8" 6M CMOS / line-by-line scan Thermal: Uncooled microbolometer ( Infrared Range: 7.5 to 13.5μ m ))
- Resolution
- RGB: 6 million (3072x2048) IR: 336 x 252 pixels
- Image Streaming Format
- MxPEG / MJPEG / H.264
- Min. Illusion
- RGB: 0.1 lux, 1/60 second
- Thermal Image
- Temperature scale or black/white
- NETD
- Standard: 50mK，<79mK （50mK means that temperature change is 0.05℃）
- Accuracy
- ±0.5℃ (2.5 ~5m fixed distance)
- Object temperature range
- High sensitivity: -40 to 160°C Low sensitivity: -40 to 550°C
- Detection Area
- Up to 20 boxes
- Encapsulation
- Body: IP66 / IK06 Lens: IP66 / IK04 (B016 equal to IK06)
iMage-F
- Thermal Imaging Camera
- Multi-Face Fever Detection
- Resolution
- RGB: 2688 x 1520 IR: 384 x 288 pixels
- Image Streaming Format
- H.264/H.265/MJPEG
- Encapsulation
- IP66
- NETD
- <40mK
- Accuracy
- ±0.5℃ (2.5 to 5m)
- Object temperature range
- 30°C to 45°C
- Detect object
- Human face temperature, up to 30 persons
- Image Modes
- Thermal, Visual, MSX (IR-image with enhanced detail presentation)
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| iMAGE-EV | TBD | Camera TK009 and ST102-CS with Core i3- 8100T, 4GB DDR4, 2.5” 500GB HDD, Windows 10 IoT ENT 2019 with EZPro Video management software |
| iMAGE-M | TBD | Camera TK116 and ST102-CS with Core i3- 8100T, 8GB DDR4, 2.5” 500GB HDD, Windows 10 IoT ENT 2019 with EZPro Video management software |
| iMAGE-F | TBD | Camera TK130 and ST102-CS with Core i3- 8100T, 8GB DDR4, 2.5” 500GB HDD, Windows 10 IoT ENT 2019 with EZPro Video management software |
