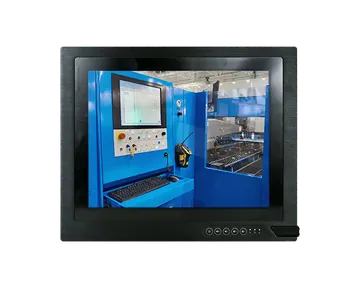

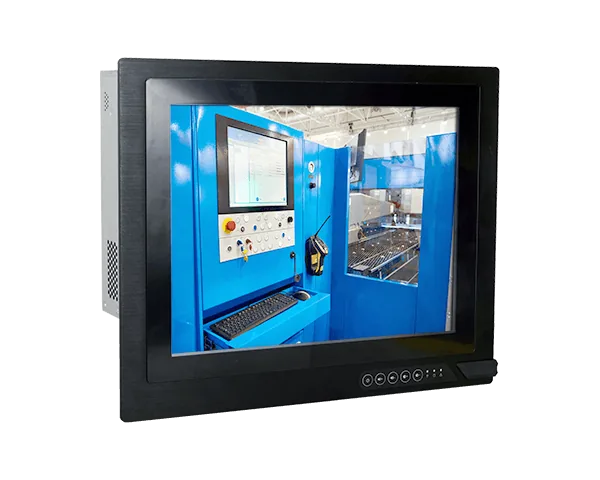

TPC150-RPS
15" Heavy Industrial Touch Panel PC, 14th/13th/12th Gen Intel® Core™, DDR5, 1 PCIe x16, 1 M.2 M key, 1 M.2 E key, 1 DP++, 1 HDMI, 1 VGA, 2 GbE, 2 COM, 6 USB 3.2 Gen1, Line-out (opt.), 2 2.5" SATA drive bays
- 15" 1024x768 TFT LCD Panel with Touch Screen
- 2 x 2.5" SATA drive bays
- 2 DDR5 SODIMM up to 64GB
- Three Display Support: 1 DP++, 1 HDMI, 1 VGA
- Rich I/O: 2 GbE, 2 COM, 6 USB 3.2 Gen1, Line-out (opt.)
- VESA/Panel Mount
Főbb jellemzők
Tanúsítványok
#TPC
#12th Gen Intel® Core™ Processor
#DDR5
#13th Gen Intel® Core™ Processor
#M.2
#14th Gen Intel® Core™ Processor
#IoT
#Intel
#IP65 Front Panel Protection
#PCIe x16
#Windows
#Linux
#HDMI
#VGA
#DP
#Multiple Expansion
#CE Certification
#FCC Certification
#High-Performance
Főbb jellemzőkKey features
- 15" 1024x768 TFT LCD Panel with Touch Screen
- 2 x 2.5" SATA drive bays
- 2 DDR5 SODIMM up to 64GB
- Three Display Support: 1 DP++, 1 HDMI, 1 VGA
- Rich I/O: 2 GbE, 2 COM, 6 USB 3.2 Gen1, Line-out (opt.)
- VESA/Panel Mount
System
- Processor
- 14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5 GHz); 65W Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W 13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 3.3 GHz); 60W Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W 12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W
- Memory
- 2x 262-pin SODIMM up to 64GB Dual Channel DDR5 4800MHz (ECC supported w/ i7&i5, Non-ECC supported)
Display and Touch Screen
- Display
- 15" 1024x768 TFT LCD Panel with Projected Capacitive Touch and Resistive Touch Screen
- Brightness
- 300 cd/m²
- View Angle
- 176 (H) / 176 (V)
- Backlight Lifetime
- 50,000 MTBF LED Backlight
Storage
- Internal
- 2 x 2.5" SATA 2.0 Drive Bay
Expansion
- Interface
- 1 x PCIe Gen 5 x16 (Bifircation 1 x16, 2 x8) 1 x M.2 2230 E Key (PCIE Gen3x1 and USB2.0, support Intel® CNVi) 1 x M.2 2280 M Key (PCIE Gen 3x4 or SATA3), support NVMe

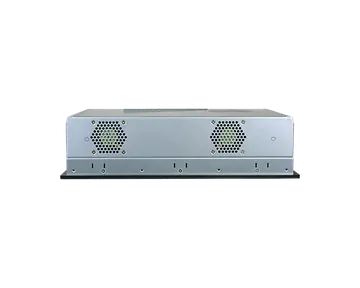

Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- Serial
- 2 x RS-232/422/485
- USB
- 6 x USB 3.2 Gen1
- Display
- 1 x DP++ 1 x HDMI 1 x VGA
- Audio
- 1 x Line-out (available upon request)
Power
- Type
- 100-240VAC
- Connector
- C14 Connector
- Consumption
- TBD
OS Support
- Microsoft
- Windows 10 IoT Enterprise 64-bit Windows 11 LTSC
- Linux
- Linux
Environment
- Operating Temperature
- 0 to 50°C
- Storage Temperature
- -30 to 70°C
- Relative Humidity
- 10% to 90% @ 40°C (non-condensing)
Mechanism
- Construction
- Sheet Metal
- IP Rating
- IP65 front bezel
- Mounting

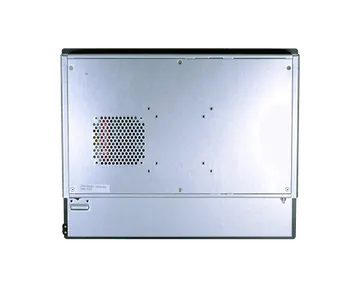

- Panel/VESA (75x75/100x100) Mount
- Dimensions (W x H x D)
- 403 x 330 x TBD mm
- Weight
- TBD
Standards and Certifications
- Certifications
- CE / FCC Class A
Packing List
- Packing List
- • 1 TPC150-RPS Touch Panel PC • 1 Quick Installation Guide
Country of Origin
- Country of Origin
- Taiwan
