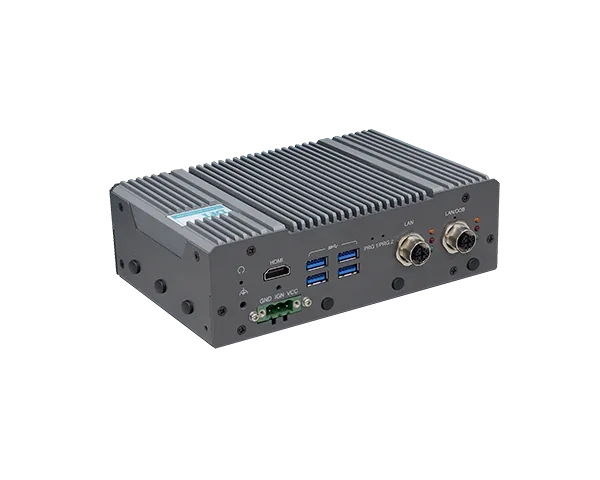

VC700-ASL
Fanless, Intel Atom® Processor Amston Lake Series, 9-asix IMU Sensor, 2 M12 GbE, 2 COM, 2 CAN Bus, 8bit DIO, 4 USB 3.2, 40°C~70°C, Win 11, Linux, 9~36V
- Intel Atom® Amston Lake x7835RE 8-core 1.3GHz/3.6GHz 12W processor
- Build-in OOB to support remote management
- Build-in 9 axis sensor for driver detection within fleet management
- 2 x Mini-PCIe and 3 M.2 sockets for CAN bus/GPS/LTE/5G/WiFi/Storage modules
- Build-in Audio Amp to driver 10W speaker
- 2.5KV Isolated 8bits DIO ports
- Wide voltage: 9~36V vehicle power input with ACC/IGN function
Főbb jellemzők
Tanúsítványok
#Windows 10
#9~36V DC-in
#LPDDR5
#Nuvoton
#M.2
#eMMC
#E-Mark (E24) Certification
#ITxPT Certification
#Out-Of-Band (OOB)
#Intel Atom® Amston Lake Processors
#Windows 11
#Intel
#SIM Slot
#Compact PC
#Fanless Design
#Compact Size
#4K2K Display
#Windows
#Linux
#HDMI
#DP
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
#In-Vehicle
#UKCA Certification
Főbb jellemzőkKey features
- Intel Atom® Amston Lake x7835RE 8-core 1.3GHz/3.6GHz 12W processor
- Build-in OOB to support remote management
- Build-in 9 axis sensor for driver detection within fleet management
- 2 x Mini-PCIe and 3 M.2 sockets for CAN bus/GPS/LTE/5G/WiFi/Storage modules
- Build-in Audio Amp to driver 10W speaker
- 2.5KV Isolated 8bits DIO ports
- Wide voltage: 9~36V vehicle power input with ACC/IGN function
System
- Processor
- Intel® Atom X7000RE processors (Code Name : Amston Lake) Intel® Atom Processor x7835RE, 8 Cores, 1.3~3.6GHz, 12W Intel® Atom Processor x7433RE, 4 Cores, 1.5~3.4GHz, 9W Intel® Atom Processor x7211RE, 2 Cores, 1.0~3.2GHz, 6W
- Memory
- 4GB/8GB LPDDR5 5200 Memory down
- BIOS
- AMI SPI 64Mbit
Graphics
- Controller
- Intel® HD Graphics
- Feature
- Execution Units: Up to 32 Eus 3D API: Open GL 4.6, DirectX12, Vulkan 1.2 (Windows) / Mesa 3D,OpenGL 4.6, Vulkan 1.2 (Linux) Precision: FP32, FP16, INT8 Compute: OpenCL 3.0
- Display
- 1 x HDMI 1.4b (resolution up to 4096x2160 @ 24Hz) 1 x DP++ (resolution up to 4096x2160@24Hz)
Storage
- External

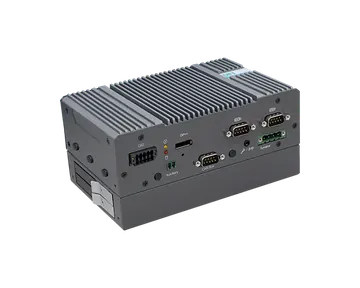

- 2 x swappable 2.5" SATA drive bays (option)
- Internal
- eMMC 64GB or 128GB (Removeable)
Expansion
- Interface
- 1 x M.2 2230 A+E key (USB 2.0/PCIe) 1 x M.2 3042/3052 B key (USB 3.0/USB 2.0/PCIe) with Nano SIM 1 x M.2 2242/2280 B+M key (PCIe/SATA) 2 x Mini-PCIe (1 Half; 1 Full) (USB 2.0)
Ethernet
- Controller
- 2 x Intel Ethernet controller i210 GbE
- Interface
- 2 x GbE (M12 X-code)
GNSS
- GNSS
- Support GPS, QZSS, Gallileo, GLONASS, BeiDou by u-blox NEO-M9N Dead reckoning support upon request
LED
- Indicators
- 1 x Power LED 1 x Storage LED 2 x Programmable LED (Green, Blue)
Sensor
- Sensor
- SENSOR Sensor 9 axis IMU (3 Accelerometer + 3 Gyroscope + 3 Magnetometer)

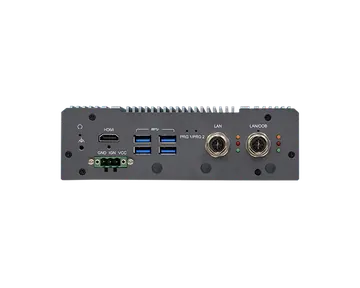

Front I/O
- Ethernet
- 2 x GbE (M12 X-code) 1 share with OOB
- USB
- 4 x USB 3.2 type A
- Display
- 1 x HDMI
- Buttons
- 1 x Reset button
- Antenna
- 3 x Fakra antenna holes

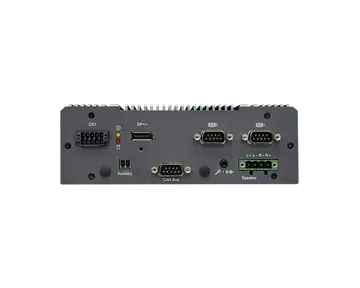

Rear I/O
- Serial
- 2 x RS-232/422/485 (DB9-M)
- DIO
- Isolated 8 bits DIO with 2.5KV isolation Input voltage: 0 to 30VDC Output current: 50mA pre pin and Max. 200mA total On-state voltage: 12VDC nominal, open collector to 30VDC.
- Display
- 1 x DP++
- Audio
- Stereo speaker with Amplifier to drive 10W speaker (4 pin Terminal) 1 x 3.5mm Line out/Mic In
- Antenna
- 2 x Fakra antenna holes
- CANBus
- 2 x CAN 2.0B (DB9-M) (CAN FD by request) Support J1939
Side I/O
- Antenna Hole
- 3 x Fakra antenna holes 3 x Fakra antenna holes
Watchdog Timer
- Output & Interval
- System reset, programmable via software from 1 to 255 seconds
Security
- TPM
- TPM 2.0 (NUVOTON)
Power
- Type
- Wide range 9~36V with ignition control
- Connector
- 3-pole terminal block
OS Support
- Microsoft
- Windows 10/11
- Linux
- Linux Ubuntu 22.04
Environment
- Temperature
- Operating: -40 to 70°C Storage: -40 to 85°C
Mechanism
- Construction
- Aluminum + SPGC Metal
- Mounting
- Wall mount
- Dimensions (W x H x D)
- 182.4mm x 61.5mm x 118.4mm 182.4mm x 93.5mm x 118.4mm (2.5" SATA drive bays)
- Weight
- TBD
- Color
- Black
Standards and Certifications
- Shock
- Operating/non-operating: MIL-STD-810G Method 516.6, Procedure 1
- Vibration
- Operating/non-operating: MIL-STD-810G Method 514.6, Category 4
- Certifications
- CE, FCC, E-Mark (E24), ITxPT, RoHS, UKCA (To be updated)
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| VC700-ASL | 750-VC70000-000G | x7835RE, 8GB LPDDR5, 1 HDMI, 1 DP++, 2 LAN-M12, 4 USB 3.1, 2 CAN, 1 DIO, 2 COM, 1 Speaker, TPM 2.0 |
| VC700-ASL | 750-VC70000-100G | x7835RE, 4GB LPDDR5, 1 HDMI, 1 DP++, 2 LAN-M12, 4 USB 3.1, 2 CAN, 1 DIO, 2 COM, 1 Speaker, TPM 2.0 |
| VC700-ASL | 750-VC70000-200G | x7433RE, 4GB LPDDR5, 1 HDMI, 1 DP++, 2 LAN-M12, 4 USB 3.1, 2 CAN, 1 DIO, 2 COM, 1 Speaker, TPM 2.0 |
| VC700-ASL | 750-VC70000-300G | x7211RE, 8GB LPDDR5, 1 HDMI, 1 DP++, 2 LAN-M12, 4 USB 3.1, 2 CAN, 1 DIO, 2 COM, 1 Speaker, TPM 2.0 |
| VC700-ASL | 750-VC70000-400G | x7835RE, 8GB LPDDR5, 1 HDMI, 1 DP++, 2 LAN-M12, 4 USB 3.1, 2 CAN, 1 DIO, 2 COM, 1 Speaker, TPM 2.0, 2 2.5" SSD |
