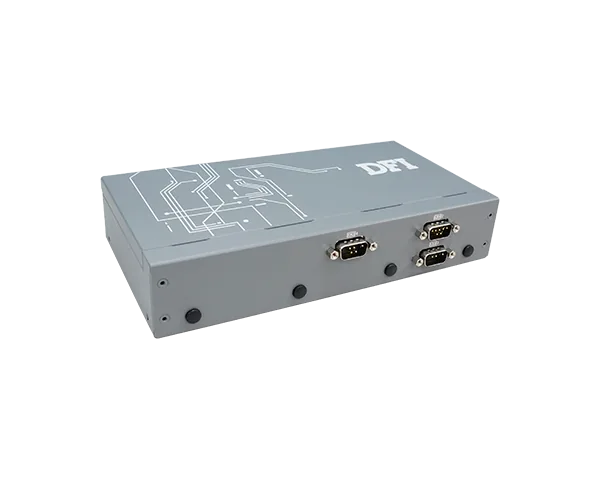

VC900-M8M
VC900-M8M, In-vehicle System with NXP i.MX8M processors. As an Android system based on the ARM platform, it reduces deployment costs on software. It is ideal for vehicle dispatch, fleet management, and IoT edge computing applications.
- ARM-Based in-vehicle system: Support Yocto Linux 2.5 and Android 9.0
- NXP i.MX8M
- 6 axis IMU (3 Accelerometer + 3 Gyroscope)
- Rich I/O: 1 GbE, 4 COM, 1 CAN Bus, 2 USB 3.1 Gen1, 1 Micro USB (OTG)
- Wide voltage: 9~36V vehicle power input with ACC/IGN function
- Wide temperature: -20°C~70°C operation without active fan
Főbb jellemzők
Tanúsítványok
#Edge AI Computing
#NXP
#E-Mark (E24) Certification
#CAN-Bus
#Fanless Design
#Compact Size
#1G Ethernet
#Linux
#Android
#HDMI
#RoHS Certification
#CE Certification
#FCC Certification
#In-Vehicle
#UKCA Certification
#NXP i.MX 8M
Főbb jellemzőkKey features
- ARM-Based in-vehicle system: Support Yocto Linux 2.5 and Android 9.0
- NXP i.MX8M
- 6 axis IMU (3 Accelerometer + 3 Gyroscope)
- Rich I/O: 1 GbE, 4 COM, 1 CAN Bus, 2 USB 3.1 Gen1, 1 Micro USB (OTG)
- Wide voltage: 9~36V vehicle power input with ACC/IGN function
- Wide temperature: -20°C~70°C operation without active fan
System
- Processor
- NXP i.MX8M Quad, Cortex-A53 1.3GHz (by model) NXP i.MX8M Dual, Cortex-A53 1.3GHz (by model)
- Memory
- On board memory 2GB/4GB (by model) Single channel LPDDR4 up to 3200 MHz
Graphics
- Display
- 1 x HDMI resolution up to 1920x1080 @ 60 Hz
Storage
- External
- Micro SD card slot
- Internal
- eMMC 5.1 16GB on board, support up to 64GB (optional)
Expansion
- M.2
- 1 x M.2 2242/3042 B Key (USB 3.1 Gen1), Nano SIM Slot support 1 x M.2 2230 E Key (PCIex1/USB2.0)
LED
- Indicators
- 1 x Status LED
Sensor
- Sensor
- 6 axis IMU (3 Accelerometer + 3 Gyroscope)

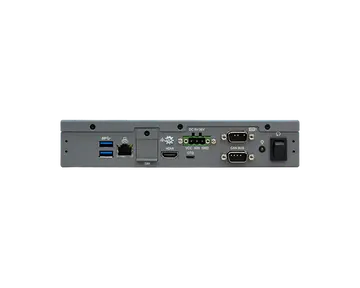

Front I/O
- Ethernet
- 1 x Giga LAN, RJ-45
- Serial
- 1 x RS-232/422/485 (COM1)
- USB
- 2 x USB 3.0, type A 1 x OTG, micro USB
- Display
- 1 x HDMI
- Audio
- with Amplifier to support 2W speaker (optional) 1 x Line-out & 1 x MIC-in (internal header)
- Buttons
- 1 x Power reset button
- CANBus
- 1 x CANbus, DB-9

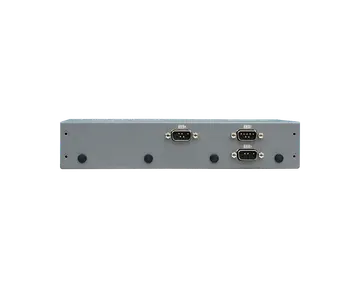

Rear I/O
- Serial
- 1 x RS-232(TX,RX,RTS,CTS) (COM2) 2 x RS-232(TX,RX) (COM3/COM4)
- Antenna
- 4 x Antenna holes for LTE 4G, WiFi and GPS
Power
- Type
- Wide range 9~36V with ACC/IGN function
- Connector
- 3-pole terminal block
OS Support
- Linux
- Yocto Linux 2.5
- Android
- Android 9.0 (option)
Environment
- Operating Temperature
- -20 to 70°C
- Storage Temperature
- -40 to 85°C
- Relative Humidity
- 10 to 90% RH (non-condensing)
Mechanism
- Construction
- Sheet Metal
- Mounting
- DIN-Rail mount Wall mount
- Dimensions (W x H x D)
- 220 x 122 x 43mm
- Weight
- 1.9kg
- Color
- Black
Standards and Certifications
- Shock
- Operating/non-operating: MIL-STD-810G Method 516.6, Procedure 1
- Vibration
- Operating/non-operating: MIL-STD-810G Method 514.6, Category 4
- Certifications
- CE, FCC, E-Mark (E24), RoHS, UKCA
Packing List
- Packing List
- · 1 x VC900-M8M system unit · 1 x Wall mount bracket/screw pack · 1 x Quick installation guide
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| VC900-M8M | 750-VC9000-000G | VC900-M8M: Fanless, i.MX8M Quad, 4GB memory, 16GB eMMC, 1 LAN, 1 HDMI, 1 CAN, 4 COM, 2 USB 3.0, F/G RoHS |
| VC900-M8M | 750-VC9000-100G | VC900-M8M: Fanless, i.MX8M Dual, 2GB memory, 16GB eMMC, 1 LAN, 1 HDMI, 1 CAN, 4 COM, 2 USB 3.0, F/G RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| LTE 4G | 761-EM06KE-000G | 4G Module Kit, W/Antenna*3, SMA Cable*3, Quectel LTE-A Cat 6 M.2 Module, 42x30x2.3mm, EM06K-EA(QUECTEL) RoHS |
| WiFi + BT | 761-ES2200-100G | Wi-Fi Kit WiFi+BT Kit, WiFI+BT Module, W/2 Dipole Antenna, 2 MHF4 Cable/200mm, RTL8822CE(ENLI) RoHS |
| Power Switch Cable | A81-006065-016G | Power SWITCH CABLE, Terminal Block 1*3P/5.0mm to DC Jack, L=100mm with ignition switch button |
| Power Adapter | 671-106012-000G | POWER ADAPTER, 60W, EA10681N-120, Input:100~240V, Output:12V/5A, 113x49x35mm, L=1500mm, DC PLUG 5.5*2.5*10mm(Lockable), LV6, 62368-1, EA10681N(183)(EDAC)RoHS |
