VP101-BT

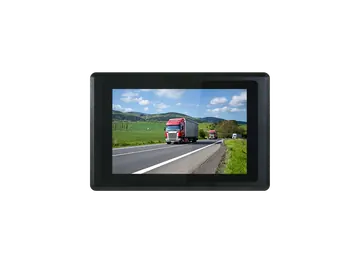

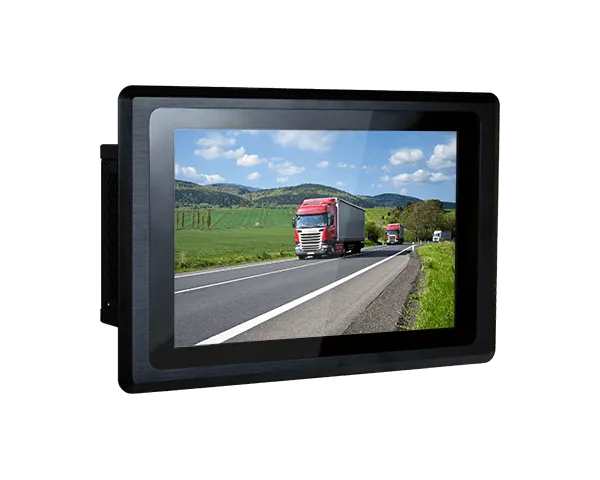

10.1" In-vehicle Touch Panel PC, Intel Atom® E3800, DDR3L, 3 Mini PCIe, 1 HDMI
- 10.1" 1280x800 TFT LCD Panel with Touch Screen
- Supports Ignition Control and Delay On/Off Function
- IP65 Front Panel Protection
- VESA/Panel Mount
- Rich I/O: 2 LAN, 5 COM, 1 USB 3.0, 3 USB 2.0
- 15-Year CPU Life Cycle Support Until Q4' 28 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#IoT
#Intel
#Mini PCIe
#Fanless Design
#IP65 Front Panel Protection
#Windows
#Linux
#HDMI
#VGA
#DDR3L
#E-Mark (E13) Certification
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- 10.1" 1280x800 TFT LCD Panel with Touch Screen
- Supports Ignition Control and Delay On/Off Function
- IP65 Front Panel Protection
- VESA/Panel Mount
- Rich I/O: 2 LAN, 5 COM, 1 USB 3.0, 3 USB 2.0
- 15-Year CPU Life Cycle Support Until Q4' 28 (Based on Intel IOTG Roadmap)
System
- Processor
- Intel® Atom™ Processor E3800 Series, BGA 1170 Intel® Atom™ Processor E3845, Quad Core, 2M Cache, 1.91GHz, 10W Intel® Atom™ Processor E3825, Quad Core, 1M Cache, 1.33GHz, 6W
- Memory
- 2GB/4GB ECC Memory Down Single Channel DDR3L 1333MHz
- BIOS
- AMI SPI 64Mbit
Display and Touch Screen
- Display
- 10.1” 1280x800 TFT LCD Panel with Capacitive Touch Screen
- Brightness
- 500 cd/m²
- Contrast
- 800:1
- Backlight Lifetime
- 50,000 hours
Graphics
- Controller
- Intel® HD Graphics
- Feature
- DirectX 11, OCL 1.2, OGL 4.0 H.264, MPEG2, MVC, VC-1, WMV9, VP8 (supported version dependent on OS)
- Display
- 1 x HDMI 1 x VGA HDMI: resolution up to 1920x1080 @ 60Hz
Storage
- External/Internal
- 1 x 2.5" SATA 2.0 Drive Bay 1 x micro SD (available upon request) Onboard eMMC (available upon request)
Expansion
- Interface
- 1 x Full-size Mini PCIe (PCIe/USB) 1 x Full-size Mini PCIe (mSATA) 1 x Half-size Mini PCIe (PCIe/USB/LPC) 1 x SIM Socket
Audio
- Audio Codec
- Realtek ALC886 5.1-channel
Ethernet
- Controller
- 2 x Intel® I210AT PCIe (10/100/1000Mbps)
LED
- Indicators
- 1 x Power LED 1 x HDD LED

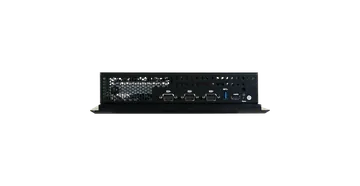

Top I/O
- Serial
- 3 x RS-232/422/485 (DB-9) (one supports 8-bit DIO)
- USB
- 1 x USB 3.0 (type A)
- Display
- 1 x HDMI
- Wi-Fi Antenna
- 2 x Antenna Hole
- Buttons
- 1 x Power Button 1 x Reset Button

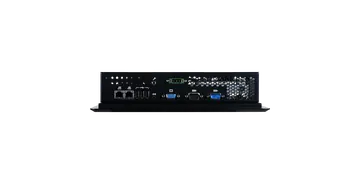

Bottom I/O
- Ethernet
- 2 x GbE (RJ-45) (10/100/1000Mbps)
- Serial
- 1 x RS-232/422/485 (DB-9) 1 x RS-232 (DB-9)
- USB
- 3 x USB 2.0 (type A)
- Audio
- 1 x Line-out 1 x Mic-in
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- Wide Range 9~36V In-Vehicle Power Management Includes Ignition On/Off and System On/Off Delay Time Control
- Connector
- 3-pin Terminal Block (VCC/IGN/GND)
OS Support
- OS Support
- Windows 7 (32bit/64bit) Windows 10 IoT Enterprise (32bit/64bit) Linux
Environment
- Operating Temperature
- -20 to 60°C
- Storage Temperature
- -30 to 80°C
- Relative Humidity
- 5 to 85% RH (non-condensing)
Mechanism
- Construction
- Aluminum Front Bezel
- IP Rating
- IP65 Front Panel Protection

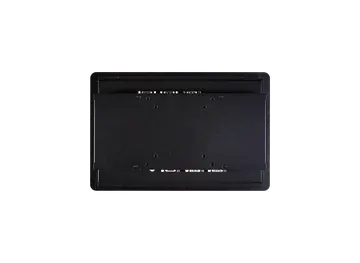

- Mounting
- Panel/VESA Mount
- Dimensions (W x H x D)
- 294mm x 193mm x 65mm
- Weight
- 1.7 Kg
Standards and Certifications
- Shock
- OP: Half-sine, 3G @ 11ms Non-OP: Half-sine, 5G @ 11ms
- Vibration
- OP: Random, 1Grms @ 5~500Hz, 30min Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min
- Certifications
- CE, FCC Class A, E-Mark (E13)
Packing List
- Packing List
- 1 VP101-BT Touch Panel PC 1 Poron foam 1 Chassis Panel Mount Bracket 1 Quick Installation Guide Note: Please choose "VP101-BT product page > Download button" to download the Driver and Manual.
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| VP101-BT-454 | 750-VP1010-000G | 10.1” Panel PC, BT253, Intel® Atom™ E3845, 4G RAM, 9~36V DC input |
| VP101-BT-252 | 750-VP1010-100G | 10.1” Panel PC, BT253, Intel® Atom™ E3825, 2G RAM, 9~36V DC input |
| Item Name | Part Number | Description |
|---|---|---|
| HDD | 785-H25500G 785-H25320G 785-S251TBG 785-S25512G 785-S25256G 785-S25128G 785-S25064G 785-S25032G | 2.5” SATA HDD, 500GB, RoHS 2.5” SATA HDD, 320GB, RoHS 2.5" SATA SSD, 1TB MLC, RoHS 2.5" SATA SSD, 512GB MLC, RoHS 2.5" SATA SSD, 256GB MLC, RoHS 2.5" SATA SSD, 128GB MLC, RoHS 2.5" SATA SSD, 64GB MLC, RoHS 2.5" SATA SSD, 32GB MLC, RoHS |
| mSATA | 785-MS128GMF 785-MS64GMF 785-MS32GMF 785-MS16GMF 785-MS08GMF 785-MS04GMF | mSATA Card, 128GB MLC, RoHS mSATA Card, 64GB MLC, RoHS mSATA Card, 32GB MLC, RoHS mSATA Card, 16GB MLC, RoHS mSATA Card, 8GB MLC, RoHS mSATA Card, 4GB MLC, RoHS |
| CAN BUS | 770-MPEC21-000G 770-MPEC21-100G | MPE-CAN2-MR, Mini-PCIe RAW CAN Module Card F/G, RoHS MPE-CAN2-MF, Mini-PCIe Full CAN Module Card F/G, RoHS |
| Wi-Fi | 761-110091-000G | Wi-Fi kit, RoHS |
| Power Cord | 785-PWRD | Power cord, Standards (USA/EUR/CH), 1.8m, RoHS |
| Power Adapter | 671-110003-100G | 120W, 19V/6.3A, Level 6, RoHS |
| Wall Mount | 761-TPC000-000G | Accessory Wall Mount Kits TPC Series/KS2xx, RoHS |
| Panel Mount | 761-VS1010-000G | Accessory Panel Mount Kit VIS101, RoHS |
| Switch Cable | A81-006065-016G | Power adaptor cable with power ignition switch and Terminal Block 1*3P/5.0mm to system unit, and DC Jack to power adaptor, L=100mm |
