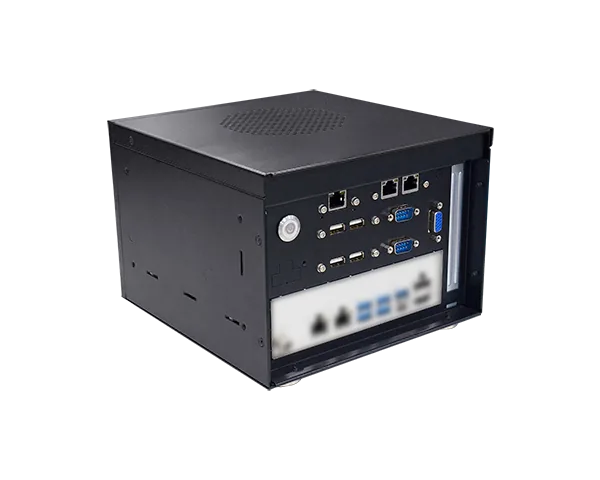

WM130-HPT
AMD® Ryzen™ Embedded 8000 Series, Wallmount Box IPC, DDR5, 1 PCIe x16, 1 M.2 M key, 4 DP++, 2 2.5GbE, 2 COM, 1 USB 3.2 Gen2, 2 USB 2.0, 12V / 19~24V DC-In, -5°C~45°C
- Wall mount system for AMD® Ryzen™ Embedded 8000 Series Processors
- Compact design for effortless setup and deployment
- Flexible architecture with upgradeable and scalable capabilities for I/O ports expansion
- Supports NVIDIA A400/A1000 GPUs via a single PCIe slot
- DFI OOB module support by project
Főbb jellemzők
#DDR5
#M.2
#AMD® Ryzen™ Embedded 8000 Series
#19~24V DC-in
#OOB
#Out-Of-Band (OOB)
#Windows 11
#AMD
#Compact PC
#Compact Size
#PCIe x16
#Windows
#DP
#12V DC-in
#2.5G Ethernet
Főbb jellemzőkKey features
- Wall mount system for AMD® Ryzen™ Embedded 8000 Series Processors
- Compact design for effortless setup and deployment
- Flexible architecture with upgradeable and scalable capabilities for I/O ports expansion
- Supports NVIDIA A400/A1000 GPUs via a single PCIe slot
- DFI OOB module support by project
System
- Processor
- AMD® Ryzen™ Embedded 8000 Series Processors, TDP up to 54W AMD® Ryzen™ Embedded 8845HS, 8C/16T, 8MB Cache, 3.8GHz (5.1GHz), 45W (35-54W) AMD® Ryzen™ Embedded 8645HS, 6C/12T, 6MB Cache, 4.3GHz (5.0GHz), 45W (35-54W) AMD® Ryzen™ Embedded 8840U, 8C/16T, 8MB Cache, 3.3GHz (5.1GHz), 28W (15-30W) AMD® Ryzen™ Embedded 8640U, 6C/12T, 6MB Cache, 3.5GHz (4.9GHz), 28W (15-30W)
- Memory
- Dual Channel DDR5 SODIMM 5600/5200/4800MHz up to 96GB (support ECC)
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- RDNA3 graphics with up to 6 WGPs (Work Group processors)
- Display
- 4 x DP++ display DP1.2: resolution up to 3840x2160@60Hz
Storage
- Internal
- 1 x 2.5" SATA bay 1 x M.2 2280 M Key
Expansion
- Interface
- 1 x PCIE Gen4 x16 slot (x8 Signal) 1 x M.2 M Key 2280 slot
Audio
- Audio Codec
- ALC888S
Ethernet
- Controller
- 2 Intel® I226V
LED
- Indicators
- 1 x Power LED
I/O
- Ethernet
- 2 x 2.5GbE
- Serial
- 1 x RS-232 1 x RS-232/RS422/RS485
- USB
- 2 x USB 3.2 Gen2 2 x USB 2.0
- Display
- 4 x DP++
- DIO
- by project
- Buttons
- 1 x Power button
- Audio
- 1 x Front audio (Line-out, Line-in, Mic-in)
Cooling
- Fan
- 1x 8cm System Fan
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- 12V / 19~24V DC-In
- Consumption
- TBD
OS Support
- Microsoft
- Win11 LTSC
Environment
- Operating Temperature
- -5° to 45° C
Mechanism
- Construction
- Sheet Metal
- Mounting
- Wall mount
- Dimensions (W x H x D)
- 200 x 145.8 x 210.6 mm
- Weight
- TBD
- Color
- Black
Standards and Certifications
- Certifications
- TBD
Country of Origin
- Country of Origin
- Taiwan
