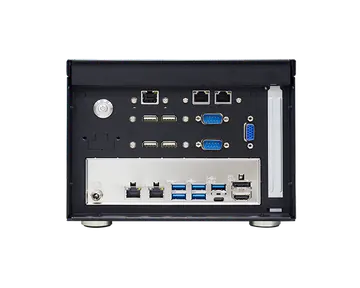

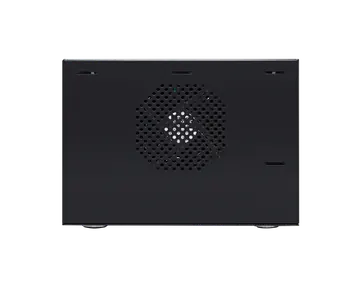

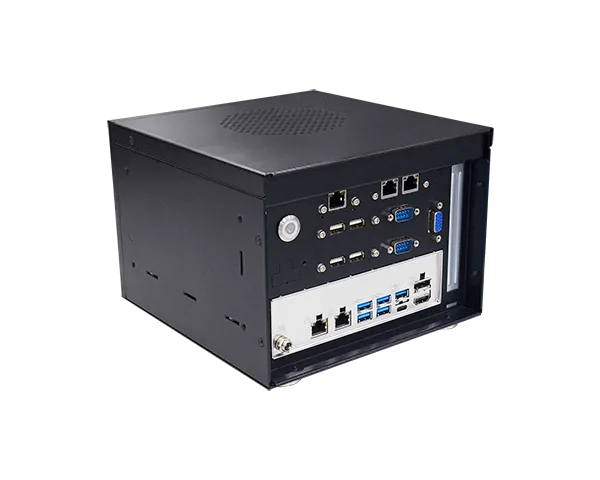

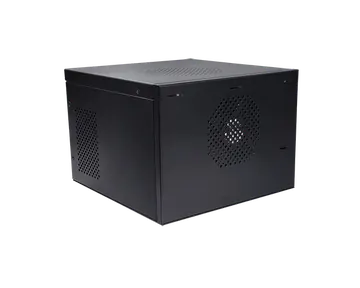

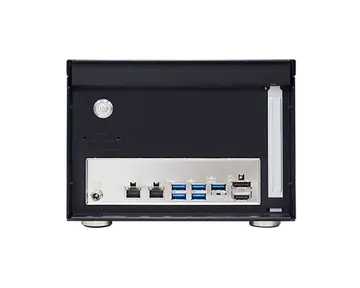

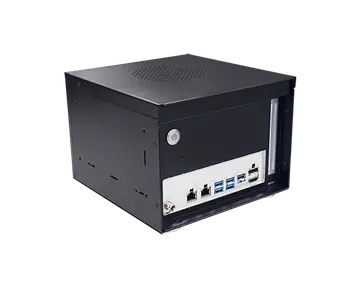

WM130-RPS
Industrial Desktop Computer, Wallmount Box IPC, 14th/13th/12th Gen Intel® Core™, DDR5, 1 PCIe x16, 1 M.2 M key, 1 M.2 E key, 1 M.2 B key, 1 HDMI, 1 DP++, 1 USB Type-C, SATA 3.0, 2 2.5GbE, 2 COM, 6 USB 3.2, WiFi 6
- Wall mount system for 14th/13th/12th Generation Intel® Core™ Processors
- Compact design for effortless setup and deployment
- Flexible architecture with upgradeable and scalable capabilities for I/O ports expansion
- Supports NVIDIA A400/A1000 GPUs via a single PCIe slot
- DFI OOB module support by project
Főbb jellemzők
Tanúsítványok
#12th Gen Intel® Core™ Processor
#DDR5
#13th Gen Intel® Core™ Processor
#Windows 10
#M.2
#12-28V DC-in
#14th Gen Intel® Core™ Processor
#IoT
#Intel
#Compact Size
#4K2K Display
#PCIe x16
#Windows
#HDMI
#DP
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
#Wifi 6
#2.5G Ethernet
#UKCA Certification
Főbb jellemzőkKey features
- Wall mount system for 14th/13th/12th Generation Intel® Core™ Processors
- Compact design for effortless setup and deployment
- Flexible architecture with upgradeable and scalable capabilities for I/O ports expansion
- Supports NVIDIA A400/A1000 GPUs via a single PCIe slot
- DFI OOB module support by project
System
- Processor
- 14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5.0 GHz); 65W Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 4.7 GHz); 65W Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W Intel® 300 (2 Cores,6M Cache, 3.9 GHz); 46W Intel® 300T (2 Cores, 4M Cache, 3.4 GHz); 35W 13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W Intel® Core™ I9-13900 (24 Cores, 36M Cache, up to 5.6 GHz); 65W Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ I7-13700 (16 Cores, 30M Cache, up to 5.2 GHz); 65W Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W Intel® Core™ I5-13500 (14 Cores, 24M Cache, up to 4.8 GHz); 65W Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W Intel® Core™ I5-13400 (10 Cores, 20M Cache, up to 4.6 GHz); 65W Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 65W Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W Intel® Core™ I3-13100 (4 Cores, 12M Cache, up to 4.5 GHz); 65W Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W Intel® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W Intel® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W Intel® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W Intel® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W 12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ i9-12900(16 Cores, 30M Cache, up to 5.0 GHz); 65W Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.7 GHz); 35W Intel® Core™ i7-12700 (12 Cores, 25M Cache, up to 4.8 GHz); 65W Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W Intel® Core™ i5-12500 (6 Cores, 18M Cache, up to 4.6 GHz); 65W Intel® Core™ i5-12400 (6 Cores, 18M Cache, up to 4.4 GHz); 65W Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W Intel® Core™ i3-12100 (4 Cores, 12M Cache, up to 4.3 GHz); 60W Intel® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W Intel® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W Intel® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W Intel® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W
- Chipset
- Intel® R680E/Q670E/H610E Chipset
- Memory
- Dual DDR5 SODIMM 5600MHz up to 64GB (ECC support by R680E sku)
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- Intel® UHD Graphics 700 series
- Feature
- 3D graphics HW acceleration: DX12, Open GL 4.6, Vulkan 1.2 HW Video Decode: 8K60 12b 4:2:0 HEVC/VP9/SCC; 8K30 10b 4:2:0 AV1; 5K60 10b 4:4:4 HEVC/VP9/SCC; 4K60 8b 4:2:0 AVC HW Video Encode: 8K30 or 5K60 8b/10b 4:2:0 HEVC/VP9/SCC; 4K60 10b 4:4:4 HEVC/VP9/SCC; 4K60 8b 4:2:0 AVC
- Display
- [R680E/Q670E] 1 x HDMI 2.0 [R680E/Q670E] 1 x DP++ 1.2 [R680E/Q670E] 1 x USB Type-C [R680E/Q670E] HDMI: resolution up to 4096x2160 @ 60Hz [R680E/Q670E] DP++: resolution up to 4096x2304 @ 60Hz [R680E/Q670E] USB Type C: resolution up to 4096x2304 @ 60Hz [H610E] 1 x HDMI 2.0 [H610E] 1 x DP++ 1.2 [H610E] HDMI: resolution up to 4096x2160 @ 60Hz [H610E] DP++: resolution up to 4096x2304 @ 60Hz
Storage
- Internal
- 1 x 2.5" SATA 3.0 1TB SSD 1 x M.2 2280 M Key (PCIe x4/SATA)
Expansion
- Interface
- 1 x PCIe x16 (Gen 5) (Max. 75W) 1 x M.2 2230 E Key 1 x M.2 2242/3042/3052 B Key 1 x M.2 2280 M Key
Audio
- Audio Codec
- Realtek ALC888
Ethernet
- Controller
- [R680E/Q670E] 1 x Intel® I226-LM (Core i9/i7/i5 support iAMT) [R680E/Q670E] 1 x Intel® I226-V [H610E] 2 x Intel® I226-V
LED
- Indicators
- 1 x Power LED
I/O
- Ethernet
- 2 x 2.5GbE (RJ-45)
- USB
- [R680E/Q670E] 5 x USB 3.2 Gen2 Type A [R680E/Q670E] 1 x USB 3.2 Gen2 USB Type C [H610E] 2 x USB 3.2 Gen2 [H610E] 1 x USB 3.2 Gen1 [H610E] 2 x USB 2.0
- Display
- 1 x HDMI 2.0 1 x DP++ 1.2 1 x USB Type-C
- Buttons
- 1 x Power button
Cooling
- Fan
- 1 x 8cm System Fan, with replaceable air filter
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Nuvoton TPM 2.0
Power
- Type
- DC Jack or 4-Pin terminal block with Wide Range 12~28V
- Connector
- DC-in Jack/Terminal Block(Opt.)
- Consumption
- TBD
- RTC Battery
- CR2032 Coin Cell
OS Support
- Microsoft
- Windows 10 IoT Enterprise 2019
Environment
- Operating Temperature
- -5° to 50° C
- Storage Temperature
- -40 to 85°C
- Relative Humidity
- 5 to 95% RH (non-condensing)
Mechanism
- Construction
- Sheet Metal
- Mounting
- Wall mount
- Dimensions (W x H x D)
- 200 x 145.8 x 210.6 mm
- Weight
- TBD
- Color
- Black
Standards and Certifications
- Shock
- Operating: 3G Non-operating: 5G
- Vibration
- Operating: 0.5G Non-operating: 1.5G
- Package Drop
- ISTA Project 1A
- Certifications
- CE, FCC, RoHS, UKCA
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| WM130-RPS | 750-WM13000-000G | WM130-RPS: m-ITX System, RPS103-R680E, 1 DP, 1 HDMI, 2 x2.5 GbE, 5 USB 3.2, 1 USB-C, 1 PCIex16, dTPM,12~28V DC-IN, F/G SYSTEM RoHS |
| WM130-RPS | 750-WM13000-100G | WM130-RPS: m-ITX System, RPS103-H610E, 1 DP, 1 HDMI, 2 x2.5 GbE, 3 USB 3.2, 2 USB 2.0, 1 PCIex16, dTPM,12~28V DC-IN, F/G SYSTEM RoHS |
