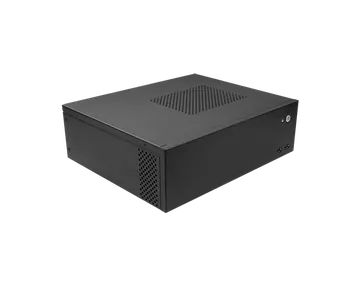

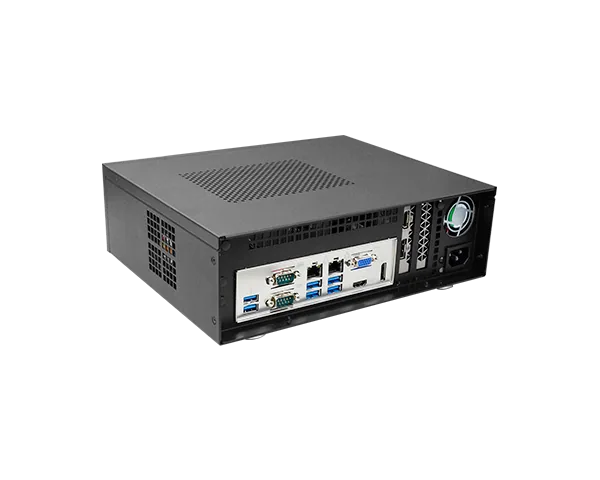

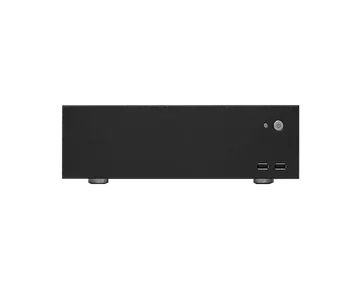

WM140-RPS
Industrial Desktop Computer, Wallmount Box IPC, 14th/13th/12th Gen Intel® Core™, DDR5, 1 PCIe x16, 1 M.2 M key, 1 M.2 E key, 1 M.2 A key, 1 HDMI, 1 DP++, 1 VGA, SATA 3.0, 2 2.5GbE, 2 COM, 6 USB 3.2
- Wall mount system for 14th/13th/12th Generation Intel® Core™ Processors
- Compact design for effortless 2U wall-mount deployment
- One-Side Rich I/O: 2 Intel 2.5GbE, 2 COM, 6 USB ports
- Dual PCIe slot expansion: Dual-slot low-profile GPUs—AI accelerated
- Multiple display interfaces: DP++/HDMI/VGA for different scenario
Főbb jellemzők
#12th Gen Intel® Core™ Processor
#DDR5
#13th Gen Intel® Core™ Processor
#Windows 10
#M.2
#14th Gen Intel® Core™ Processor
#IoT
#AI
#Intel
#Compact Size
#4K2K Display
#PCIe x16
#Windows
#HDMI
#VGA
#DP
#Multiple Expansion
#2.5G Ethernet
Főbb jellemzőkKey features
- Wall mount system for 14th/13th/12th Generation Intel® Core™ Processors
- Compact design for effortless 2U wall-mount deployment
- One-Side Rich I/O: 2 Intel 2.5GbE, 2 COM, 6 USB ports
- Dual PCIe slot expansion: Dual-slot low-profile GPUs—AI accelerated
- Multiple display interfaces: DP++/HDMI/VGA for different scenario
System
- Processor
- 14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5.0 GHz); 65W Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 4.7 GHz); 65W Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W Intel® 300 (2 Cores,6M Cache, 3.9 GHz); 46W Intel® 300T (2 Cores, 4M Cache, 3.4 GHz); 35W 13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W Intel® Core™ I9-13900 (24 Cores, 36M Cache, up to 5.6 GHz); 65W Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ I7-13700 (16 Cores, 30M Cache, up to 5.2 GHz); 65W Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W Intel® Core™ I5-13500 (14 Cores, 24M Cache, up to 4.8 GHz); 65W Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W Intel® Core™ I5-13400 (10 Cores, 20M Cache, up to 4.6 GHz); 65W Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 65W Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W Intel® Core™ I3-13100 (4 Cores, 12M Cache, up to 4.5 GHz); 65W Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W Intel® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W Intel® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W Intel® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W Intel® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W 12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ i9-12900(16 Cores, 30M Cache, up to 5.0 GHz); 65W Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.7 GHz); 35W Intel® Core™ i7-12700 (12 Cores, 25M Cache, up to 4.8 GHz); 65W Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W Intel® Core™ i5-12500 (6 Cores, 18M Cache, up to 4.6 GHz); 65W Intel® Core™ i5-12400 (6 Cores, 18M Cache, up to 4.4 GHz); 65W Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W Intel® Core™ i3-12100 (4 Cores, 12M Cache, up to 4.3 GHz); 60W Intel® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W Intel® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W Intel® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W Intel® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W
- Chipset
- [R680E] Intel® R680E Chipset [Q670E] Intel® Q670E Chipset [H610E] Intel® H610E Chipset
- Memory
- Dual DDR5 SODIMM 5600MHz up to 64GB [R680E] ECC support by R680E sku
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- Intel® UHD Graphics 700 series
- Feature
- 3D graphics HW acceleration: DX12, Open GL 4.6, Vulkan 1.2 HW Video Decode: 8K60 12b 4:2:0 HEVC/VP9/SCC; 8K30 10b 4:2:0 AV1; 5K60 10b 4:4:4 HEVC/VP9/SCC; 4K60 8b 4:2:0 AVC HW Video Encode: 8K30 or 5K60 8b/10b 4:2:0 HEVC/VP9/SCC; 4K60 10b 4:4:4 HEVC/VP9/SCC; 4K60 8b 4:2:0 AVC
- Display
- 1 x HDMI 1 x DP++ 1 x VGA DMI: resolution up to 3840x2160 @ 24Hz DP++: resolution up to 3840x2160 @ 60Hz VGA: resolution up to 2048x1536 @ 60Hz
Storage
- Internal
- 1 x 2.5" SATA 3.0 SSD (Option) 1 x M.2 2280 M Key (PCIe x4/SATA)
Expansion
- Interface
- 1 x PCIe x16 (Gen 5) (Max. 75W) 1 x M.2 2230 E Key 1 x M.2 3060 A Key 1 x M.2 2280 M Key
Audio
- Audio Codec
- Realtek ALC888S
Ethernet
- Controller
- [R680E]1 x Intel® I226-LM (Core i9/i7/i5 support iAMT) [R680E]1 x Intel® I226-V [Q670E]1 x Intel® I226-LM (Core i9/i7/i5 support iAMT) [Q670E]1 x Intel® I226-V [H610E]2 x Intel® I226-V
LED
- Indicators
- 1 x Power LED

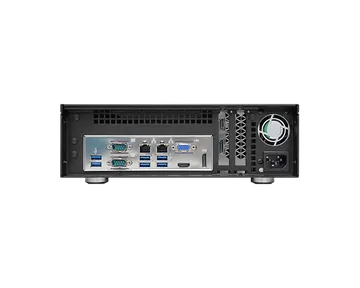

I/O
- Ethernet
- 2 x 2.5GbE (RJ-45)
- USB
- [R680E]2 x USB 3.2 Gen2 [R680E]4 x USB 3.2 Gen1 [Q670E]6 x USB 3.2 Gen1 [H610E]4 x USB 3.2 Gen1 [H610E]2 x USB 2.0
- Display
- 1 x DP++ 1 x HDMI 1 x VGA
- Buttons
- 1 x Power button
Cooling
- Fan
- 1 x 8cm System Fan, with replaceable air filter
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Nuvoton TPM 2.0
Power
- Consumption
- TBD
- Supply
- FlexATX
OS Support
- Microsoft
- Windows 10 IoT Enterprise 2019
Environment
- Operating Temperature
- -5° to 45° C
- Storage Temperature
- -40 to 85°C
- Relative Humidity
- 5 to 95% RH (non-condensing)
Mechanism
- Construction
- Sheet Metal
- Mounting
- Wall mount
- Dimensions (W x H x D)
- 280 x 87 x 229.9 mm
- Weight
- TBD
- Color
- Black
Standards and Certifications
- Shock
- Operating: 3G Non-operating: 5G
- Vibration
- Operating: 1G Non-operating: 3G
- Package Drop
- ISTA Project 1A
- Certifications
- TBD
Packing List
- Packing List
- • 1 WM140-RPS System Unit(w/o CPU cooler)
Country of Origin
- Country of Origin
- Taiwan
