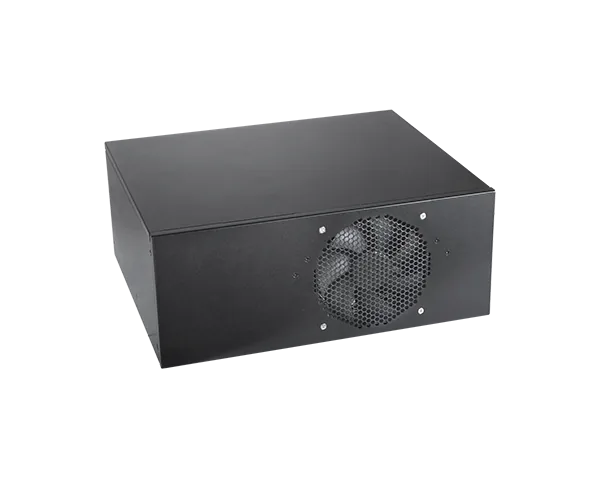

WM343-RPS
Industrial Desktop Computer, Wallmount Box PC, 14th/13th/12th Gen Intel® Core™, DDR5, 1 PCIe x16, 1 PCIe x4, 2 PCI, 2 M.2 M Key, 1 M.2 E Key, VGA, DP++, HDMI, 1 Intel 2.5GbE, 1 Intel 1GbE, 1 COM, 4 USB 3.2, 2 USB 2.0, 1 PS/2, 1 Line-out, 1 Mic-in
- Supports 14th/13th/12th Gen. Intel® Core™ CPUs with up to 65W TDP – ideal for mainstream and embedded performance.
- 1x PCIe Gen5 x16 slot – fits dual-slot full-height GPU cards up to 9.5” for high-performance graphics or AI acceleration.
- High-speed DDR5 memory – dual-channel support up to 4400MHz, max 192GB via 4x UDIMM for intensive workloads.
- Comprehensive I/O options – includes Intel® 2.5GbE & 1GbE LAN, 4x USB 3.2, 2x USB 2.0, COM, PS/2, Line-out, Mic-in.
- Triple display support – output via VGA, 4K DP++, and HDMI 2.0a for versatile multi-display setups.
Főbb jellemzők
#12th Gen Intel® Core™ Processor
#DDR5
#13th Gen Intel® Core™ Processor
#Windows 10
#Edge AI Computing
#14th Gen Intel® Core™ Processor
#IoT
#Windows 11
#Intel
#SIM Slot
#4K2K Display
#1G Ethernet
#PCIe x16
#Windows
#Linux
#HDMI
#VGA
#DP
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
#2.5G Ethernet
Főbb jellemzőkKey features
- Supports 14th/13th/12th Gen. Intel® Core™ CPUs with up to 65W TDP – ideal for mainstream and embedded performance.
- 1x PCIe Gen5 x16 slot – fits dual-slot full-height GPU cards up to 9.5” for high-performance graphics or AI acceleration.
- High-speed DDR5 memory – dual-channel support up to 4400MHz, max 192GB via 4x UDIMM for intensive workloads.
- Comprehensive I/O options – includes Intel® 2.5GbE & 1GbE LAN, 4x USB 3.2, 2x USB 2.0, COM, PS/2, Line-out, Mic-in.
- Triple display support – output via VGA, 4K DP++, and HDMI 2.0a for versatile multi-display setups.
System
- Processor
- 14th Generation Intel® LGA 1700 Socket Processors, Intel® Core™ I9-14901E (8 Cores, 36M Cache, up to 5.6 GHz); 65W Intel® Core™ I5-14401E (6 Cores, 24M Cache, up to 4.7 GHz); 65W Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5 GHz); 65W Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 4.7 GHz); 65W Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W Intel® 300 (2 Cores, 6M Cache, up to 3.9 GHz); 46W Intel® 300T (2 Cores, 6M Cache, up to 3.4 GHz); 35W 13th Generation Intel® LGA 1700 Socket Processors, Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 65W Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W 12th Generation Intel® LGA 1700 Socket Processors, Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W *i9-12900E/ i9-12900TE: 5-Year CPU Lifecycle Support Until Q1' 27 *Other CPUs: 10-Year CPU Lifecycle Support Until Q1' 32
- Chipset
- [Q670E] Intel® Q670E Chipset [H610E] Intel® H610E Chipset
- Memory
- Four 288-pin UDIMM up to 192GB (Non-ECC) Dual Channel DDR5 up to 4400 MHz *Speed support list follow User’s Manual
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- Intel® UHD Graphics 700 series
- Feature
- OpenGL 4.5, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Decode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
- Display
- 1 x VGA 1 x DP++ 1 x HDMI 2.0a VGA: resolution up to 1920x1200 @ 60Hz DP++: resolution up to 4096x2304 @ 60Hz HDMI: resolution up to 4096x2160 @ 24Hz
- Triple Displays
- VGA, DP++, HDMI
Storage
- External
- 1 or 2 x 3.5"/2.5" SATA 3.0 drive bays (1 x 3.5" SATA drive bay, by default) 1 x 5.25" Optical drive bay
- Internal
- [Q670E] 1 x M.2 2242/2260/2280 M key (PCIe x2 NVMe/SATA/Intel RST support) [Q670E] 1 x M.2 2242/2260/2280 M key (PCIe x4 NVMe/Intel RST support) (co-lay PCIE x4 slot, function selected by BIOS.) [Q670E] 1 x M.2 2230 E key (PCIe/USB 2.0/Intel CNVi support) (Discrete Wifi 6E support) [H610E] 1 x M.2 2242/2260/2280 M key (PCIe x2 NVMe/SATA/Intel RST support) [H610E] 1 x M.2 2242/2260/2280 M key (PCIe x4 NVMe/Intel RST support) (co-lay PCIE x4 slot, function selected by BIOS.)
Expansion
- PCIe
- 1 x PCIe x16 (Gen 5) 1 x PCIe x4 (Gen 3) (co-lay M.2 M-key, function selected by BIOS.) 2 x PCI
Audio
- Audio Codec
- Realtek ALC888
- Interface
- 1 x Line-out 1 x Mic-in 1 x Line-in (opt., MOQ required)
Ethernet
- Controller
- [Q670E] 1 x Intel® I226-LM (Core i9/i7/i5 support iAMT, co-lay I219-LM) [Q670E] 1 x Intel® I226-V [H610E] 1 x Intel® I219-V [H610E] 1 x Intel® I226-V
LED
- Indicators
- 1 x Power LED 1 x HDD LED

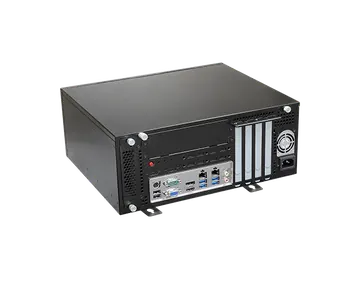

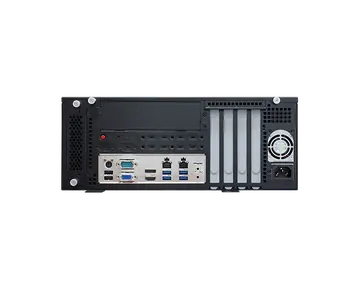

Rear I/O
- Ethernet
- [Q670E] 2 x 2.5GbE (RJ-45) -Default [Q670E] or 1 x 2.5GbE + 1 x GbE (RJ-45)- opt. [H610E] 1 x 2.5GbE + 1 x GbE (RJ-45)
- Serial
- 1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
- USB
- [Q670E] 4 x USB 3.2 Gen2 [Q670E] 2 x USB 2.0 [H610E] 2 x USB 3.2 Gen2 [H610E] 2 x USB 3.2 Gen1 [H610E] 2 x USB 2.0
- PS/2
- 1 x PS/2 (mini-DIN-6)
- Display
- 1 x DP++ 1 x HDMI 2.0a 1 x VGA
- Audio
- 1 x Line-out 1 x Mic-in 1 x Line-in (opt., MOQ required)
- Buttons
- 1 x Power button 1 x Reset button
Cooling

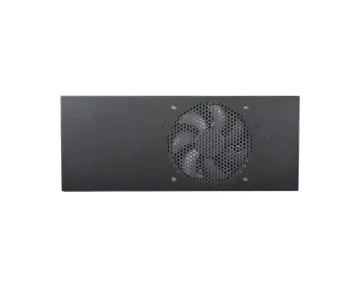

- Fan
- 1 x 12cm System Fan
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Nuvoton TPM 2.0
Power
- Supply
- FlexATX 400W/650W
OS Support
- Microsoft
- Windows 10 IoT Enterprise 64-bit Windows 11 LTSC
- Linux
- Linux (by project support)
Environment
- Operating Temperature
- 0 to 45°C
- Storage Temperature
- -20 to 60°C
- Relative Humidity
- 5 to 95% RH (non-condensing)
Mechanism
- Construction
- Sheet metal
- Mounting
- Wall mount
- Dimensions (W x H x D)
- 349mm x 140.2mm x 290.9mm (13.74" x 5.52" x 11.45")
- Weight
- TBD
- Color
- no coating or black coating
Standards and Certifications
- Shock
- Operating: 3G Non-operating: 5G
- Vibration
- Operating: Random 5~500Hz 0.5G Non-operating: Sine 10~500Hz 1.5G
- Package Drop
- ISTA Project 1A
- Certifications
- CE, FCC Class A, RoHS, UKCA
Packing List
- Packing List
- • 1 WM343-RPS System Unit • 1 CPU cooler 65W • 1 System Fan • 1 SATA III cable • STANDOFF M3*6mm: fix 2.5” SSD • SCREW F3 * 5L: fix 2.5” SSD • SCREW #6-32 5mm: fix 3.5” HDD • SCREW M2x4: M.2 Module
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| WM343-RPS | 750-WM343E-000G | WM343-RPS330:Mirco-ATX System, RPS330-Q670E, Display(1 VGA, 1 DP++, 1 HDMI 2.0a), USB(4 USB 3.2, 2 USB 2.0), 2 2.5GbE, Audio(1 Line-out, 1 Mic-in), 1 RS-232/422/485, 1 PS/2, 2 M.2 M-key, 1 M.2 E-Key, PCIe(1 PCIe x16 (Gen 5), *1 PCIe x4 (Gen 3), 2 PCI), 400W Power |
| WM343-RPS | 750-WM343E-!00G | WM343-RPS330:Mirco-ATX System, RPS330-Q670E, Display(1 VGA, 1 DP++, 1 HDMI 2.0a), USB(4 USB 3.2, 2 USB 2.0), 2 2.5GbE, Audio(1 Line-out, 1 Mic-in), 1 RS-232/422/485, 1 PS/2, 2 M.2 M-key, 1 M.2 E-Key, PCIe(1 PCIe x16 (Gen 5), *1 PCIe x4 (Gen 3), 2 PCI), 650W Power |
| Item Name | Part Number | Description |
|---|---|---|
| Wall Mount | 761-WM3410-000G | ACCESSORY WALL MOUNT KITS WM34x Series RoHS |
