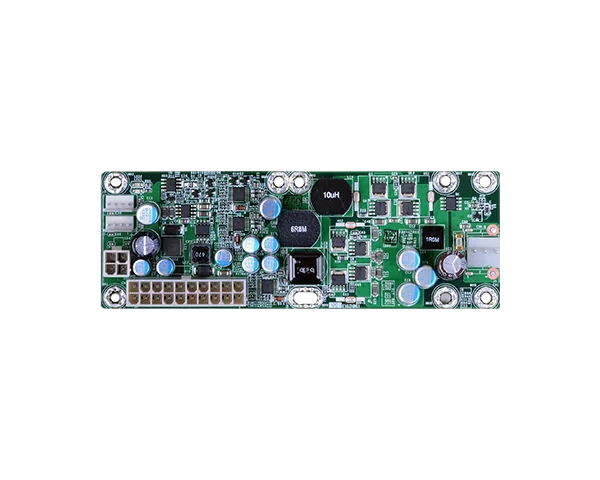

X102-DC24
20.4V - 25.2V DC to DC Converters
- 20.4V - 25.2V DC to DC Converters
- Input: 20.4V - 25.2V , Output: 140W
- DIMENSIONS: 146mm x 50mm
Főbb jellemzőkKey features
- 20.4V - 25.2V DC to DC Converters
- Input: 20.4V - 25.2V , Output: 140W
- DIMENSIONS: 146mm x 50mm
Specifications
- Features
- Input Voltage: 20.4V - 25.2V Maximum Output: 140W CONNECTORS: One 3-pin DC-in Connector; One 4-pin ATX 12V power; One 20-pin ATX power; Two 4-pin FDD power ENVIRONMENT: Temperature: 0-60oC / 32-140oF; Relative Humidity: 10%-90% DIMENSIONS: 6 layers, 146mm x 50mm; height: 20mm Output Voltage (power for DC voltages): Output Voltage/Output Current +3.3V ±5% /5A +5V ±5% /8A 5VSB ±5% /2A +12V ±5% /6A -12V ±10% /0.2A
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
Rendelési információért vedd fel velünk a kapcsolatot.Please contact us for ordering information.
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
