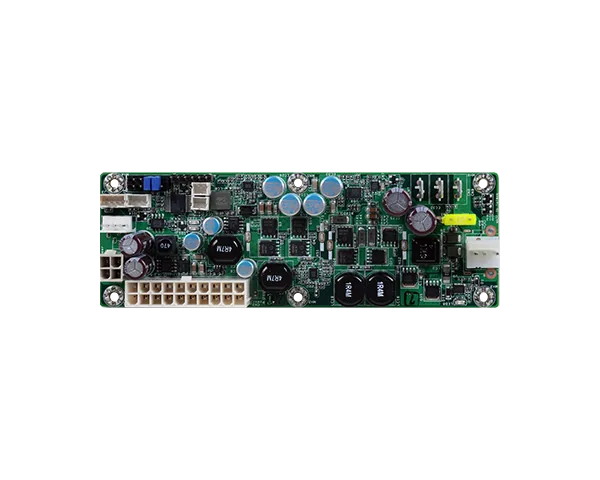

X102-DC30
6V - 30V DC to DC Converters
- 6V - 30V DC to DC Converters
- Input: 6V - 30V, Output: 120W
- DIMENSIONS: 146mm x 50mm
Főbb jellemzőkKey features
- 6V - 30V DC to DC Converters
- Input: 6V - 30V, Output: 120W
- DIMENSIONS: 146mm x 50mm
Specifications
- Features
- Input Voltage: 6V - 30V Maximum Output: 120W CONNECTORS: One 3-pin DC-in Connector ；One 4-pin ATX 12V power；One 20-pin ATX power；One 4-pin FDD power ENVIRONMENT: Temperature: 0-60°C / 32-140°F；Relative Humidity: 10%-90% Output Voltage (power for DC voltages): +3.3V ±5%, 6.0A；+5V ±5%, 6.0A；5VSB ±5%, 1.5A；+12V ±5%, 5A；-12V ±10%, 0.15A DIMENSIONS: 6 layers, 146mm x 50mm；height: 20mm
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
Rendelési információért vedd fel velünk a kapcsolatot.Please contact us for ordering information.
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
