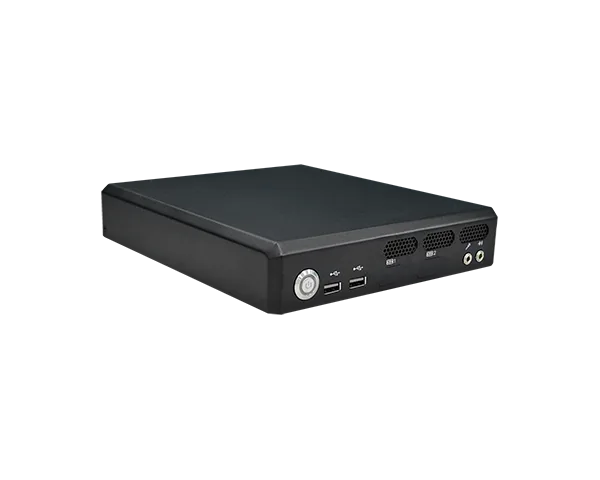

X3-BTS
Desktop Box IPC, BTL-S/14th/13th/12th Gen Intel Core, DDR5, 1 DP++, 2 USB-C DP Alt.Mode, 1 M.2 E Key, 1 M.2 M Key, 1 M.2 B Key, RAID/NVME, 1 PCIe x16, 2 2.5GbE, 4 USB 3.2 Gen2, 2 USB 2.0, 2 COM, 1 Grounding Post, -20°C ~ 50°C
- BTL-S/14th/13th/12th Generation Intel® Core™ Processors TDP 65W
- 2 DDR5 5600MHz SODIMM up to 96GB (ECC/Non-ECC)
- Triple Displays: 1 DP++, 2 USB-C DP Alt.Mode
- Configureable with dual M.2 NVME Storage with RAID 0/1
- One PCIe x16 slot expansion: Supports a single-slot, low-profile add-on card or graphics card (up to 70W TDP)
- Easy Integration: Supports Wallmount or Rackmount Installation
- Operating temperature : -20 to 50°C
Főbb jellemzők
Tanúsítványok
#12th Gen Intel® Core™ Processor
#13th Gen Intel® Core™ Processor
#M.2
#Intel® Bartlett Lake-S Processors
#14th Gen Intel® Core™ Processor
#IoT
#Windows 11
#Intel
#Compact PC
#Compact Size
#PCIe x16
#Windows
#Linux
#DP
#Multiple Expansion
#19V DC-in
#RoHS Certification
#CE Certification
#FCC Certification
#2.5G Ethernet
#UKCA Certification
Főbb jellemzőkKey features
- BTL-S/14th/13th/12th Generation Intel® Core™ Processors TDP 65W
- 2 DDR5 5600MHz SODIMM up to 96GB (ECC/Non-ECC)
- Triple Displays: 1 DP++, 2 USB-C DP Alt.Mode
- Configureable with dual M.2 NVME Storage with RAID 0/1
- One PCIe x16 slot expansion: Supports a single-slot, low-profile add-on card or graphics card (up to 70W TDP)
- Easy Integration: Supports Wallmount or Rackmount Installation
- Operating temperature : -20 to 50°C
System
- Processor
- Intel® Bartlett Lake-S Hybrid LGA 1700 Socket Processors, TDP support up to 65W Intel® Core™ 7 251E (24 Cores, 36M Cache, up to 5.6 GHz); 65W Intel® Core™ 7 251TE (24 Cores, 36M Cache, up to 5.4 GHz); 45W Intel® Core™ 5 221E (14 Cores, 24M Cache, up to 5.2 GHz); 65W Intel® Core™ 5 221TE (14 Cores, 24M Cache, up to 5.0 GHz); 45W Intel® Core™ 5 211E (10 Cores, 20M Cache, up to 4.9 GHz); 65W Intel® Core™ 5 211TE (10 Cores, 20M Cache, up to 4.8 GHz); 45W Intel® Core™ 3 201E (4 Cores, 12M Cache, up to 4.8 GHz); 60W Intel® Core™ 3 201TE (4 Cores, 12M Cache, up to 4.6 GHz); 45W Intel® 300 (2 Cores, 6M Cache, up to 3.9 GHz); 45W Intel® 300T (2 Cores, 6M Cache, up to 3.4 GHz); 35W 14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W Intel® Core™ I9-14901E (8 Cores, 36M Cache, up to 5.6 GHz); 65W Intel® Core™ I5-14401E (6 Cores, 24M Cache, up to 4.7 GHz); 65W Intel® Core™ I9-14901E (8 Cores, 36M Cache, up to 5.6 GHz); 65W Intel® Core™ I5-14401E (6 Cores, 24M Cache, up to 4.7 GHz); 65W Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5 GHz); 65W Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 4.7 GHz); 65W Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W Intel® 300 (2 Cores, 6M Cache, up to 3.9 GHz); 46W Intel® 300T (2 Cores, 6M Cache, up to 3.4 GHz); 35W 13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 65W Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W 12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W
- Chipset
- Intel® R680E Chipset
- Memory
- Two 262-pin SODIMM up to 96GB (ECC/Non-ECC) Dual Channel DDR5 5600 MHz
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- Intel® UHD Graphics 700 series
- Feature
- OpenGL 4.5, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: AVC/H264, JPEG, HEVC/H265, VP9
- Display
- 1 x DP++ 2 x USB-C DP Alt.Mode
Storage
- Internal
- 1 x M.2 2280 M Key (PCIe Gen4 x4/SATA) 1 x M.2 2280 M Key (PCIe Gen3 x4/SATA) 1 x M.2 2280 M Key (PCIe Gen4 x4) RAID 0/1
Expansion
- Interface
- 1 x M.2 2230 E Key (USB2.0 / PCIe Gen3 x1) 1 x M.2 2280 M Key (PCIe Gen4 x4/SATA, share with storage) 1 x M.2 2280 M Key (PCIe Gen3 x4/SATA, share with storage) 1 x M.2 2280 M Key (PCIe Gen4 x4, share with storage) 1 x M.2 2242/3042/3052 B Key (PCIe Gen3 x1USB 3.2 Gen1/USB 2.0) 1 x PCIe x16 slot (PCIe Gen4 x8)
Audio
- Audio Codec
- Realtek ALC888S-VD2-GR
Ethernet
- Controller
- 2 x Intel® I226IT PCIe (10/100/1000/2.5G speeds)
LED
- Indicators
- 1 x Power LED 1 x HDD LED

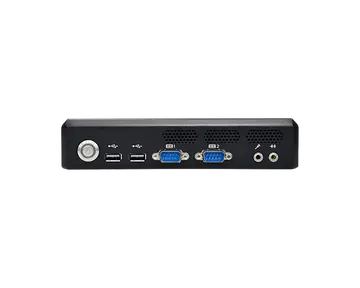

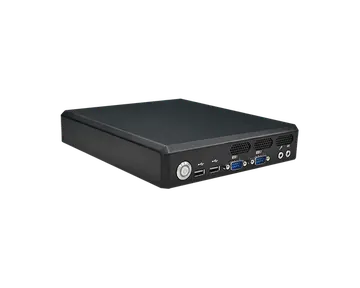

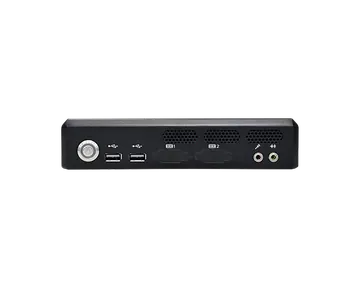

Front I/O
- Serial
- Default is None, Optional 2 x COM(RS232/422/485 selectable, default is RS232)
- USB
- 2 x USB 2.0
- Audio
- 1 x Line out, 1 x Mic-in
- Buttons
- 1 x Power Button

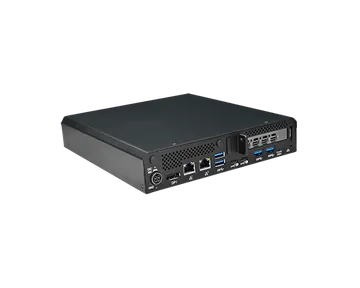

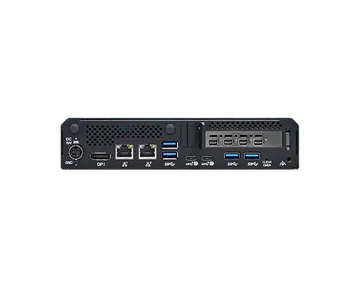

Rear I/O
- Ethernet
- 2 x 2.5GbE (RJ45, LAN1/ LAN2)
- USB
- 4 x USB 3.2 Gen2 2 x USB-C DP Alt. Mode
- Display
- 1 x DP++ 2 x USB-C DP Alt.Mode
- Grouding
- 1 x Grounding Post
- Other
- 1 x remote switch 1 x reset button
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- dTPM2.0
Power
- Type
- DC 19V
- Connector
- 4pin mini DIN
- Consumption
- TBD
- RTC Battery
- CR2032 Coin Cell
OS Support
- Microsoft
- Windows 11 IoT
- Linux
- Linux
Environment
- Temperature
- Operating: -20°C ~ 50°C (for wide temperature M.2 SSD, w/ 0.6m/sec air flow) Storage: -40°C ~ 85°C
- Humidity
- Operating: 5% ~ 90% RH Storage: 5% ~ 90% RH
- MTBF
- TBD
Mechanism
- Construction
- Metal chassis
- Mounting
- Wall mount
- Dimensions (W x H x D)
- 200 x 43.2 x 219mm
- Weight
- TBD
Standards and Certifications
- Shock
- Operating: 3G Non-operating: 5G
- Vibration
- Operating: Random 5~500Hz 1G Non-operating: Sweep Sine 10~500Hz 1.5G
- Certifications
- CE, FCC class A, RoHS, UKCA
Country of Origin
- Country of Origin
- Taiwan
