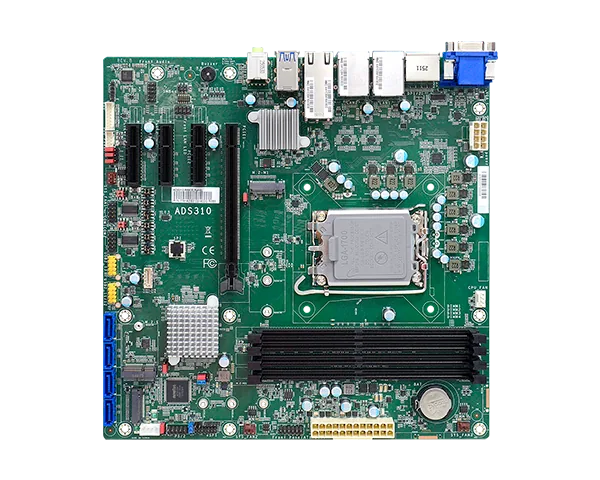

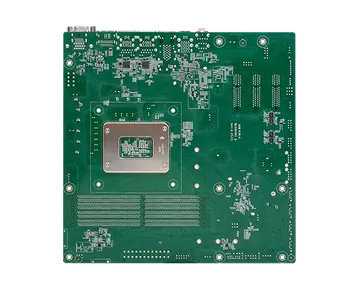

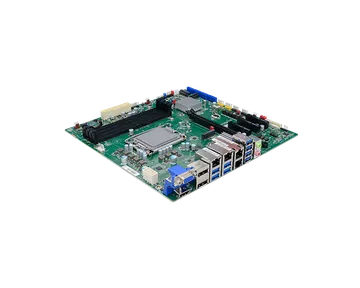

ADS310-R680E/Q670E
microATX board, BTL-S/14th/13th/12th Gen Intel® Core™, 4 DDR4, 1 PCIe x16, 3 PCIe x4, 1 M.2 E key, 2 M.2 M key, 4 SATA 3.0, 2 DP++, 1 HDMI 2.0a, 1 VGA, 4 SATA 3.0, 2 Intel 10GbE, 2 Intel 2.5GbE, 2 COM, 6 USB 3.2 Gen 2, 4 USB 3.2 Gen 1, 3 USB 2.0
- BTL-S/14th/13th/12th Gen Intel® Core™ with Intel® R680E/Q670E chipset
- 4 DDR4 UDIMM up to 128GB
- Supports 4 independent displays: VGA, 2 DP++, HDMI 2.0a
- Supports 4K resolution
- Multiple expansion: 1 PCIe x16, 3 PCIe x4, 1 M.2 E key, 2 M.2 M key, 4 SATA 3.0
- Rich I/O: 2 Intel 10GbE, 2 Intel 2.5GbE, 2 COM, 6 USB 3.2 Gen 2, 4 USB 3.2 Gen 1, 3 USB 2.0
- Typically supports 10-Year CPU Life Cycle Until Q1’32 (Based on Intel IOTG Roadmap)
- Support EXT-OOB (Lite)
Főbb jellemzők
Tanúsítványok
#12th Gen Intel® Core™ Processor
#Wifi 6E
#ADS Series
#13th Gen Intel® Core™ Processor
#Edge AI Computing
#EXT-OOB (Lite)
#Intel® Bartlett Lake-S Processors
#14th Gen Intel® Core™ Processor
#Intel
#4K2K Display
#PCIe x16
#Windows
#HDMI
#VGA
#DP
#Multiple Expansion
#10G Ethernet
#DDR4
#RoHS Certification
#High-Performance
#Medical
#Material Handling
#Wifi 6
#2.5G Ethernet
#UKCA Certification
Főbb jellemzőkKey features
- BTL-S/14th/13th/12th Gen Intel® Core™ with Intel® R680E/Q670E chipset
- 4 DDR4 UDIMM up to 128GB
- Supports 4 independent displays: VGA, 2 DP++, HDMI 2.0a
- Supports 4K resolution
- Multiple expansion: 1 PCIe x16, 3 PCIe x4, 1 M.2 E key, 2 M.2 M key, 4 SATA 3.0
- Rich I/O: 2 Intel 10GbE, 2 Intel 2.5GbE, 2 COM, 6 USB 3.2 Gen 2, 4 USB 3.2 Gen 1, 3 USB 2.0
- Typically supports 10-Year CPU Life Cycle Until Q1’32 (Based on Intel IOTG Roadmap)
- Support EXT-OOB (Lite)
System
- Processor
- Intel® Bartlett Lake-S P-Core Only LGA 1700 Socket Processors, TDP support up to 125W Intel® Core™ 9 273PQE (12 Cores, 36M Cache, up to 5.9 GHz); 125W Intel® Core™ 9 273PE (12 Cores, 36M Cache, up to 5.7 GHz); 65W Intel® Core™ 9 273PTE (12 Cores, 36M Cache, up to 5.5 GHz); 45W Intel® Core™ 7 253PQE (10 Cores, 33M Cache, up to 5.7 GHz); 125W Intel® Core™ 7 253PE (10 Cores, 33M Cache, up to 5.5 GHz); 65W Intel® Core™ 7 253PTE (10 Cores, 33M Cache, up to 5.4 GHz); 45W Intel® Core™ 5 223PQE (8 Cores, 24M Cache, up to 5.5 GHz); 125W Intel® Core™ 5 223PE (8 Cores, 24M Cache, up to 5.4 GHz); 65W Intel® Core™ 5 223PTE (8 Cores, 24M Cache, up to 5.4 GHz); 45W Intel® Core™ 5 213PE (8 Cores, 24M Cache, up to 5.2 GHz); 65W Intel® Core™ 5 213PTE (8 Cores, 24M Cache, up to 5.2 GHz); 45W Intel® Bartlett Lake-S Hybrid LGA 1700 Socket Processors, TDP support up to 125W Intel® Core™ 7 251E (24 Cores, 36M Cache, up to 5.6 GHz); 65W Intel® Core™ 7 251TE (24 Cores, 36M Cache, up to 5.4 GHz); 45W Intel® Core™ 5 221E (14 Cores, 24M Cache, up to 5.2 GHz); 65W Intel® Core™ 5 221TE (14 Cores, 24M Cache, up to 5.0 GHz); 45W Intel® Core™ 5 211E (10 Cores, 20M Cache, up to 4.9 GHz); 65W Intel® Core™ 5 211TE (10 Cores, 20M Cache, up to 4.8 GHz); 45W Intel® Core™ 3 201E (4 Cores, 12M Cache, up to 4.8 GHz); 60W Intel® Core™ 3 201TE (4 Cores, 12M Cache, up to 4.6 GHz); 45W 14th Generation P-Core Only Intel® LGA 1700 Socket Processors, TDP support up to 125W Intel® Core™ i9-14901E (8 Cores, 36M Cache, up to 5.6 GHz); 65W Intel® Core™ i9-14901TE (8 Cores, 36M Cache, up to 5.5 GHz); 45W Intel® Core™ i7-14701E (8 Cores, 33M Cache, up to 5.4 GHz); 65W Intel® Core™ i7-14701TE (8 Cores, 33M Cache, up to 5.2 GHz); 45W Intel® Core™ i5-14501E (6 Cores, 24M Cache, up to 5.2 GHz); 65W Intel® Core™ i5-14501TE (6 Cores, 24M Cache, up to 5.1 GHz); 45W Intel® Core™ i5-14401E (6 Cores, 24M Cache, up to 4.7 GHz); 65W Intel® Core™ i5-14401TE (6 Cores, 24M Cache, up to 4.5 GHz); 45W 14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5 GHz); 65W Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 4.7 GHz); 65W Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W Intel® 300 (2 Cores, 6M Cache, up to 3.9 GHz); 46W Intel® 300T (2 Cores, 6M Cache, up to 3.4 GHz); 35W 13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 60W Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W 12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 125W Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W
- Chipset
- [ADS310-R680E] Intel® R680E Chipset [ADS310-Q670E] Intel® Q670E Chipset
- Memory
- [ADS310-R680E] Four 288-pin DIMM up to 128GB (ECC/Non-ECC) [ADS310-R680E] Dual Channel DDR4 3200 MHz [ADS310-Q670E] Four 288-pin DIMM up to 128GB (Non-ECC) [ADS310-Q670E] Dual Channel DDR4 3200 MHz
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- Intel® UHD Graphics 700 series
- Feature
- OpenGL 4.5, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
- Display
- 1 x VGA, resolution up to 1920x1200 @ 60Hz 2 x DP++, resolution up to 4096×2304 @ 60Hz 1 x HDMI 2.0a, resolution up to 4096x2160 @ 24Hz
- Quad Displays
- VGA + 2 DP++ + HDMI
Expansion
- Interface
- [ADS310-R680E] 1 x PCIe x16 (Gen 5) [ADS310-R680E] － Support PCIE1 : Riser card x16 or x8/x8 selected by BOM change [ADS310-R680E] 2 x PCIe x4 (Gen 4) [ADS310-R680E] 1 x PCIe x4 (Gen 3) (x4 signal) [ADS310-Q670E] 1 x PCIe x16 (Gen 5) [ADS310-Q670E] － Support PCIE1 : Riser card x16 or x8/x8 selected by BOM change [ADS310-Q670E] 2 x PCIe x4 (Gen 4) [ADS310-Q670E] 1 x PCIe x4 (Gen 3) (x1 signal)
- M.2
- 1 x M.2 2242/2260/2280 M key (PCIe x4 Gen4 NVMe) 1 x M.2 2242/2260/2280 M key (PCIe x4 Gen4 NVMe/SATA) 1 x M.2 2230 E key (PCIe/USB 2.0/Intel CNVi support) (Discrete Wifi 6E support)
Audio
- Audio Codec
- Realtek ALC888
Ethernet
- Controller
- 1 x Intel® I226-LM PCIe (10M/100M/1000Mbps/2.5G) (only Xeon, Core i9/i7/i5 support iAMT) 1 x Intel® I226-V PCIe (10M/100M/1000Mbps/2.5G) 2 x Intel® E610-XAT2 (10 GBASE-T/1 GbE/100 Mbps) (no support WOL)

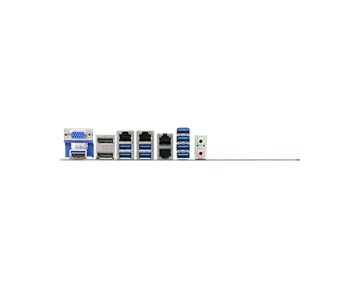

Rear I/O
- Ethernet
- 2 x 2.5GbE 2 x 10GbE
- USB
- 4 x USB 3.2 Gen 2 4 x USB 3.2 Gen 1
- Display
- 1 x VGA 2 x DP++ 1 x HDMI 2.0a
- Audio
- 1 x Line-out 1 x Mic-in 1 x Line-in (opt. by request, MOQ required)
Internal I/O
- Serial
- 2 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch)
- USB
- [ADS310-R680E] 2 x USB 3.2 Key B box header (Gen2) [ADS310-R680E] 3 x USB 2.0 (2.54mm pitch) (colay vertical Type A, MOQ required) [ADS310-Q670E] 2 x USB 3.2 Key B box header (Gen1) [ADS310-Q670E] 3 x USB 2.0 (2.54mm pitch) (colay vertical Type A, MOQ required)
- Audio
- 1 x Front Audio Header 1 x S/PDIF
- SATA
- 4 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10
- DIO
- 1 x 8-bit DIO
- SMBus
- 1 x SMBus
- PS/2
- 1 x PS/2 (2.54mm pitch)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Nuvoton TPM 2.0
Power
- Type
- ATX
- Connector
- 8-pin ATX 12V power 24-pin ATX power
- Consumption
- Typical: i9-12900K: 3.3V @ 0.28A (0.92W); 5V @ 2.16A (10.8W); 12V @ 1.42A (17.04W) Max.: i9-12900K 3.3V @ 1.19A (3.93W); 5V @ 3.91A (19.55W); 12V @ 26.86A (322.32W)
- RTC Battery
- CR2032 Coin Cell
OS Support
- Microsoft
- Windows 10 IoT Enterprise 64-bit Windows 11 LTSC
- Linux
- Linux
Environment
- Temperature
- Operating: -5°C ~ 65°C Storage: -20°C ~ 70°C with RTC Battery; -40°C ~ 85°C without RTC Battery
- Humidity
- Operating: 5% ~ 95% RH Storage: 5% ~ 95% RH
- MTBF
- 490,119 hrs @ 25°C; 270,102 hrs @ 45°C; 165,635 hrs @ 60°C; 118,767 hrs @ 70°C Calculation Model: Telcordia Issue 4 Environment: GB, GC - Ground Benign, Controlled
Mechanism
- Dimensions
- microATX Form Factor 244mm (9.6") x 244mm (9.6")
- Height
- PCB: 1.6mm Top Side: 33.5mm Bottom Side: 3.6mm
Standards and Certifications
- Certifications
- CE, FCC Class B, RoHS, UKCA
Packing List
- Packing List
- · 1 ADS310-R680E/Q670E motherboard · 1 COM port cable (Length: 300mm, 2 x COM ports) A81-015026-023G · 1 Serial ATA data cable (Length: 500mm) 332-553001-005G · 1 I/O shield －2LAN: A49-ADS630-010G －4LAN: A49-ADS630-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| ADS310-R680E | 770-ADS3102-000G | 4 UDIMM, 2 2.5GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0, 24-pin ATX/8-pin ATX 12V, Active thermal, -5 to 65°C |
| ADS310-Q670E | 770-ADS3102-100G | 4 UDIMM, 2 2.5GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0, 24-pin ATX/8-pin ATX 12V, Active thermal, -5 to 65°C |
| ADS310-R680E | 770-ADS3102-200G | 4 UDIMM, 2 2.5GbE, 2 10GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0, 24-pin ATX/8-pin ATX 12V, Active thermal, -5 to 65°C |
| ADS310-Q670E | 770-ADS3102-300G | 4 UDIMM, 2 2.5GbE, 2 10GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0, 24-pin ATX/8-pin ATX 12V, Active thermal, -5 to 65°C |
| ADS310-R680E | 770-ADS3102-400G | 4 UDIMM, 2 2.5GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0, TPM 2.0 (dTPM), 24-pin ATX/8-pin ATX 12V, Active thermal, -5 to 65°C |
| ADS310-Q670E | 770-ADS3102-500G | 4 UDIMM, 2 2.5GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0, TPM 2.0 (dTPM), 24-pin ATX/8-pin ATX 12V, Active thermal, -5 to 65°C |
| ADS310-R680E | 770-ADS3102-600G | 4 UDIMM, 2 2.5GbE, 2 10GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0, TPM 2.0 (dTPM), 24-pin ATX/8-pin ATX 12V, Active thermal, -5 to 65°C |
| ADS310-Q670E | 770-ADS3102-700G | 4 UDIMM, 2 2.5GbE, 2 10GbE, 2 RS-232/422/485, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0, TPM 2.0 (dTPM), 24-pin ATX/8-pin ATX 12V, Active thermal, -5 to 65°C |
| Item Name | Part Number | Description |
|---|---|---|
| USB 2.0 port cable | A81-001066-016G | Length: 350/398mm |
| USB 3.2 Gen2 port cable | A81-001075-017G | Length: 350mm |
| COM port cable | A81-015026-023G | Length: 300mm, 2 x COM ports |
| Serial ATA data cable | 332-553001-005G A81-002128-017G | Length: 500mm, W/LOCK Length: 500mm, W/LOCK, 90D |
| Thermal solution | A71-101136-000G A71-101137-000G A71-101145-000G A71-100201-000G | For 35W, Height: 29.39mm For 65W, Height: 46mm For 95W/125W, Height: 110mm For 10GbE LAN E610-XAT2 IC Cooler, Height: 35mm (Standard E610-XAT2 default have heatsink, only when with 125W CPU, need change heatsink to cooler.)(opt., MOQ required) |
| DP to HDMI Dongle | 612-D2H13M-000G | |
| M.2-COM4 | 770-M2COM1-000G | M.2 serial port module |
| M.2-2LAN | 770-M22LN1-000G | M.2 LAN port module |
| M.2-2PSE | 770-M22PS1-000G | M.2 PSE module |
