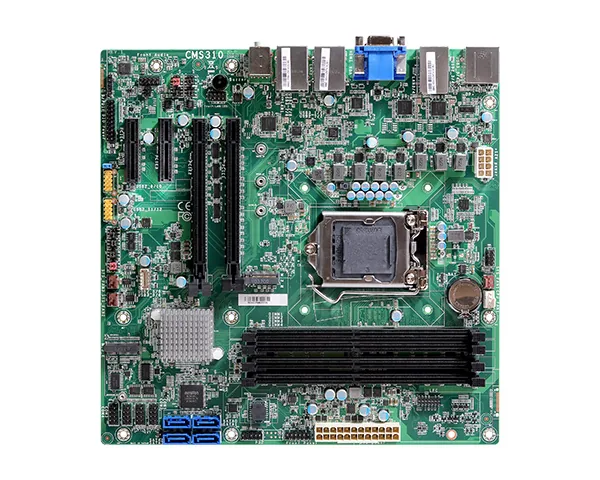

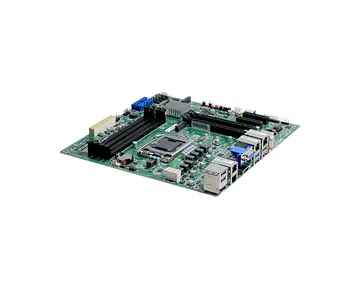

CMS310-W480E/Q470E

microATX, 10th Gen Intel® Core™, 4 DDR4, 2 PCIe x16, 2 PCIe x4, 1, 1 M.2 E key, 1 M.2 M key, 1 DP++, 1 HDMI, 1 VGA, 4 SATA 3.0

  • 10th Gen Intel® Core™ with Intel® W480E/Q470E chipset
  • 4 DDR4 DIMM up to 128GB
  • Supports triple independent displays: VGA, DP++, HDMI 1.4b
  • DP++ resolution up to 4096x2160 @ 60Hz, VGA resolution up to 1920x1200 @ 60Hz, HDMI resolution up to 4096x2160 @ 24Hz
  • Multiple expansion: 2 PCIe x16 (1 x16 or 2 x8 signal), 2 PCIe x4, 1 M.2 E key, 1 M.2 M key (support Optane Memory), 4 SATA 3.0

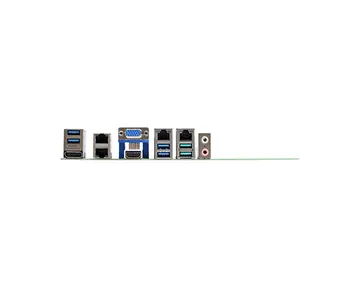

  • Rich I/O: up to 4 Intel GbE, 4 COM, 4 USB 3.2 Gen 2, 4 USB 3.2 Gen 1, 4 USB 2.0
  • 10-Year CPU Life Cycle Support Until Q2' 30 (Based on Intel IOTG Roadmap)
  • Support EXT-OOB (Lite)
KaphatóLaunched Megvásárlás (US)Buy online (US)
4K2K Display
ECC Memory
Multiple Expansion
12V DC-in
DDR4
RoHS Certification
UL Certification
CE Certification
FCC Certification
UKCA Certification
#EXT-OOB (Lite) #IoT #Windows 11 #Intel #4K2K Display #PCIe x16 #Windows #Linux #HDMI #VGA #Multiple Expansion #DDR4 #RoHS Certification #UL Certification #CE Certification #FCC Certification #10th Gen Intel® Comet Lake Processor #UKCA Certification

Főbb jellemzőkKey features

  • 10th Gen Intel® Core™ with Intel® W480E/Q470E chipset
  • 4 DDR4 DIMM up to 128GB
  • Supports triple independent displays: VGA, DP++, HDMI 1.4b
  • DP++ resolution up to 4096x2160 @ 60Hz, VGA resolution up to 1920x1200 @ 60Hz, HDMI resolution up to 4096x2160 @ 24Hz
  • Multiple expansion: 2 PCIe x16 (1 x16 or 2 x8 signal), 2 PCIe x4, 1 M.2 E key, 1 M.2 M key (support Optane Memory), 4 SATA 3.0
  • Rich I/O: up to 4 Intel GbE, 4 COM, 4 USB 3.2 Gen 2, 4 USB 3.2 Gen 1, 4 USB 2.0
  • 10-Year CPU Life Cycle Support Until Q2' 30 (Based on Intel IOTG Roadmap)
  • Support EXT-OOB (Lite)
