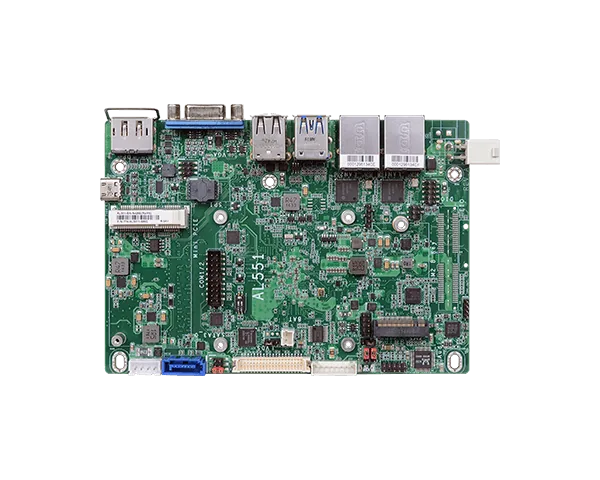

AL551

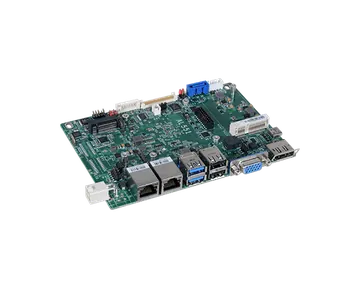

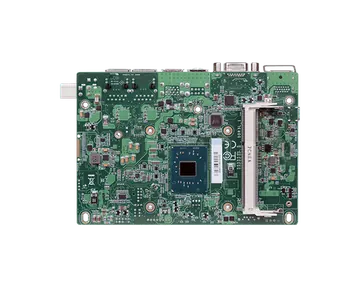

AL551, 3.5" SBC with Intel Atom®/Pentium®/Celeron®, designed with low power, rich I/O which is ideal for industrial control/data collection/industrial digital signage/IoT applications
- Intel Atom® E3900 3.5" SBC
- 1 DDR3L SODIMM up to 8GB
- Three independent displays: VGA + LVDS + DP++
- Wireless communication: mini PCIe
- Rich I/O: 2 Intel GbE, 2 COM, 2 USB 3.0, 4 USB 2.0
Főbb jellemzők
Tanúsítványok
#IoT
#Intel
#Fanless Design
#4K2K Display
#Windows
#Linux
#VGA
#DP
#DDR3L
#RoHS Certification
#CE Certification
#FCC Certification
#UKCA Certification
Főbb jellemzőkKey features
- Intel Atom® E3900 3.5" SBC
- 1 DDR3L SODIMM up to 8GB
- Three independent displays: VGA + LVDS + DP++
- Wireless communication: mini PCIe
- Rich I/O: 2 Intel GbE, 2 COM, 2 USB 3.0, 4 USB 2.0
System
- Processor
- Intel Atom® Processor E3900 Family, BGA 1296 Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W Intel Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W
- Memory
- One 204-pin SODIMM up to 8GB Single Channel DDR3L 1866MHz
- BIOS
- Insyde SPI 128Mbit (supports UEFI boot only)
Graphics
- Controller
- Intel® HD Graphics
- Feature
- OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0 HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4 HW Encode: H.264, MPEG2, MPEG4
- Display
- 1 x VGA 1 x LVDS 1 x DP++ VGA: resolution up to 2048x1536 @ 50Hz LVDS: dual channel 48-bit, resolution up to 1920x1200 @ 60Hz DP++: resolution up to 4096x2160 @ 60Hz
- Triple Displays
- VGA + LVDS + DP++
Expansion
- Interface
- 1 x Full-size mini-PCIe (USB/PCIe) 1 x Extension I/O connector (available upon request) 1 x M.2 B key 2242 (PCIe/USB 2.0/SATA 3.0)
Audio
- Audio Codec
- Realtek ALC262
Ethernet
- Controller
- 2 x Intel® I210AT PCIe (10/100/1000Mbps) 2 x Intel® I210IT PCIe (10/100/1000Mbps) (available upon request)

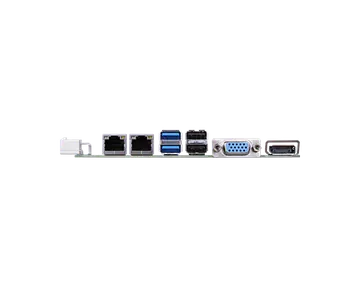

Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- USB
- 2 x USB 3.1 Gen1 2 x USB 2.0 1 x USB 3.1 Gen1 Type C OTG (Linux only, available upon request)
- Display
- 1 x VGA 1 x DP++ 1 x LVDS
Internal I/O
- Serial
- 2 x RS-232/422/485 (2.0mm pitch)
- USB
- 2 x USB 2.0 (2.0mm pitch)
- Display
- 1 x LVDS LCD Panel Connector 1 x LCD/Inverter Power
- Audio
- 1 x Audio (Line-out/Mic-in) Audio Speaker Out, Support 2 x 3W Speaker
- SATA
- 1 x SATA 3.0 (up to 6Gb/s) 1 x SATA Power
- DIO
- 1 x 8-bit DIO
- SMBus
- 1 x SMBus
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- fTPM2.0 (default) dTPM2.0 (opt.)
Power
- Type
- Single 12V +/-10% DC
- Connector
- Right Angle Connector (4-pin) DC-in Jack (available upon request) Vertical Type Connector (4-pin) (available upon request)
- Consumption
- Typical: E3950:12V @ 0.6A (7.2Watt) Max.: E3950:12V @ 2A (24Watt)
- RTC Battery
- Lithium 3V (210mAH)
OS Support
- OS Support (UEFI Only)
- Windows 10 IoT Enterprise (64-bit) Linux
Environment
- Temperature
- Operating: 0 to 60°C (Option: -20 to 70°C / -40 to 85 °C) Storage: -40 to 85°C
- Humidity
- Operating: 10 to 90% RH Storage: 10 to 90% RH
- MTBF
- 467,547 hrs @ 25°C; 277,970 hrs @ 45°C ; 179,655 hrs @ 60°C
Mechanism
- Dimensions
- 3.5" SBC Form Factor 146mm (5.75") x 102mm (4.02")
- Height
- PCB: 1.6mm Top Side: 15.5mm Bottom Side: 15.5mm
Standards and Certifications
- Certifications
- CE, FCC Class B, RoHS, UKCA
Packing List
- Packing List
- 1 AL551 board 1 COM port cable (Length: 300mm, 2 x COM ports) A81-015020-001G 1 Serial ATA data cable (Length: 500mm) 332-553001-205G 1 Serial ATA power cable (Length: 250mm) A81-004041-016G 1 Heat sink (Height: 25mm) - N series CPU A71-008119-001G - E series CPU A71-010038-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| AL551-BN-E3950 | 770-AL5511-200G | Fanless, Intel Atom® X7-E3950, 1 DDR3L SODIMM, 1VGA, 1 LVDS, 1 DP++, 2 LAN, 2 COM, 6 USB, 0 to 60°C |
| AL551-BN-E3940 | 770-AL5511-100G | Fanless, Intel Atom® X5-E3940, 1 DDR3L SODIMM, 1VGA, 1 LVDS, 1 DP++, 2 LAN, 2 COM, 6 USB, 0 to 60°C |
| AL551-BN-E3930 | 770-AL5511-000G | Fanless, Intel Atom® X5-E3930, 1 DDR3L SODIMM, 1VGA, 1 LVDS, 1 DP++, 2 LAN, 2 COM, 6 USB, 0 to 60°C |
| AL551-BN-N4200 | 770-AL5511-500G | Fanless, Intel Pentium® N4200, 1 DDR3L SODIMM, 1VGA, 1 LVDS, 1 DP++, 2 LAN, 2 COM, 6 USB, 0 to 60°C |
| AL551-BN-N3350 | 770-AL5511-400G | Fanless, Intel® Celeron® N3350, 1 DDR3L SODIMM, 1VGA, 1 LVDS, 1 DP++, 2 LAN, 2 COM, 6 USB, 0 to 60°C |
| AL551-EN-E3950 | 770-AL5511-600G | Fanless, Intel Atom® X7-E3950, 1 DDR3L SODIMM, 1VGA, 1 LVDS, 1 DP++, 2 LAN, 2 COM, 6 USB, -20 to 70°C |
| AL551-TN-E3950 | 770-AL5511-700G | Fanless, Intel Atom® X7-E3950, 1 DDR3L SODIMM, 1VGA, 1 LVDS, 1 DP++, 2 LAN, 2 COM, 6 USB, -40 to 85°C |
| Item Name | Part Number | Description |
|---|---|---|
| USB port cable | A81-001032-016G | Length: 200mm |
| Power adapter | 671-106012-000G | 60W, 12V |
| Heat spreader for AL551 E-Serial CPU | A71-808312-001G | |
| Heat spreader for AL551 N-Serial CPU | A71-808313-000G | |
| Heat sink for wide temp/E series CPU | A71-010038-010G | Height: 35mm |
| Audio cable | A81-022007-016G | Length: 160mm |
| 4 pin to DC jack cable | A81-004051-016G | Length: 100mm |
