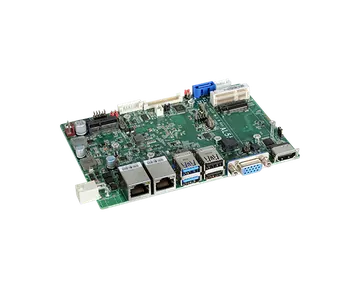

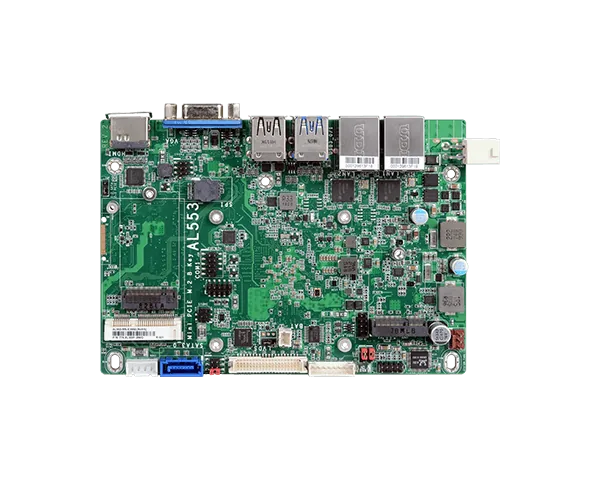

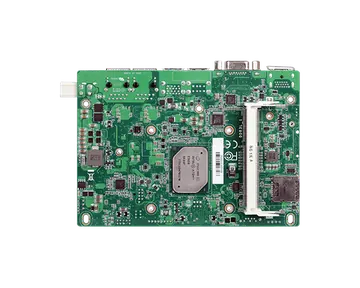

AL553
AL553, 3.5" SBC with Intel Atom®/Pentium®/Celeron®, designed with low power, rich I/O, wide voltage which is ideal for industrial control/data collection/industrial digital signage/IoT applications
- Intel® Atom® E3900 3.5" SBC
- 1 DDR3L SODIMM up to 8GB
- Three independent displays: VGA + LVDS + HDMI
- Multiple expansion: 1 M.2 B Key, 1 M.2 E Key, Mini PCIe
- Rich I/O: 2 Intel GbE, 1 COM, 2 USB 3.1 Gen1, 4 USB 2.0
Főbb jellemzők
Tanúsítványok
#IoT
#Intel
#Fanless Design
#Windows
#Linux
#HDMI
#VGA
#DDR3L
#RoHS Certification
#CE Certification
#FCC Certification
#UKCA Certification
Főbb jellemzőkKey features
- Intel® Atom® E3900 3.5" SBC
- 1 DDR3L SODIMM up to 8GB
- Three independent displays: VGA + LVDS + HDMI
- Multiple expansion: 1 M.2 B Key, 1 M.2 E Key, Mini PCIe
- Rich I/O: 2 Intel GbE, 1 COM, 2 USB 3.1 Gen1, 4 USB 2.0
System
- Processor
- Intel® Atom® Processor E3900 Family, BGA 1296 Intel® Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W Intel® Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W (upon request) Intel® Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W (upon request) Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W Intel® Celeron® Processor J3455, Quad Core, 2M Cache, 1.5GHz (2.3GHz), 10W
- Memory
- One 204-pin SODIMM up to 8GB Single Channel DDR3L 1866MHz
- BIOS
- Insyde SPI 128Mbit (supports UEFI boot only)
Graphics
- Controller
- Intel® HD Graphics
- Feature
- OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0 HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4 HW Encode: H.264, MPEG2, MPEG4
- Display
- 1 x VGA 1 x LVDS 1 x HDMI VGA: resolution up to 1920x1200 @ 60Hz LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz HDMI: resolution up to 3840x2160 @ 30Hz
- Triple Displays
- VGA + LVDS + HDMI
Expansion
- Interface
- 1 x Full-size mini-PCIe (USB/PCIe) with SIM slot (option) 1 x M.2 B key 2242 (PCIe/USB 2.0/SATA 3.0) 1 x M.2 E key 2230 (USB/PCIe)
Audio
- Audio Codec
- Realtek ALC888S
Ethernet
- Controller
- 2 x Intel® I210AT PCIe (10/100/1000Mbps) 2 x Intel® I210IT PCIe (10/100/1000Mbps) (available upon request)

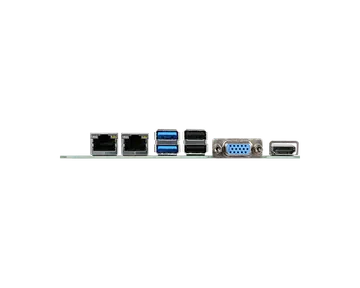

Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- USB
- 2 x USB 3.1 Gen1 2 x USB 2.0
- Display
- 1 x VGA 1 x HDMI 1 x LVDS
Internal I/O
- Serial
- 1 x RS-232/422/485 (2.0mm pitch)
- USB
- 2 x USB 2.0 (2.0mm pitch)
- Display
- 1 x LVDS LCD Panel Connector 1 x LCD/Inverter Power
- Audio
- 1 x Audio (Line-out/Mic-in)
- SATA
- 1 x SATA 3.0 (up to 6Gb/s) 1 x SATA Power
- DIO
- 1 x 8-bit DIO
- SMBus
- 1 x SMBus
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- fTPM2.0
Power
- Type
- Wide Range 9~36V DC
- Connector
- Right Angle Connector (4-pin) DC-in Jack (available upon request) Vertical Type Connector (4-pin) (available upon request)
- Consumption
- Typical: 7W, Max : 24W.
- RTC Battery
- CR2032 Coin Cell
OS Support
- OS Support (UEFI Only)
- Windows 10 IoT Enterprise (64-bit) Linux
Environment
- Temperature
- Operating: 0 to 60°C, -20 to 70°C, -40 to 85 °C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 618,325 hrs @ 25°C; 396,245 hrs @ 45°C ; 267,106 hrs @ 60°C
Mechanism
- Dimensions
- 3.5" SBC Form Factor 146mm (5.75") x 102mm (4.02")
- Height
- PCB: 1.6mm Top Side: 15.5mm Bottom Side: 8.0mm
Standards and Certifications
- Certifications
- CE, FCC Class B, RoHS, UKCA
Packing List
- Packing List
- 1 AL553 board 1 COM port cable(Length: 250mm, 1x COM port) 332-753040-000G 1 SATA data cable (Length : 500mm) 332-553001-205G 1 SATA power cable (Length: 250mm) A81-004041-016G 1 Heat sink - for N series CPU (Height: 25mm) A71-008119-001G - for E series CPU 0 to 60℃ (Height: 35mm) A71-010038-010G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| AL553-BN-E3950 | 770-AL5532-200G | Intel Atom® x7-E3950, 1 DDR3L SODIMM, 1VGA, 1 LVDS, 1 HDMI,1 COM, 2 LAN, 6 USB, 9-36VDC, Fanless, 0 to 60°C |
| AL553-BN-E3930 | 770-AL5532-000G | Intel Atom® x5-E3930, 1 DDR3L SODIMM, 1VGA, 1 LVDS, 1 HDMI, 2 LAN, 1 COM, 6 USB, 9-36VDC, Fanless, 0 to 60°C |
| AL553-BN-N3350 | 770-AL5532-300G | Intel® Celeron® N3350, 1 DDR3L SODIMM, 1VGA, 1 LVDS, 1 HDMI, 2 LAN, 1 COM, 6 USB, 9-36VDC, Fanless, 0 to 60°C |
| AL553-EN-E3950 | 770-AL5532-500G | Intel Atom® x7-E3950, 1 DDR3L SODIMM, 1VGA, 1 LVDS, 1 HDMI, 2 LAN, 1 COM, 6 USB, 9-36VDC, Fanless, -20 to 70°C |
| AL553-TN-E3950 | 770-AL5532-600G | Intel Atom® x7-E3950, 1 DDR3L SODIMM, 1VGA, 1 LVDS, 1 HDMI, 2 LAN, 1 COM, 6 USB, 9-36VDC, Fanless, -40 to 85°C |
| Item Name | Part Number | Description |
|---|---|---|
| COM cable | 332-753040-000G | Length: 250mm, 1 x COM |
| Power adapter | 671-106012-000G | 60W, 12V |
| Heatspreader for AL55x E Series CPU | A71-808312-001G | Height: 11mm |
| Heatspreader for AL55x N Series CPU | A71-808313-000G | Height: 11mm |
| Audio cable | A81-022007-016G | Length: 160mm |
| USB cable | A81-001032-016G | Length: 200mm |
| 4 pin to DC jack cable | A81-004051-016G | Length: 100mm |
