ALF51

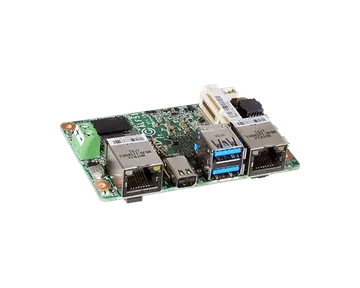

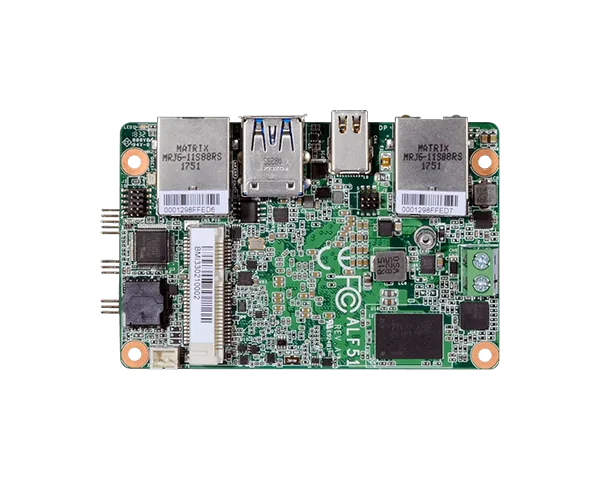

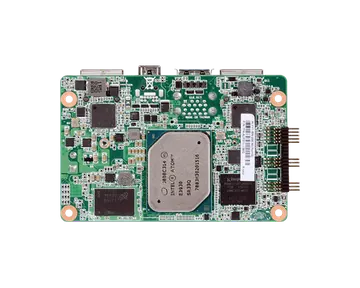

DFI's ALF51 is a 1.8" SBC with Intel Atom® E3900 series CPU that supports wide-temperature -40~+85°C to withstand the extreme climates, bringing flexibility in deployment for edge computing, IoT Gateway, and digital display.
- Intel Atom® Processor E3900 Series
- 2GB/4GB/8GB LPDDR4 Memory Down
- 1 Mini DP++
- Rich I/O: 2 Intel GbE, 1 COM, 2 USB 3.1 Gen 1, 1 USB 2.0
Főbb jellemzők
Tanúsítványok
#Ubuntu Certified
#IoT
#Intel
#Industrial Specialized Pi
#Mini PCIe
#4K2K Display
#Windows
#Linux
#DDR4
#Low Power Consumption
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- Intel Atom® Processor E3900 Series
- 2GB/4GB/8GB LPDDR4 Memory Down
- 1 Mini DP++
- Rich I/O: 2 Intel GbE, 1 COM, 2 USB 3.1 Gen 1, 1 USB 2.0
System
- Processor
- Intel Atom® Processor E3900 Family, BGA 1296 Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W
- Memory
- 2GB/4GB/8GB LPDDR4 Memory Down Single Channel LPDDR4 2400MHz
- BIOS
- Insyde SPI 128Mbit (supports UEFI boot only)
Graphics
- Controller
- Intel® HD Graphics
- Feature
- OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0 HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4 HW Encode: H.264, MPEG2, MPEG4
- Display
- 1 x Mini DP++ Mini DP++: resolution up to 4096x2160 @ 60Hz
Storage
- eMMC
- 1 x 16GB/32GB/64GB eMMC
Expansion
- Interface
- 1 x Full-size Mini PCIe (PCIe/USB 2.0, optional USB 3.1 Gen1/USB 2.0)
Ethernet
- Controller
- 2 x Intel® I210AT PCIe (10/100/1000Mbps) or 2 x Intel® I210IT PCIe (10/100/1000Mbps)

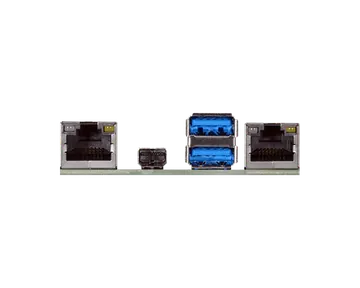

Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- USB
- 2 x USB 3.1 Gen 1
- Display
- 1 x Mini DP++
Internal I/O
- Serial
- 1 x RS-232/422/485 (1.27mm pitch)
- USB
- 1 x USB 2.0 (1.27mm pitch)
- DIO
- 1 x 8-bit DIO
- SMBus
- 1 x SMBus
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- fTPM 2.0
Power
- Type
- Single 12V +/-10% DC
- Connector
- 2-pin Terminal Block
- Consumption
- Typical: E3940:12V @ 0.29A (3.48Watt) Max.: E3940:12V @ 1.30A (15.6Watt)
- RTC Battery
- CR2032 Coin Cell
OS Support
- OS Support (UEFI Only)
- Windows 10 IoT Enterprise 64-bit Linux
Environment
- Temperature
- Operating: 0 to 60°C (Option: -20 to 70°C / -40 to 85 °C) Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 868,962 hrs @ 25°C; 638,889 hrs @ 45°C ; 465,382 hrs @ 60°C
Mechanism
- Dimensions
- 1.8" SBC Form Factor 84mm (3.31") x 55mm (2.17")
- Height
- PCB: 1.6mm Top Side: 16.34mm Bottom Side: 3.4mm
Standards and Certifications
- Certifications
- CE, FCC, RoHS
Packing List
- Packing List
- 1 ALF51 board 1 USB port cable (Length: 200mm) A81-001076-016G 1 COM port cable (Height: 300mm) A81-015050-016G 1 Heat spreader (Height: 11mm): A71-808314-000G (for E Series CPU) / A71-808314-010G (for N Series CPU)
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| ALF51-BN-26E40 | 770-ALF511-000G | Fanless, Intel Atom® X5-E3940, LPDDR4 2GB on board, eMMC 64GB, 1 Mini DP++, 2 LAN, 1 COM, 3 USB, 0 to 60°C |
| ALF51-BN-26E30 | 770-ALF511-100G | Fanless, Intel Atom® X5-E3930, LPDDR4 2GB on board, eMMC 64GB, 1 Mini DP++, 2 LAN, 1 COM, 3 USB, 0 to 60°C |
| ALF51-BN-26N50 | 770-ALF511-200G | Fanless, Intel® Celeron® N3350, LPDDR4 2GB on board, eMMC 64GB, 1 Mini DP++, 2 LAN, 1 COM, 3 USB, 0 to 60°C |
| ALF51-EN-26E40 | 770-ALF511-300G | Fanless, Intel Atom® X5-E3940, LPDDR4 2GB on board, eMMC 64GB, 1 Mini DP++, 2 LAN, 1 COM, 3 USB, -20 to 70°C |
| ALF51-EN-26E30 | 770-ALF511-400G | Fanless, Intel Atom® X5-E3930, LPDDR4 2GB on board, eMMC 64GB, 1 Mini DP++, 2 LAN, 1 COM, 3 USB, -20 to 70°C |
| ALF51-TN-26E40 | 770-ALF511-500G | Fanless, Intel Atom® X5-E3940, LPDDR4 2GB on board, eMMC 64GB, 1 Mini DP++, 2 LAN, 1 COM, 3 USB, -40 to 85°C |
| ALF51-TN-26E30 | 770-ALF511-600G | Fanless, Intel Atom® X5-E3930, LPDDR4 2GB on board, eMMC 64GB, 1 Mini DP++, 2 LAN, 1 COM, 3 USB, -40 to 85°C |
| ALF51-BN-46E40 | 770-ALF511-700G | Fanless, Intel Atom® X5-E3940, LPDDR4 4GB on board, eMMC 64GB, 1 Mini DP++, 2 LAN, 1 COM, 3 USB, 0 to 60°C |
| ALF51-TN-46E40 | 770-ALF511-800G | Fanless, Intel Atom® X5-E3940, LPDDR4 4GB on board, eMMC 64GB, 1 Mini DP++, 2 LAN, 1 COM, 3 USB, -40 to 85°C |
| ALF51-BN-86E40 | 770-ALF511-900G | Fanless, Intel Atom® X5-E3940, LPDDR4 8GB on board, eMMC 64GB, 1 Mini DP++, 2 LAN, 1 COM, 3 USB, 0 to 60°C |
| ALF51-TN-86E40 | 770-ALF511-A00G | Fanless, Intel Atom® X5-E3940, LPDDR4 8GB on board, eMMC 64GB, 1 Mini DP++, 2 LAN, 1 COM, 3 USB, -40 to 85°C |
| Item Name | Part Number | Description |
|---|---|---|
| Heat sink for E series CPU 0 to 60°C / wide temp | A71-008110-000G | Height: 27mm |
| Heat sink for N series CPU 0 to 60°C | A71-008113-000G | Height: 23mm |
| Power adapter + 2 pole terminal to DC Jack cable | 671-106012-000G/A81-004013-000G | 60W, 12V, DC jack |
