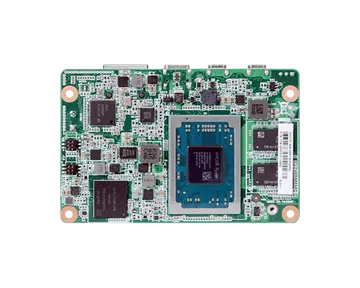

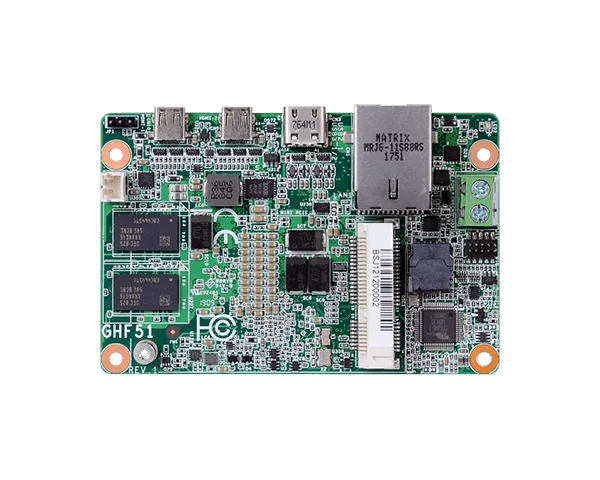

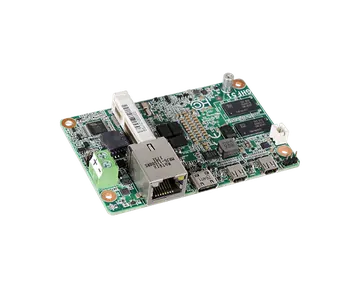

GHF51
GHF51, 1.8" SBC with AMD Ryzen™ Embedded R1000 Series, designed with AMD Ryzen, Pi size, Ubuntu-certified which is ideal for robotic arms/Vehicle Surveillance System/Facial recognition applications.
- AMD Ryzen™ Embedded R1000 Series
- Small form factor 1.8" SBC for space-limited applications
- Single Channel DDR4 Memory Down up to 4GB/8GB
- HDMI 1.4 resolution supports up to 4096x2160 @ 24Hz
- Expansion and Storage: 1 Mini PCIe, 1 SMBus
- Rich I/O: 1 Intel GbE, 1 USB 3.1 Gen 2, 2 Micro HDMI
Főbb jellemzők
Tanúsítványok
#Edge AI Computing
#Ubuntu Certified
#IoT
#AMD
#Industrial Specialized Pi
#Mini PCIe
#Fanless Design
#Compact Size
#4K2K Display
#Windows
#Linux
#HDMI
#12V DC-in
#DDR4
#Low Power Consumption
#RoHS Certification
#CE Certification
#FCC Certification
#UKCA Certification
Főbb jellemzőkKey features
- AMD Ryzen™ Embedded R1000 Series
- Small form factor 1.8" SBC for space-limited applications
- Single Channel DDR4 Memory Down up to 4GB/8GB
- HDMI 1.4 resolution supports up to 4096x2160 @ 24Hz
- Expansion and Storage: 1 Mini PCIe, 1 SMBus
- Rich I/O: 1 Intel GbE, 1 USB 3.1 Gen 2, 2 Micro HDMI
System
- Processor
- AMD® Ryzen™ Embedded R1606G, Dual Core, 1MB Cache, 3 CU, 2.6GHz, 12W AMD® Ryzen™ Embedded R1505G, Dual Core, 1MB Cache, 3 CU, 2.4GHz, 12W AMD® Ryzen™ Embedded R1305G, Dual Core, 3 CU, 1.5GHz, 8-10W AMD® Ryzen™ Embedded R1102G, Dual Core, 3 CU, 1.2GHz, 6W
- Memory
- DDR4 Memory Down up to 4GB/8GB Single Channel DDR4 2400MHz
- BIOS
- AMI SPI 64Mbit
Graphics
- Controller
- AMD Vega GPU with up to 3 computing units.
- Feature
- H.265 decode/encode support, VP9 decode.
- Display
- 2 x Micro HDMI HDMI 1.4: resolution up to 4096x2160 @ 24Hz
Storage
- eMMC
- 1 x 16GB/32GB/64GB eMMC
Expansion
- Interface
- 1 x Full-size Mini PCIe (PCIe Gen2/USB 2.0, opt: USB 3.1 Gen2/USB 2.0)
Ethernet
- Controller
- 1 x Intel® I211AT PCIe (10/100/1000Mbps) or 1 x Intel® I210IT PCIe (10/100/1000Mbps)

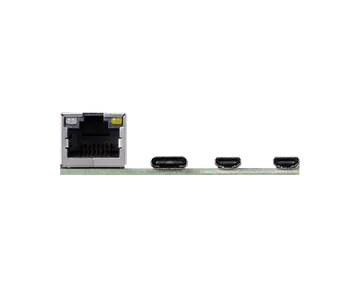

Rear I/O
- Ethernet
- 1 x GbE (RJ-45)
- USB
- 1 x Type C USB 3.1 Gen 2
- Display
- 2 x Micro HDMI (HDMI 1.4)
Internal I/O
- DIO
- 1 x 8-bit DIO
- SMBus
- 1 x SMBus
Watchdog Timer
- Output & Interval
- Software Reset, Programmable via Software from 1 to 655,535 Seconds
Security
- TPM
- fTPM 2.0
Power
- Type
- Single 12V +/-5% DC
- Connector
- 2-pin Terminal Block
- Consumption
- Typical: R1505G: 12V @ 0.37A (4.44W) Max: R1505G: 12V @ 1.74A (20.88W)
- RTC Battery
- CR2032 Coin Cell
OS Support
- OS Support (UEFI Only)
- Windows 10 IoT Enterprise 64-bit Ubuntu
Environment
- Temperature
- Operating: 0 to 60°C/ -20 to 70°C(opt.) Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 872,484 hrs @ 25℃; 635,789 hrs @ 45℃; 460,442 hrs @ 60℃
Mechanism
- Dimensions
- 1.8" SBC Form Factor 84mm (3.31") x 55mm (2.17")
- Height
- PCB: 1.60mm Top Side: 13.8mm, Bottom Side: 2.00mm
Standards and Certifications
- Certifications
- CE, FCC, RoHS, UKCA
Packing List
- Packing List
- 1 GHF51 board 1 Heat spreader (Height: 11mm) A71-808322-000G 1 Screw of Mini PCIe card A32-E12016-050G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
- Edge Servers, Industrial Motherboards & Wallmount Rackmount IPC Systems Catalog (PDF)
- GHF51 Datasheet (PDF)
- DFI's AMD Ryzen R1000-Powered GHF51 Development Kit (VIDEO)
- Testing Review: Smallest RYZEN SBC - DFI GHF51 Review (VIDEO)
- First Workstation-Grade Motherboards for Intel Comet Lake Emerge (VIDEO)
- Testing Review: 1.8" power house Ryzen 1000 based SBC - GHF51 from DFI (VIDEO)
- Success Story: Facial Recognition Solution (PDF)
- An Ultra Tiny RYZEN Powered SBC! Hands-On With The Smallest AMD PC! GHF51 First Look (VIDEO)
- Tiny RYZEN SBC | DFI GHF51 | Review | #AMD #SBC (VIDEO)
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| GHF51-BN-46R15 | 770-GHF512-000G | AMD® Ryzen™ Embedded R1505G, DDR4 4 GB on board, eMMC 64GB, 2 Micro HDMI, 1 LAN, 1 USB 3.1 Gen2, 12VDC, Fanless, 0 to 60°C |
| GHF51-BN-46R16 | 770-GHF512-100G | AMD® Ryzen™ Embedded R1606G, DDR4 4 GB on board, eMMC 64GB, 2 Micro HDMI, 1 LAN, 1 USB 3.1 Gen2, 12VDC, Fanless, 0 to 60°C |
| GHF51-EN-46R16 | 770-GHF512-300G | AMD® Ryzen™ Embedded R1606G, DDR4 4 GB on board, eMMC 64GB, 2 Micro HDMI, 1 LAN, 1 USB 3.1 Gen2, 12VDC, Fanless, -20 to 70℃ |
| GHF51-BN-46R11 | 770-GHF512-400G | AMD® Ryzen™ Embedded R1102G, DDR4 4 GB on board, eMMC 64GB, 2 Micro HDMI, 1 LAN, 1 USB 3.1 Gen2, 12VDC, Fanless, 0 to 60°C |
| GHF51-BN-46R13 | 770-GHF512-500G | AMD® Ryzen™ Embedded R1305G, DDR4 4 GB on board, eMMC 64GB, 2 Micro HDMI, 1 LAN, 1 USB 3.1 Gen2, 12VDC, Fanless, 0 to 60°C |
| GHF51-BN-86R16 | 770-GHF512-600G | AMD® Ryzen™ Embedded R1606G, DDR4 8 GB on board, eMMC 64GB, 2 Micro HDMI, 1 LAN, 1 USB 3.1 Gen2, 12VDC, Fanless, 0 to 60°C |
| Item Name | Part Number | Description |
|---|---|---|
| Power adapter | 671-106012-000G | 60W, 12V, DC jack |
| SMBus cable | A81-009353-016G | |
| Front panel cable | A81-020047-016G | |
| Heat sink for 0~60°C | A71-008127-010G | Height: 29.66mm |
| Heat sink for -20~70°C | A71-008127-020G | Height: 30.7mm |
| 2-pole terminal to DC Jack cable | A81-004013-000G | |
| DIO cable | A81-009203-018G |
