DFI Networker Kft.

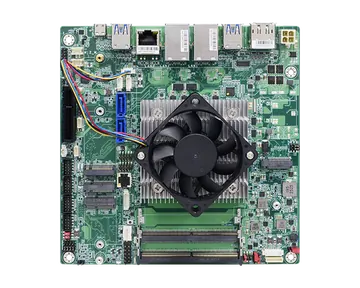

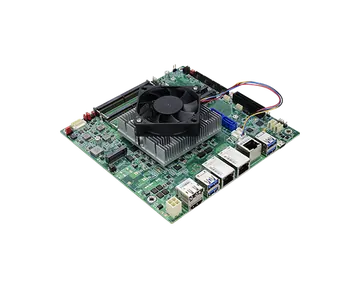

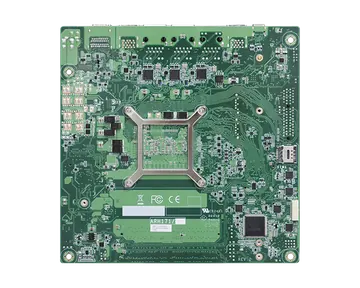

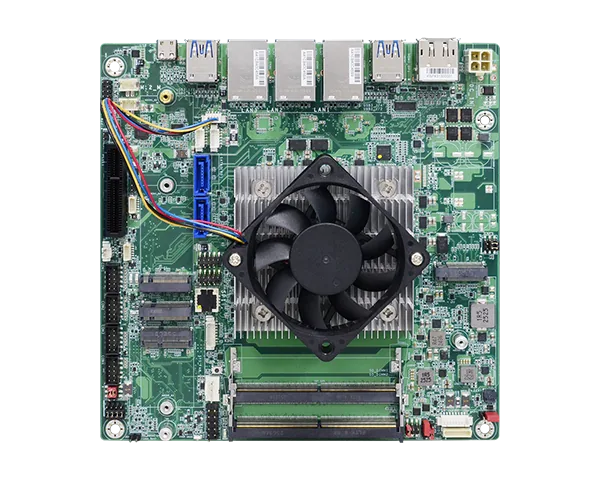

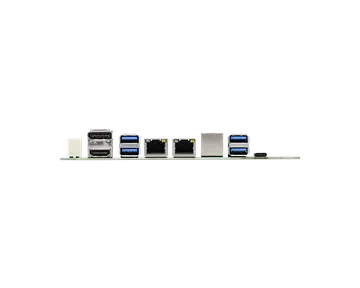

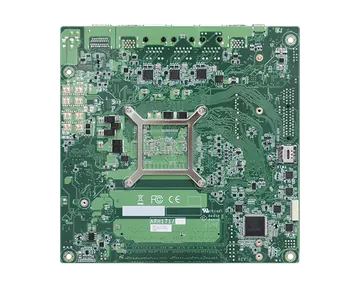

ARH171/ARH173

Mini-ITX, Intel® Arrow Lake H/U, Meteor Lake H/U Processors, 2 DDR5 SODIMM, 1 PCIe x4, 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key, 1 M.2 A Key, 1 DP++, 1 HDMI, 1 USB-Type C, 1 M2A Modular, up to 3 2.5GbE LAN, 4 USB 3.2, 1 USB Type C, 4 USB2.0, 2 SATA3.0, 4 COM

  • Intel® Arrow Lake H/U, Meteor Lake H/U Processors
  • 2 DDR5 SODIMM up to 96GB/128GB
  • Quad Displays: 1 DP++ + 1 HDMI + 1 USB Type C + 1 M2A Modular (eDP/LVDS/VGA)
  • Multiple Expansion: 1 PCIe x4, 1 M.2 M key, 1 M.2 B key, 1 M.2 A Key
  • Support MIPI-CSI for camera (MTL only)
  • ARL-U/H Typically supports 5-Year CPU Life Cycle Until Q4’ 29 (Based on Intel’s roadmap)
  • MTL-U/H Typically supports 10-Year CPU Life Cycle Until Q4’ 32 (Based on Intel’s roadmap
ElőzetesPreliminary
4K2K Display
Multiple Expansion
Quad Independent Display
DDR5
Rich I/O
RoHS Certification
CE Certification
FCC Certification
UKCA Certification
#DDR5 #Edge AI Computing #USB Type-C DP #SMBus #M.2 #12-28V DC-in #M.2 A display #Intel® Arrow Lake H/U Processors #Intel® Meteor Lake H/U Processors #IoT #AI #Windows 11 #Intel #4K2K Display #Windows #Linux #HDMI #DP #Multiple Expansion #12V DC-in #RoHS Certification #CE Certification #FCC Certification #2.5G Ethernet #UKCA Certification

Főbb jellemzőkKey features

  • Intel® Arrow Lake H/U, Meteor Lake H/U Processors
  • 2 DDR5 SODIMM up to 96GB/128GB
  • Quad Displays: 1 DP++ + 1 HDMI + 1 USB Type C + 1 M2A Modular (eDP/LVDS/VGA)
  • Multiple Expansion: 1 PCIe x4, 1 M.2 M key, 1 M.2 B key, 1 M.2 A Key
  • Support MIPI-CSI for camera (MTL only)
  • ARL-U/H Typically supports 5-Year CPU Life Cycle Until Q4’ 29 (Based on Intel’s roadmap)
  • MTL-U/H Typically supports 10-Year CPU Life Cycle Until Q4’ 32 (Based on Intel’s roadmap

Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
