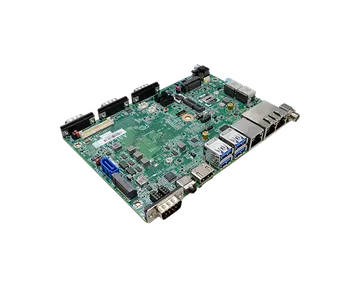

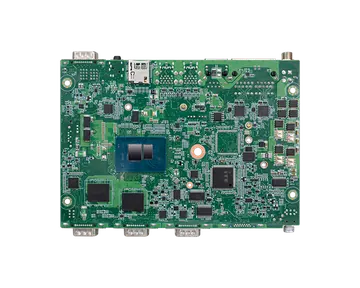

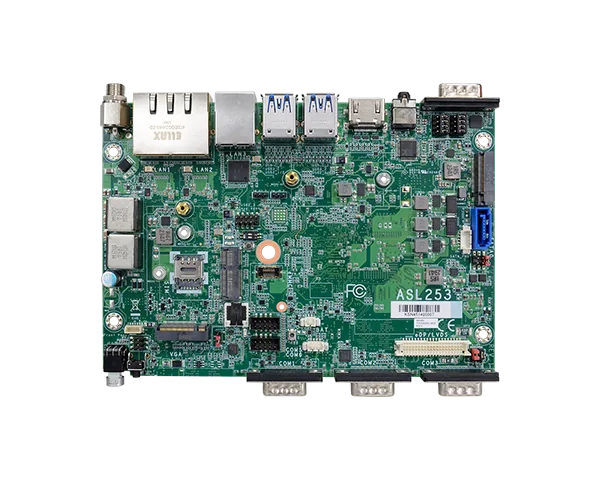

ASL253
4" SBC, Intel Atom® RE Series, LPDDR5 Memory Down, 1 M.2 B+M Key, 1 M.2 A+E Key, HDMI/USB-C/eDP, 1 GbE, 2 2.5 GbE, 4 USB 3.2, 3 COM, 1 COM/DIO, Internal: 1 USB 2.0 + 2 COM, OOB, -40 to 85°C
- Intel® Atom® Processor Amston Lake Series
- On Board OOB built-in (Opt.)
- Rich I/O: 2 2.5GbE, 1 GbE, 4 USB 3.2, 3 COM, 1 COM/DIO, Internal: 1 USB 2.0, 2 COM
- High speed LPDDR5 4800 memory down
- Up to Quad Display Support via HDMI/USB-C/eDP, Quad display support by Dev
- On Board SATA III/ M.2/ eMMC (up to 128GB, optional) Storage solution
- Intel TCC within the system
- Support OOB
Főbb jellemzők
Tanúsítványok
#9~36V DC-in
#LVDS
#eDP
#LPDDR5
#M.2
#eMMC
#OOB
#Out-Of-Band (OOB)
#Intel Atom® Amston Lake Processors
#IoT
#Windows 11
#Fanless Design
#1G Ethernet
#Windows
#Linux
#HDMI
#2.5G Ethernet
#TSN
Főbb jellemzőkKey features
- Intel® Atom® Processor Amston Lake Series
- On Board OOB built-in (Opt.)
- Rich I/O: 2 2.5GbE, 1 GbE, 4 USB 3.2, 3 COM, 1 COM/DIO, Internal: 1 USB 2.0, 2 COM
- High speed LPDDR5 4800 memory down
- Up to Quad Display Support via HDMI/USB-C/eDP, Quad display support by Dev
- On Board SATA III/ M.2/ eMMC (up to 128GB, optional) Storage solution
- Intel TCC within the system
- Support OOB
System
- Processor
- Intel Atom® RE Series Intel® Atom® X7211RE 2 Cores, 1.0GHz to 3.2 GHz Intel® Atom® X7213RE 2 Cores, 2.0GHz to 3.4 GHz Intel® Atom® X7433RE 4 Cores, 1.5GHz to 3.4 GHz Intel® Atom® X7835RE 8 Cores, 1.3GHz to 3.6 GHz
- Memory
- 8GB/16GB LPDDR5 4800 Memory down
- BIOS
- AMI SPI 256Mbit (supports UEFI boot only)
Graphics
- Controller
- Intel® UHD Graphics
- Feature
- Execution Units: Up to 32 EUs 3D API: Open GL 4.6, DirectX12, Vulkan 1.2 (Windows) Mesa 3D, OpenGL 4.6, Vulkan 1.2 (Linux) Precision: FP32, FP16, INT8 Compute: OpenCL 3.0
- Display
- 1 x eDP(Default)/LVDS 1 x HDMI 1.4 1 x USB-C Alt. Mode, one more USB-C(opt.)
Storage
- Internal
- 1 x M.2 2242/2280 M key (SATA/PCIe) 1 x SATA III 1 x eMMC (up to 128GB,optional)
Expansion
- Interface
- 1 x M.2 2242/2280 M key: PCIex1/SATA 1 x M.2 2230 E Key: USB2.0/PCIe 1 x M.2 3042/3052 B key: USB3.0/USB2.0/PCIe (PCIe x2 support by project)
Audio
- Audio Codec
- ALC888S
Ethernet
- Controller
- 2 x Intel Ethernet controller i226 2.5GbE (TSN project support) 1 x Intel Ethernet controller i210 GbE

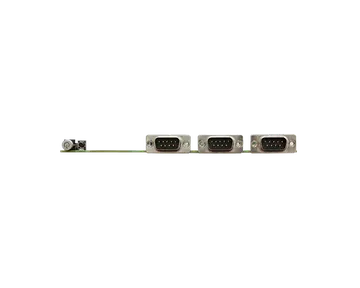

Front I/O
- Serial
- 3 x RS232/422/485 DB9 connector

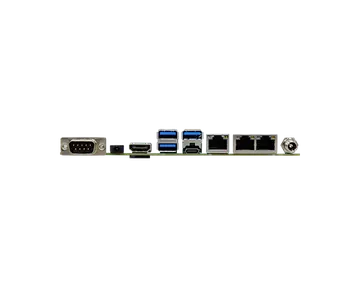

Rear I/O
- Ethernet
- 2 x 2.5GbE RJ45 1 x GbE RJ45
- Serial
- 1 x COM/DIO port
- USB
- 3 x USB 3.2 type A 1 x USB-C 3.2
- DIO
- 1 x HDMI
- Audio
- 1 x 3.5mm Line out/Mic In
- Storage
- 1 x MicroSD (only for OOB function update)
Internal I/O
- Serial
- 2 x RS232
- Display
- 1 x 40 pin LVDS/eDP (Default eDP)
- SATA
- 1 x SATA 3.0 1 x 5V SATA Power (support SATA HDD LED via front panel)
- SMBus
- 1 x SMBus
- Front Panel
- 1 x front panel
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- TPM 2.0 support
Power
- Type
- Wide Range 9~36VDC
- Connector
- DC Jack (or vertical type 4pin connector)
- RTC Battery
- CR2032 Coin Cell
OS Support
- Microsoft
- Windows 11 IoT Enterprise
- Linux
- Ubuntu 22.04
Environment
- Temperature
- Operating: -40 to 80°C with 0.2 m/s air flow -40 to 85°C with 0.2 m/s air flow (by project support)
- Humidity
- Storage: 5 to 90% RH
Mechanism
- Dimensions
- 4" SBC Form Factor 165mm (6.5") x 115mm (4.53")
Standards and Certifications
- Certifications
- CE, FCC ClassA
Packing List
- Packing List
- • 1 ASL253 board • 1 SATA data with 4pin power cable • 1 Heatsink
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| ASL253 | 770-ASL2531-000G | Intel® Atom® X7835RE, 16GB Memory down, -40 to 80°C, I/O (3 USB-A + 1 USB-C, DFI OOB(Opt.), 2 2.5GbE + 1 1GbE, 2 RS232/422/485, 1 RS232, 1 RS232/DIO, 2 RS232 via Pin header), Display (1 HDMI, 1 eDP(Def.)/LVDS, 1 DP 1.2 Alt. Mode via USB-C), Expansion (M.2 M key: PCIe/SATA, M.2 B Key: USB3.0/USB2.0/PCIe, M.2 E Key: USB2.0/PCIe) |
| ASL253 | 770-ASL2531-500G | Intel® Atom® X7433RE, 16GB Memory down, -40 to 80°C, I/O (3 USB-A + 1 USB-C, DFI OOB(Opt.), 2 2.5GbE + 1 1GbE, 2 RS232/422/485, 1 RS232, 1 RS232/DIO, 2 RS232 via Pin header), Display (1 HDMI, 1 eDP(Def.)/LVDS, 1 DP 1.2 Alt. Mode via USB-C), Expansion (M.2 M key: PCIe/SATA, M.2 B Key: USB3.0/USB2.0/PCIe, M.2 E Key: USB2.0/PCIe) |
| Item Name | Part Number | Description |
|---|---|---|
| Adapter | 671-106012-000G | 60W 12V inlet C14, locable DC Jack 5.5/2.5mm, cable length 1500mm |
| Power Cord | 332-700010-201G A81-004003-000G A81-000001-000G A81-000046-000G | Power Cord US 3pin 1830mm Length Power Cord EU 2pin 1830mm Length Power Cord China 3pin 1830mm Length Power Cord JP 3pin 1830mm length (with DFI PSE logo) |
| EMMC module | 774-EMMCBD1-000G 774-EMMCBD1-200G | EMMC Board 64GB, -40°C ~ +85°C EMMC Board 128GB, -40°C ~ +85°C |
