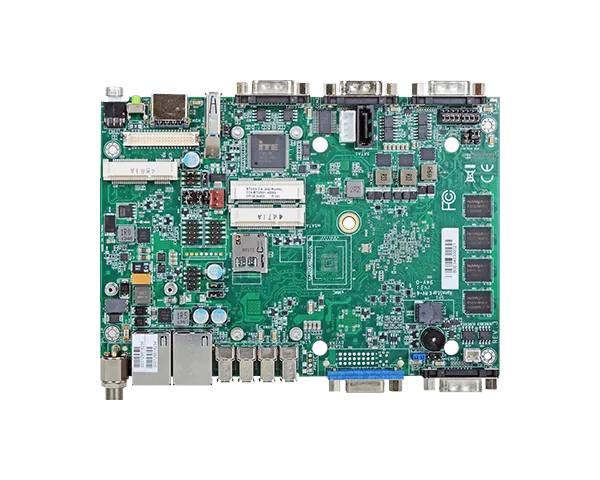

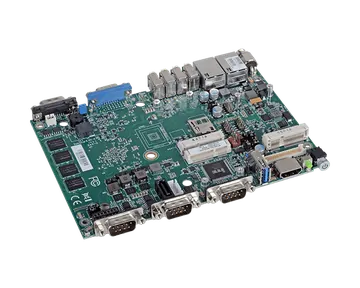

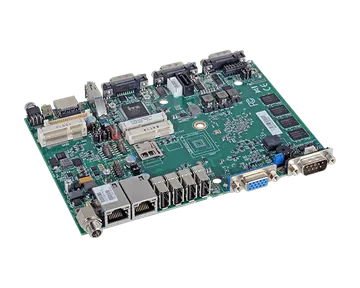

BT253
The platform of SBC boards with BGA 1170 packaging technology features low-power consumption at only 5-10W TDP. By means of a significant improvement in onboard graphics capability, BT253 features 3 display output, including 1 LVDS, 1 HDMI, and 1 VGA (default) or 1 DVI-I (optional).
- Intel Atom® Processor E3800 4" SBC
- 2GB/4GB DDR3L ECC memory down
- 1 VGA, 1 LVDS, 1 HDMI
- Expansion: 3 Mini PCIe
- Rich I/O: 2 Intel GbE, 6 COM, 1 USB 3.0, 5 USB 2.0
Főbb jellemzők
Tanúsítványok
#IoT
#Intel
#Mini PCIe
#Fanless Design
#Windows
#Linux
#HDMI
#VGA
#DDR3L
#RoHS Certification
#UL Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- Intel Atom® Processor E3800 4" SBC
- 2GB/4GB DDR3L ECC memory down
- 1 VGA, 1 LVDS, 1 HDMI
- Expansion: 3 Mini PCIe
- Rich I/O: 2 Intel GbE, 6 COM, 1 USB 3.0, 5 USB 2.0
System
- Processor
- Intel Atom® E3845, Quad Core, 2M Cache, 1.91GHz, 10W Intel Atom® E3825, Dual Core, 1M Cache, 1.33GHz, 6W Intel® Celeron® N2807, Dual Core, 1M Cache, 1.58GHz (2.16GHz), 4.3W Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W
- Memory
- 2GB/4GB DDR3L ECC memory down (-E45/-E25) 2GB/4GB DDR3L memory down (-J00/-N07) Single channel DDR3L 1333MHz (-E45/-J00/-N07) Single channel DDR3L 1066MHz (-E25)
- BIOS
- AMI SPI 64Mbit
Graphics
- Controller
- Intel® HD Graphics
- Feature
- Supports hardware acceleration for DirectX 11, OCL 1.2, OGL 4.0, H.264, MPEG2, MVC, VC-1, WMV9 and VP8 (supported version dependent on OS)
- Display
- 1 x LVDS 1 x HDMI 1 x VGA LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @ 60Hz HDMI, DVI: resolution up to 1920x1080 @ 60Hz VGA: 24-bit, resolution up to 2560x1600 @ 60Hz
Expansion
- Interface
- 3 x Mini PCIe 1 x SIM
Audio
- Audio Codec
- Realtek ALC888 (Opt.)
Ethernet
- Controller
- 2 x Intel® I210 PCIe (10/100/1000Mbps)
Front I/O
- Serial
- 3 x RS232/422/485 (DP-9)
- USB
- 1 x USB 3.0
- Display
- 1 x HDMI
Rear I/O
- Ethernet
- 2 x GbE (RJ45)
- Serial
- 1 x RS232/422/485 (DP-9)
- USB
- 4 x USB 2.0
- Display
- 1 x VGA
Internal I/O
- Serial
- 2 x RS232 (2.0mm pitch)
- USB
- 1 x USB 2.0
- Display
- 1 x LVDS
- Audio
- 1 x Mic-in (Opt.)
- SATA
- 1 x SATA 2.0 (up to 3Gb/s)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Available Upon Request
Power
- Type
- Wide Range 16~24V
- Connector
- DC-in
- Consumption
- BT253-C4-E45: 18.12W with E3845 at 1.91GHz and 4GB DDR3L ECC memory down
OS Support
- OS Support
- Windows 10 IoT Enterprise (64-bit) Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8.1 Enterprise x86 (32-bit) Windows 8.1 Enterprise x64 (64-bit) Linux
Environment
- Temperature
- Operating: 0°C to 60°C - Atom, Celeron (Fanless) 0°C to 85°C - Celeron (Fanless), upon request. -20°C to 85°C - Atom (Fanless), upon request. Storage: -40°C to 85°C
- Humidity
- Operating: 5% to 90% RH Storage: 5% to 90% RH
Mechanism
- Dimensions
- 4" board 165mm x 115mm (6.49" x 4.53")
- Height
- PCB: 1.6mm Top Side: 14.31mm Bottom Side: 2mm
Standards and Certifications
- Certifications
- CE, FCC, RoHS, UL
Packing List
- Packing List
- 1 BT253 board 1 Serial ATA data with power cable: A81-002008-000G 1 Heat spreader: A31-030022-200G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
- DFI Complete Product line based on the latest Intel Atom Processor E3800 Product Family (VIDEO)
- DFI Delivers a Total Solution for Smart Healthcare (VIDEO)
- DFI Delivers a Total Solution for Smart Manufacturing (VIDEO)
- BT253 Datasheet (PDF)
- Edge Servers, Industrial Motherboards & Wallmount Rackmount IPC Systems Catalog (PDF)
Technical Documents
Certifications
