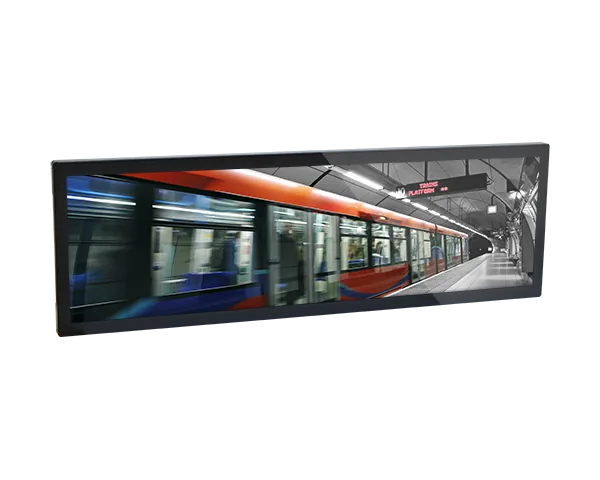

BPC370-BW
BPC370-BW, Bar Type Panel PC & Display with Intel Pentium®/Celeron®, designed with IP65 front panel and high-brightness display which is ideal for advertising/public transportation/commercial buildings applications
- 37" 1920x540 Bar Type Intel Pentium®/Celeron® Panel PC
- 700/1000 nits brightness
- Dual display outputs: VGA + DP++
- VESA mount (400x200)
- Rich I/O: 2 LAN, 2 COM, 4 USB 3.0
- 15-Year CPU Life Cycle Support Until Q1' 30 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#IoT
#Intel
#Mini PCIe
#Fanless Design
#IP65 Front Panel Protection
#Windows
#Linux
#VGA
#DP
#High Brightness
#DDR3L
#Low Power Consumption
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- 37" 1920x540 Bar Type Intel Pentium®/Celeron® Panel PC
- 700/1000 nits brightness
- Dual display outputs: VGA + DP++
- VESA mount (400x200)
- Rich I/O: 2 LAN, 2 COM, 4 USB 3.0
- 15-Year CPU Life Cycle Support Until Q1' 30 (Based on Intel IOTG Roadmap)
System
- Processor
- Intel® Pentium®/Celeron® Processor N3000 Family, BGA 1170 Intel® Pentium® Processor N3710, Quad Core, 2M Cache, 1.6GHz (2.56GHz), 6W
- Memory
- One 204-pin SODIMM up to 8GB (4GB DDR3L memory by default) Single Channel DDR3L 1600MHz
- BIOS
- Insyde SPI 64Mbit
Display and Touch Screen
- Display
- 37” 1920x540 TFT LCD Panel
- Brightness
- 700 cd/m² (1000 cd/m² available upon request)
- Contrast
- 4000:1
- Backlight Lifetime
- 70,000 hours
Graphics
- Controller
- Intel® HD Graphics
- Feature
- OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0 HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4 HW Encode: H.264, MPEG2, MPEG4
- Display
- 1 x VGA 1 x DP++ VGA: resolution up to 2560X1600 @ 60Hz DP: resolution up to 3840x2160 @ 30Hz or 2560x1600 @ 60Hz
- Dual Displays
- VGA + DP++
Storage
- External/Internal
- 1 x Full-size Mini PCIe (mSATA)
Expansion
- Interface
- 1 x Half-size Mini PCIe (PCIe/USB) 1 x SIM (available upon request)
Audio
- Audio Codec
- Realtek ALC888S-VD2-GR
Ethernet
- Controller
- 2 x Intel® I211AT PCIe (10/100/1000Mbps)
LED
- Indicators
- 1 x Power LED

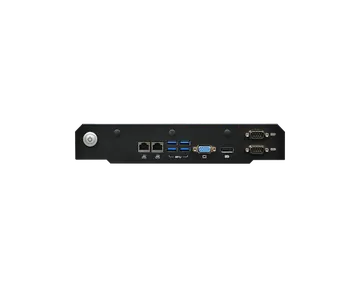

Bottom I/O
- Ethernet
- 2 x GbE (RJ-45) (10/100/1000Mbps)
- Serial
- 2 x RS-232/RS422/RS485 (DB-9)
- USB
- 4 x USB 3.0 (type A)
- Display
- 1 x VGA 1 x DP++
- Audio
- Speaker 2W+2W (available upon request)
- Buttons
- 1 x Power Button
- Antenna Connectors
- 3 x Antenna Hole for Wi-Fi or Cell Module
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- AC Input 110V ~ 240V

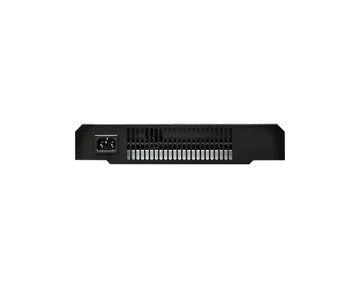

- Connector
- C14 Power Inlet
OS Support
- OS Support
- Windows 7 (32/64-bit) Windows 8.1 (64-bit) Windows 10 IoT Enterprise (32/64-bit) Linux
Environment
- Operating Temperature
- -5 to 50°C
- Storage Temperature
- -10 to 65°C
- Relative Humidity
- 5 to 95% RH (non-condensing)
Mechanism
- Construction
- Sheet Metal
- IP Rating
- IP65 Front Protection Glass (available upon request)
- Mounting
- VESA Mount
- Dimensions (W x H x D)
- 948.1mm x 305.1mm x 75.3mm
- Weight
- 11.15 kg
Standards and Certifications
- Shock
- Non-OP: Half-sine, 5G @ 11ms
- Vibration
- Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min
- Certifications
- CE, FCC (to be applied)
Packing List
- Packing List
- 1 BPC370-BW Panel PC Note: Please choose "BPC370-BW product page > Download button" to download the Driver and Manual.
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| BPC370-BWN3710 | 750-BC3700-000G | 37" Bar Type Panel PC, Intel® Pentium® N3710, 700 nits, 4GB Memory, 32GB mSATA, RoHS |
| BPC370-BWN3710 | 750-BC3700-100G | 37" Bar Type Panel PC, Intel® Pentium® N3710, 700 nits, 4GB Memory, 32GB mSATA, Speaker 2W+2W, RoHS |
| BPC370-BWN3710 | 750-BC3700-200G | 37" Bar Type Panel PC, Intel® Pentium® N3710, 1000 nits, 4GB Memory, 32GB mSATA, RoHS |
| BPC370-BWN3710 | 750-BC3700-300G | 37" Bar Type Panel PC, Intel® Pentium® N3710, 1000 nits, 4GB Memory, 32GB mSATA, Speaker 2W+2W, RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| Wi-Fi | 761-110091-000G | Wi-Fi kit, RoHS |
| Power Cord | 785-PWRD | Power cord, Standards (USA/EUR/CH), 1.8m, RoHS |
