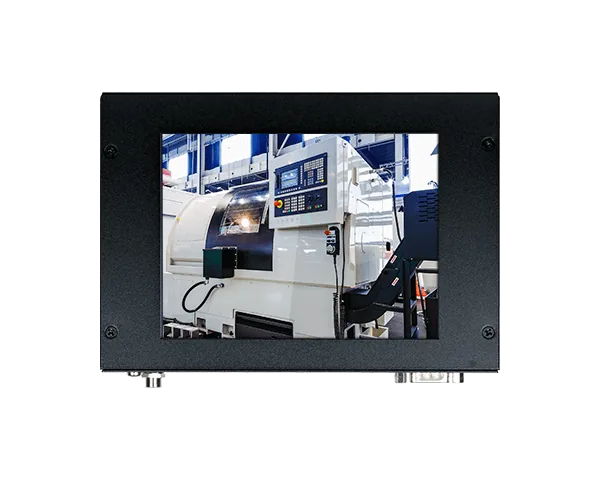

KS057R-FS
5.7" Light Industrial Touch Panel PC, NXP i.MX 6, 2 COM, 2 LAN
- 5.7" 640x480 TFT LCD panel with touch screen
- NXP Cortex-A9 i.MX6 DualLite 1.0 GHz
- Support Wall / Din-rail Mounting
- PLC Polling Device
- 15-Year CPU Life Cycle Support Until Q4' 27 (Based on NXP Roadmap)
Főbb jellemzők
Tanúsítványok
#NXP i.MX6 Series
#NXP
#ARM
#Mini PCIe
#Fanless Design
#Compact Size
#Android
#HDMI
#Low Power Consumption
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- 5.7" 640x480 TFT LCD panel with touch screen
- NXP Cortex-A9 i.MX6 DualLite 1.0 GHz
- Support Wall / Din-rail Mounting
- PLC Polling Device
- 15-Year CPU Life Cycle Support Until Q4' 27 (Based on NXP Roadmap)
System
- Processor
- NXP i.MX6 Cortex-A9 DualLite, 1.0 GHz
- Memory
- 1GB SDRAM Memory Down
- Flash
- 4MB NOR Flash
Display and Touch Screen
- Display
- 5.7” 640x480 TFT LCD Panel with Resistive Touch Screen
- Brightness
- 400 cd/m²
- Contrast
- 800:1
- Backlight Lifetime
- 50,000 hours
Graphics
- Display
- 1 x HDMI HDMI 1.4: resolution up to 1920x1080 @ 60Hz
- Single/Dual Displays
- Yocto: HDMI or LVDS (default) Android: HDMI(640 x 480) + LVDS (available upon request)
Storage
- External
- 1 x Micro SD Slot
- eMMC
- 8GB eMMC onboard
Expansion
- Interface
- 1 x Full-size Mini PCIe (PCIe/USB)
Ethernet
- Controller
- 1 x ATHEROS AR8033 Ethernet Controller (10/100/1000Mbps) 1 x LAN7500 Ethernet Controller (10/100/1000Mbps)

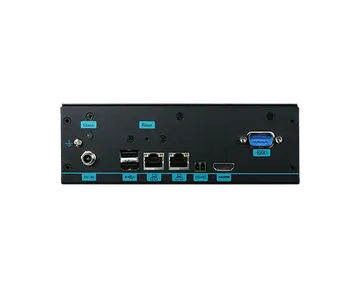

I/O
- Ethernet
- 2 x GbE (RJ-45) (10/100/1000Mbps)
- Serial
- 1 x RS-485 1 x RS-232
- USB
- 2 x USB 2.0 (type A)
- Display
- 1 x HDMI
- Buttons
- 1 x Reset Switch
- Antennas
- 2 x Wi-Fi Module Antenna Hole
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- 12V DC
- Connector
- DC Jack
OS Support
- OS Support
- Yocto 1.8 (default preloaded on eMMC) Android 5.1.1 (available upon request)
Environment
- Operating Temperature
- -20 to 60°C With Extended Temperature Peripherals; Ambient with Air Flow
- Storage Temperature
- -30 to 80°C
- Relative Humidity
- 5 to 90% RH (non-condensing)
Mechanism
- Dimensions
- 170.2mm x 121mm x 57.5mm
- Construction
- Sheet Metal
- IP Rating
- IP20 Front Panel Protection
- Mounting
- Wall, Din-rail
- Weight
- 1.05kg
Standards and Certifications
- Shock
- OP: Half-sine, 3G @ 11ms Non-OP: Half-sine, 5G @ 11ms
- Vibration
- OP: Random, 1Grms @ 5~500Hz, 30min Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min
- Certifications
- CE, FCC Class A, UKCA
Packing List
- Packing List
- 1 KS057R-FS Touch Panel PC 1 Poron foam 2 Wall Mount Bracket
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| KS057R-FSD12-MX6-V2 | 750-KS0570-100G | 5.7" Panel PC, i.MX6, 1GB Memory, 8GB eMMC, Resistive Touch |
| Item Name | Part Number | Description |
|---|---|---|
| Wi-Fi | 761-AP1235-000G | Wi-Fi kit, RoHS |
| Power Cord | 785-PWRD | Power cord, Standards (USA/EUR/CH), 1.8m, RoHS |
| Power Adapter | 671-106012-000G | 60W, 12V/5A, Level 6, RoHS |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
