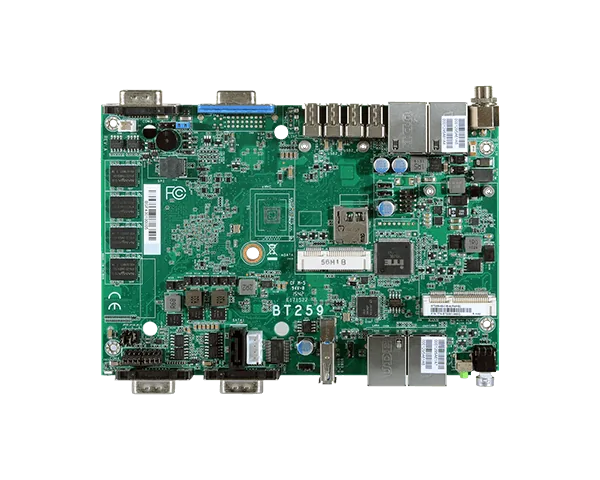

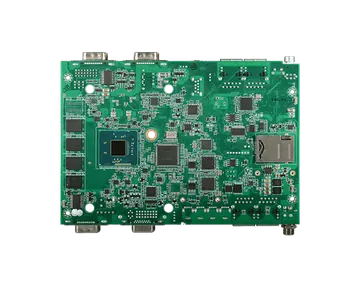

BT259
DFI's embedded SBC board provides the most popular ones with different attributes and scales: 4" SBC, Intel Atom® Processor E3800, 2GB/4GB DDR3L, 2 Mini PCIe, 1 VGA or 1 DVI-I
- Intel Atom® Processor E3800 4" SBC
- 2GB/4GB DDR3L memory down
- 1 VGA or 1 DVI-I (option)
- Expansion: 2 Mini PCIe
- Rich I/O: 4 Intel GbE, 3 COM, 1 USB 3.0, 5 USB 2.0
Főbb jellemzők
Tanúsítványok
#Intel
#Mini PCIe
#Windows
#Linux
#DVI-I
#VGA
#DDR3L
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- Intel Atom® Processor E3800 4" SBC
- 2GB/4GB DDR3L memory down
- 1 VGA or 1 DVI-I (option)
- Expansion: 2 Mini PCIe
- Rich I/O: 4 Intel GbE, 3 COM, 1 USB 3.0, 5 USB 2.0
System
- Processor
- Intel® Atom™ E3845, Quad Core, 2M Cache, 1.91GHz, 10W Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W BGA 1170 packaging technology 22nm process technology
- Memory
- 4GB Memory onboard (E3845) Single Channel DDR3L 1333MHz 2GB Memory onboard (J1900) Single Channel DDR3L 1066MHz
- BIOS
- AMI SPI 64Mbit
Graphics
- Controller
- Intel® HD Graphics 4600
- Display
- 1 VGA/ 1 DVI-I (available upon request) DVI: resolution up to 1920x1080 @ 60Hz VGA: 24-bit, resolution up to 2560x1600 @ 60Hz
Expansion
- Interface
- 2 x Full-size Mini PCIe ( PCIe, USB, and 3G signals for 3G or GPRS module)
Ethernet
- Controller
- 4 x Intel® I210 PCI Express (10/100/1000Mbps)
LED
- Indicators
- 1 x status LED 1 x HDD LED

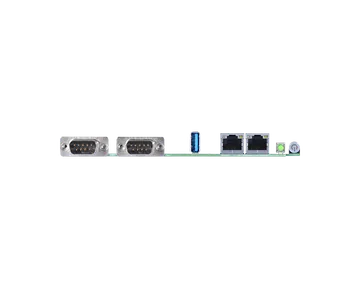

Front I/O
- Ethernet
- 2 x GbE (RJ-45)
- Serial
- 1 x RS232/422/485
- USB
- 1 x USB 3.0 (Type A)
- DIO
- 1 x 8-bit DIO
- Buttons
- 1 x reset button 1 x power button

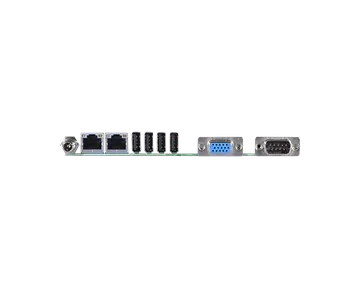

Rear I/O
- Ethernet
- 2 x GbE (RJ45)
- Serial
- 1 x RS232/422/485
- USB
- 4 x USB 2.0
- Display
- 1 VGA/ 1 DVI-I (available upon request)
Internal I/O
- USB
- 2 x USB 2.0
- SATA
- 1 x SATA 2.0 1 x SATA Power
- DIO
- 1 x 8-bit DIO
Watchdog Timer
- Output & Interval
- Watchdog timeout programmable via software from 1 to 255 seconds
Security
- TPM
- Available Upon Request
Power
- Type
- 16~24V
- Connector
- DC-in jack
- Consumption
- BT259-45-I-B-4: 21.8W with E3845 at 1.91GHz and 4GB DDR3L memory down
OS Support
- OS Support
- Windows 7, WES 7, Windows 8.1, WES 8 Linux Note: Windows 10 will be available upon request. Please contact DFI for more information.
Environment
- Temperature
- Operating: 0°C~60°C Storage: -20°C~85°C
- Humidity
- Operating: 5% to 90% RH Storage: 5 to 90% RH
Mechanism
- Dimensions
- 4" board 165mm (6.49") x 115mm (4.53")
- Height
- PCB: 1.6mm Top Side: 16.5mm Bottom Side: 2mm
Standards and Certifications
- Certifications
- CE, FCC Class B, RoHS
Packing List
- Packing List
- 1 BT259 board 1 Serial ATA data with power cable: A81-002008-000G 1 Heat spreader: A31-030022-200G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| BT259-45-I-B-4 | Fanless, Intel® Atom™ E3845, 4GB DDR3L SODIMM, 3 COM, 0°C to 60°C | |
| BT259-19-I-B-2 | Fanless, Intel® Celeron® J1900, 2GB DDR3L SODIMM, 3 COM, 0°C to 60°C |
| Item Name | Part Number | Description |
|---|---|---|
| USB port cable | A81-001032-016G | |
| Power adapter | 671-112009-100G | 120W, 19V |
