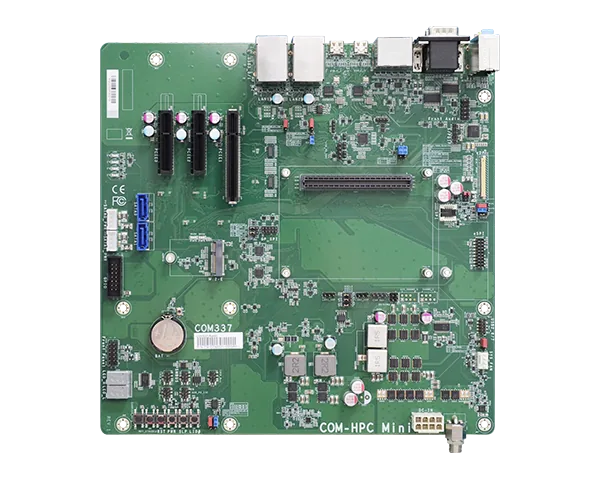

COM337
microATX, COM HPC Mini Carrier Board, 2 DP++, eDP, 1 PCIe x8, 2 PCIe x4, 1 M.2 E Key 2230, 2 2.5 GbE, 4 USB 3.2, 2 USB4 (Type-C), 2 SATA 3.0
- COM HPC Mini Carrier Board
- Multiple Displays: 2 DP++, eDP
- Multiple Expansion: 1 PCIe x8, 2 PCIe x4, 1 M.2 E Key 2230
- Rich I/O: 2 2.5 GbE, 4 USB 3.2, 2 USB4 (Type-C)
- microATX form factor
Főbb jellemzők
Tanúsítványok
#eDP
#M.2
#DP
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
#2.5G Ethernet
Főbb jellemzőkKey features
- COM HPC Mini Carrier Board
- Multiple Displays: 2 DP++, eDP
- Multiple Expansion: 1 PCIe x8, 2 PCIe x4, 1 M.2 E Key 2230
- Rich I/O: 2 2.5 GbE, 4 USB 3.2, 2 USB4 (Type-C)
- microATX form factor
Graphics
- Display
- 2 x DP++ 1 x eDP
Expansion
- Interface
- 1 x PCIe x8 2 x PCIe x4 1 x M.2 E Key 2230
Audio
- Audio Codec
- Realtek ALC888S-VD2-GR

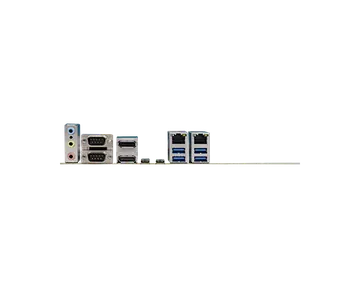

I/O
- Ethernet
- 2 x 2.5 GbE (RJ-45)
- Serial
- 2 x DB9 (4-wires UART 0/1)
- USB
- 2 x USB4 Type-C (co-layout w/USB3.2, available upon request) 4 x USB 3. 2 (Gen 2)
- Display
- 2 x DP
- Audio
- 1 x Line-in 1 x Line-out 1 x Mic-in
Internal I/O
- Display
- 1x eDP LCD Panel Connector
- Audio
- 1 x Audio (Line-out/Mic-in) 1 x S/PDIF
- SATA
- 2 x SATA 3.0 (up to 6Gb/s) 2 x SATA Power
- DIO
- 1 x 12-bit DIO
- SMBus
- 1 x SMBus
- CANBus
- 1 x CAN bus
- I2C
- 2 x I2C
- Fan
- 1 x SYS_FAN (SmartFan support)
- eSPI
- 1 x eSPI
- GP SPI
- 1 x GP_SPI
- SPI
- 1 x SPI
Power
- Type
- 1x 8-pin ATX power connector (12V DC_In) 8.5V-20V DC in jack
- Connector
- 1 x 8-pin ATX power connector 1 x DC-in jack
- RTC Battery
- CR2032 Coin Cell
Environment
- Temperature
- Operating: -40 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- TBD
Mechanism
- Dimensions
- microATX Form Factor 244mm (9.6") x 244mm (9.6")
- Compliance
- PICMG® COM-HPC® R1.3
Standards and Certifications
- Certifications
- CE, FCC, RoHS
Packing List
- Packing List
- • 1 COM337 board
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| COM337 | 770-CM3371-000G | 2 2.5GbE, 4 USB 3.2, 2 DP++, ATX/AT Power, -40 to 85°C |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
