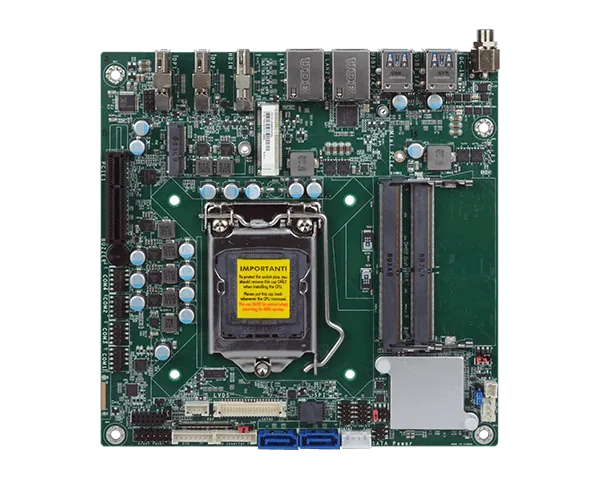

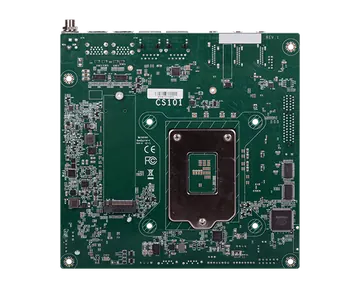

CS101-Q370/C246

Mini-ITX, 8th Gen Intel® Core™, 2 DDR4 SODIMM, 1 PCIe x4, 1 Mini PCIe, 1 M.2 M Key, 1 M.2 E Key, 1 LVDS, 1 HDMI, 2 DP++

  • 9th/8th Gen Intel® Core™ with Intel®Q370/C246
  • 2 DDR4 2666MHz SODIMM up to 32GB
  • Three independent displays: DP++ +DP++ +HDMI, DP++ +DP++ +LVDS/eDP, DP++ +HDMI+LVDS/eDP
  • Multiple Expansions: 1 PCIe x4 Gen 3, 1 Full-size Mini PCIe, 1 M.2 2280 M Key, 1 M.2 2230 E Key

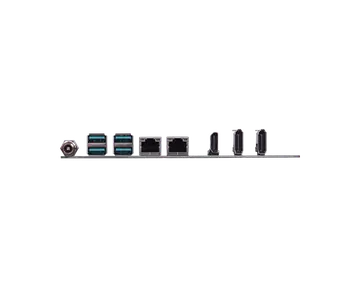

  • Rich I/O: 2 Intel GbE, 4 COM, 4 USB 3.1 Gen 2, 4 USB 2.0
  • DP++ resolution supports up to 4096x2304 @ 60Hz
  • Storage: 2 SATA 3.0
  • 15-Year CPU Life Cycle Support Until Q2' 33 (Based on Intel IOTG Roadmap)
KaphatóLaunched Megvásárlás (US)Buy online (US) Embedded Solution Powered by CS101-Q370/C246 : Embedded Solution Powered by CS101-Q370/C246 : ST102-CSST102-CSDesktop Box PC, 8th/9th Gen Intel® Core™, DDR4, 6 USB, 1 HDMI, 2 DPP+
COM ESD Protection: Air Gap ±15kv
4K2K Display
Windows
Mini PCIe
DDR4
RoHS Certification
UL Certification
CE Certification
FCC Certification
UKCA Certification
#IoT #Intel #Mini PCIe #4K2K Display #Windows #Linux #HDMI #DP #DDR4 #RoHS Certification #UL Certification #CE Certification #FCC Certification #UKCA Certification

Főbb jellemzőkKey features

  • 9th/8th Gen Intel® Core™ with Intel®Q370/C246
  • 2 DDR4 2666MHz SODIMM up to 32GB
  • Three independent displays: DP++ +DP++ +HDMI, DP++ +DP++ +LVDS/eDP, DP++ +HDMI+LVDS/eDP
  • Multiple Expansions: 1 PCIe x4 Gen 3, 1 Full-size Mini PCIe, 1 M.2 2280 M Key, 1 M.2 2230 E Key
  • Rich I/O: 2 Intel GbE, 4 COM, 4 USB 3.1 Gen 2, 4 USB 2.0
  • DP++ resolution supports up to 4096x2304 @ 60Hz
  • Storage: 2 SATA 3.0
  • 15-Year CPU Life Cycle Support Until Q2' 33 (Based on Intel IOTG Roadmap)

Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
